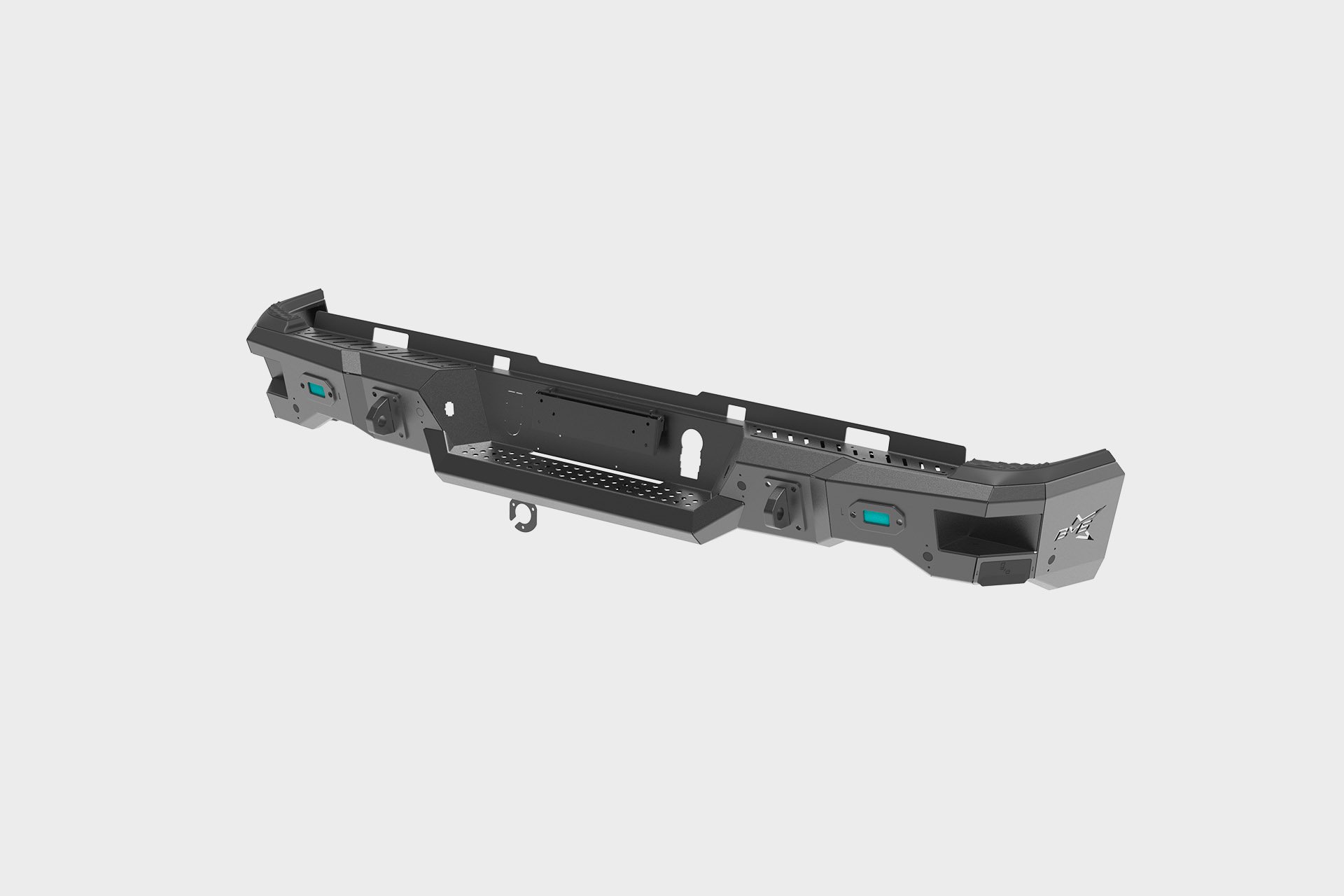

Rear Bumper BMS PRO-Line for RAM RHO 2024–2026

More rear-end protection, better departure clearance, and easier recovery access help the RAM RHO stay better prepared for the places where its off-road capability is most enjoyable.

The RAM RHO is built for fast driving, and not only on pavement. Owners who regularly head outdoors know that off-road travel also means turning around in tight spaces, backing between trees and rocks, and dropping off abrupt changes in terrain. In those situations, the factory rear bumper can be vulnerable to accidental contact. A stronger rear bumper lets owners use the RHO more confidently on rough routes and can also provide additional protection during everyday driving and minor parking-lot contact.

The BMS PRO-Line steel rear bumper is better suited to those demands. Its steel construction is stronger than the factory plastic bumper, while improved departure clearance helps the truck catch the ground less often when descending obstacles, crossing sharp terrain changes, or leaving high shoulders. Two external heavy-duty D-ring mounts provide quick access for recovery gear. If a strap or rope does not have a hook, it can be attached to the built-in recovery points using compatible, properly rated shackles.

Installation of the BMS PRO-Line does not require modification of the vehicle. The heavy duty rear bumper includes openings for the factory parking sensors and blind spot sensors, allowing the truck to retain the electronic features owners use every day. The bumper also keeps the tailgate fully functional, while its integrated center step makes it easier to reach into the bed.

The BMS PRO-Line is made for RAM RHO owners who want to build the truck around their own style of travel and recreation without sacrificing its appearance. This aftermarket rear bumper complements the RHO’s powerful proportions and looks like a more capable evolution of the factory design rather than a rough custom modification. It gives the truck the extra strength and function needed for more ambitious trips while keeping the clean, purposeful look that makes the RHO distinctive.

PRODUCT DETAILS:

Manufacturer Part Number: BMS060256
Application: RAM RHO 2024-2026
Installation method: fully bolt on
Mounting kit: included
Features of the complete set: The set includes a heavy duty rear bumper, bolt kit, product passport, certificate of conformity, 2 pcs heavy-duty D-ring mounts, trailer socket bracket, 2 pcs LED lights, 2 pcs license plate lights, license plate frame bracket, 2 pcs blind spot sensor guards, and 2 pcs plastic trim panels
Winch mount: not present; rear winch installation is not supported
Compatible winch: none
Light slots: 2 slots, WxHxD: 109x60x56 mm
Slots for parktronic sensors: present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 200x40x47 cm (78.7×15.7×18.5 in)
Package weight: 32.6 kg (71.9 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 3 mm steel A 620
Brackets material: 4 mm steel A 516-55

FAQ:

Why install a heavy duty rear bumper on a RAM RHO?

A heavy duty rear bumper is most useful when preparing the RAM RHO for off-road travel and active outdoor use. The BMS PRO-Line adds stronger rear-end protection and is better suited to accidental contact with rocks, trees, the ground, and other obstacles than the factory plastic bumper.

Some owners also choose a steel rear bumper for additional protection during everyday driving, including tight parking situations and minor contact in traffic.

How much protection does the BMS PRO-Line provide in an impact?

The BMS PRO-Line steel rear bumper is stronger than the factory plastic bumper and can help reduce damage to the rear of the RAM RHO during accidental contact with rocks, trees, the ground, or another vehicle.

It does not make the truck damage-proof. A serious impact can still deform the bumper or its mounting points and may damage the body or components behind it.

Will the factory parking sensors and blind spot sensors still work?

Yes. The BMS PRO-Line is designed to accommodate the factory parking sensors and blind spot sensors transferred from the original rear bumper.

The required sensor locations are built into the bumper. The systems normally continue to operate after the transfer, although calibration or software adjustment may occasionally be required.

Can I install a winch in the rear bumper?

No. The BMS PRO-Line rear bumper does not include a winch mount and is not designed for rear winch installation.

For rear recovery, the bumper uses external heavy-duty D-ring mounts for attaching recovery gear. If you want a permanently installed winch for self-recovery, the BMS PRO-Line front bumper for the RAM RHO includes a dedicated winch mounting area.

Can I install the BMS PRO-Line rear bumper myself?

Yes, if you have experience with similar installations, the correct tools, and someone to help handle the bumper. Installation does not require cutting or drilling the vehicle, and the necessary mounting hardware is included.

The job also involves transferring the factory parking sensors and blind spot sensors, installing the required lighting, and aligning the bumper correctly. If you are not comfortable with that work, professional installation is recommended.

Is a heavy duty rear bumper useful for remote mountain travel?

Yes, particularly if the route leaves maintained roads for rocky tracks, steep grades, and uneven terrain.

Improved departure clearance helps the RAM RHO catch the rear end less often when descending obstacles or crossing abrupt terrain changes. The steel bumper also provides stronger protection while maneuvering around rocks, and the external heavy-duty D-ring mounts are readily accessible if the truck needs recovery or is helping another vehicle.

If a recovery strap or rope does not have a hook, attach it to the built-in recovery points using compatible, properly rated shackles. Keep recovery loads as straight as possible and use equipment rated for the vehicle and expected load.

How do I protect the bumper coating from corrosion?

The zinc-containing primer and black polymer coating help protect the steel bumper from moisture, dirt, and road exposure. Over time, gravel, sand, winter road chemicals, and off-road use can still chip or scratch the protective finish.

Inspect the bumper periodically, especially after winter driving or gravel-road trips. If the coating is damaged, clean and treat the exposed area and touch up the finish promptly to help prevent corrosion.

Can the BMS PRO-Line rear bumper be used on public roads?

This is an aftermarket rear bumper, and road-use requirements can vary by location. If your RAM RHO is driven on public roads, check local requirements before installation.
