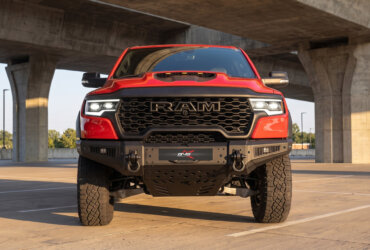

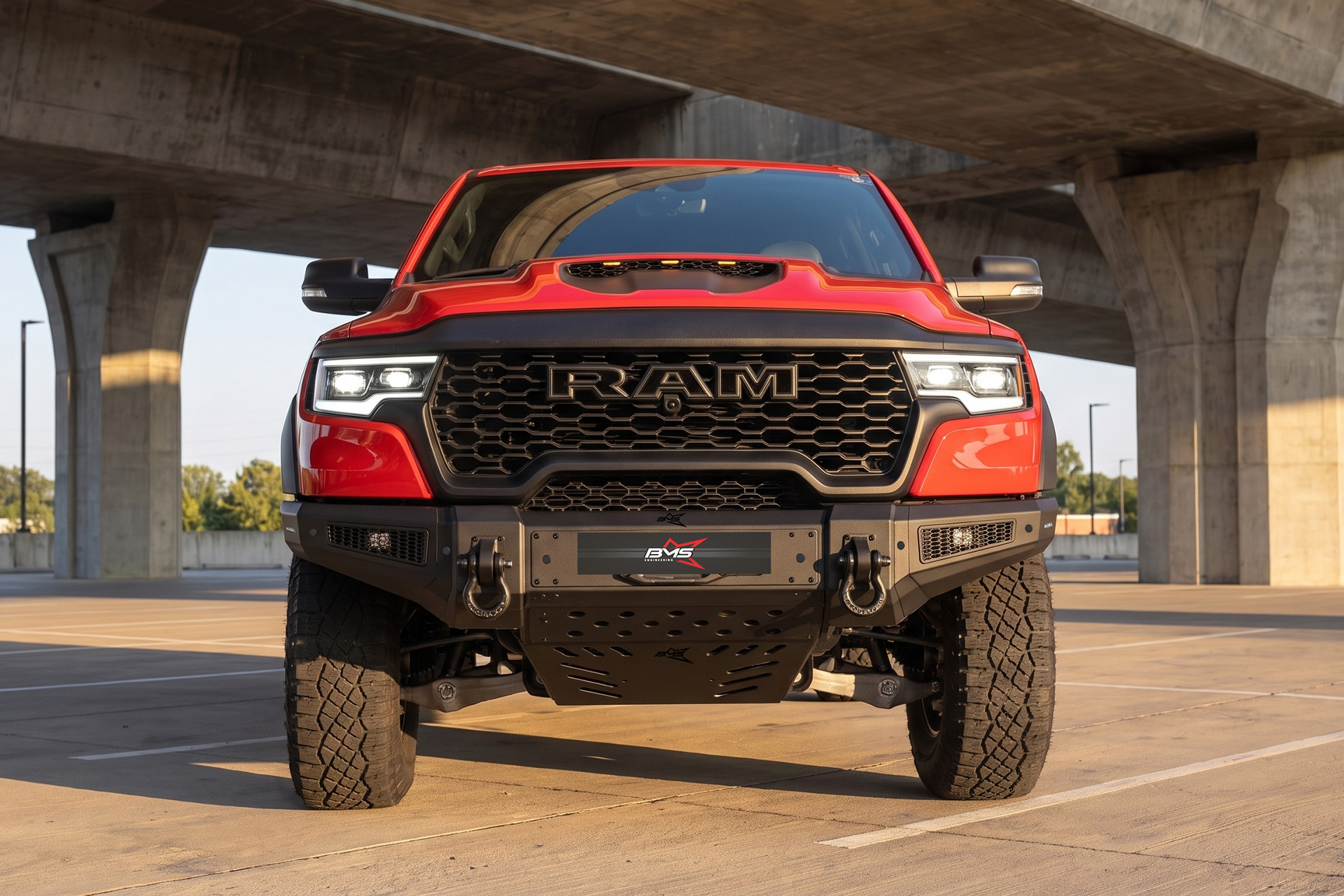

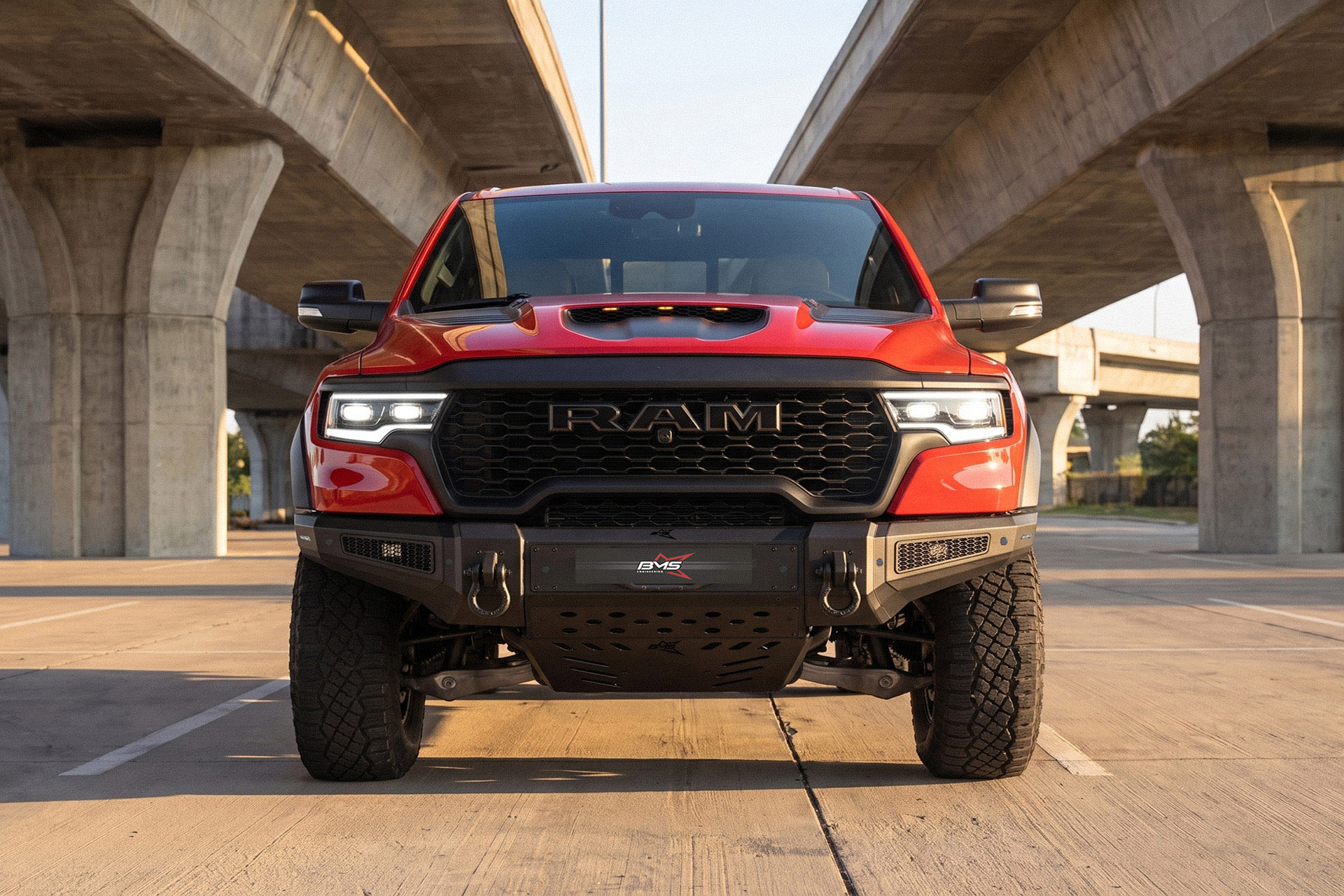

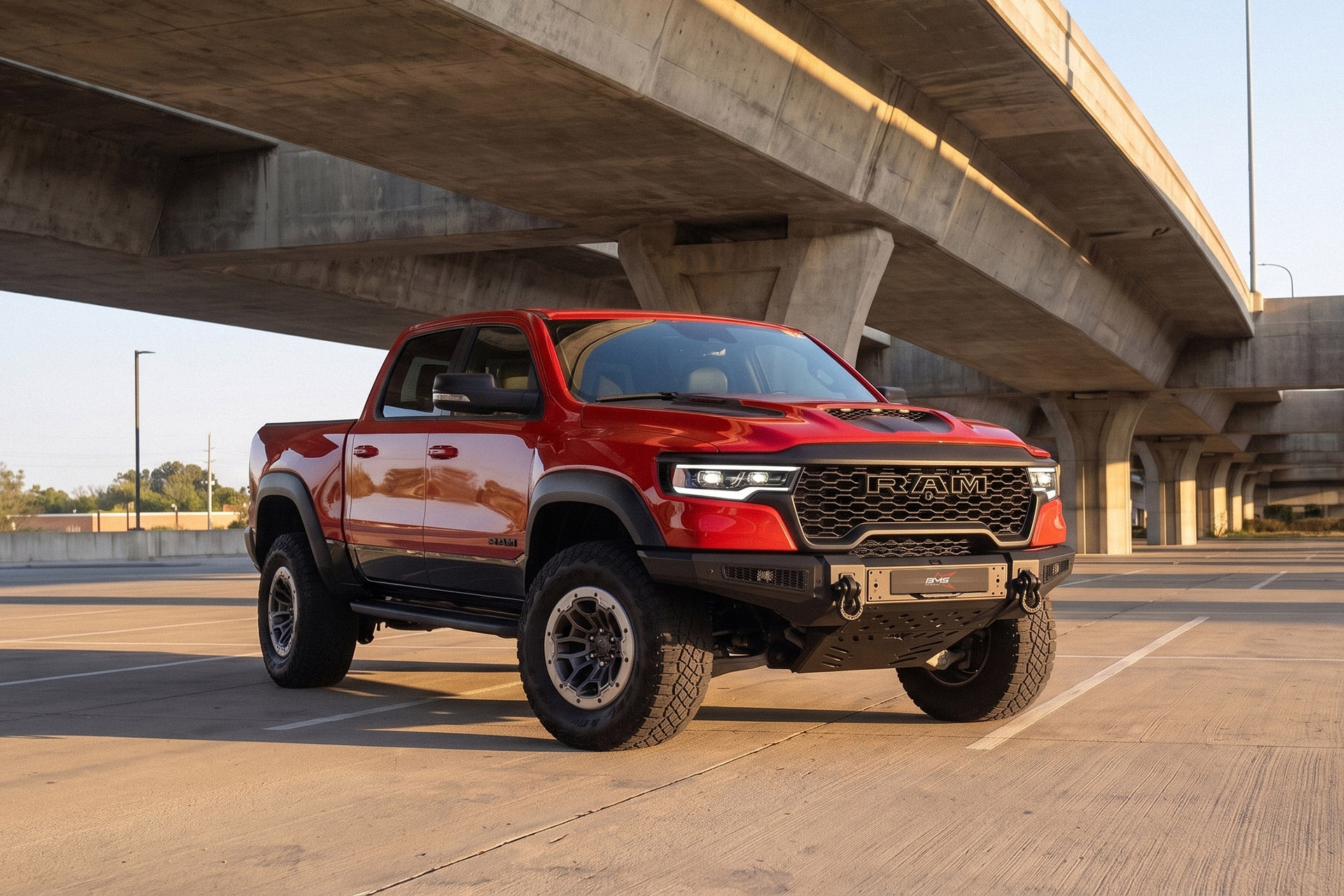

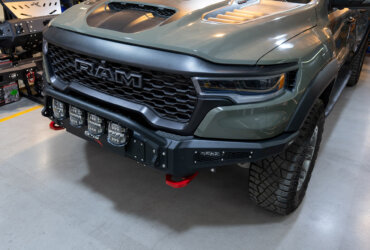

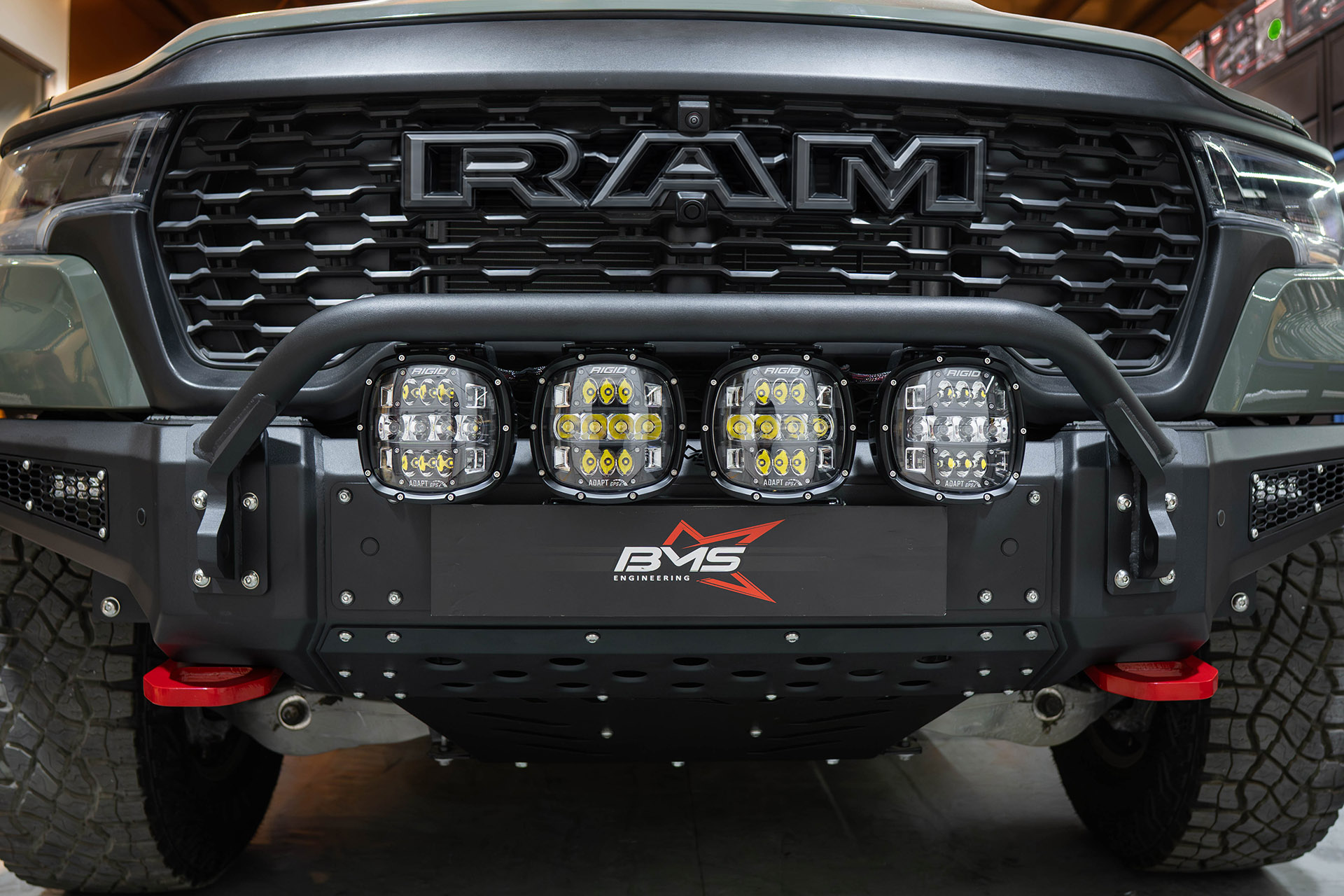

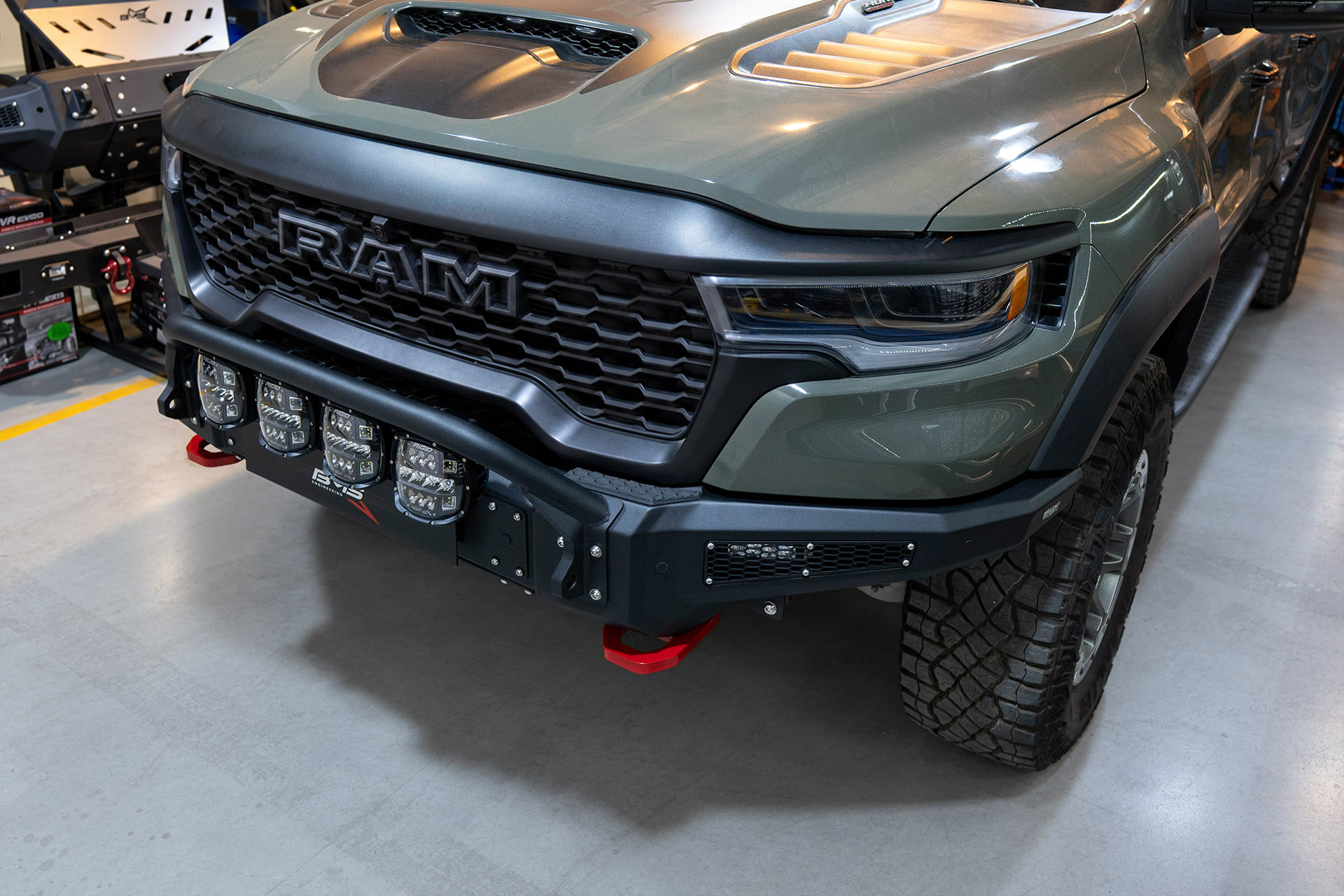

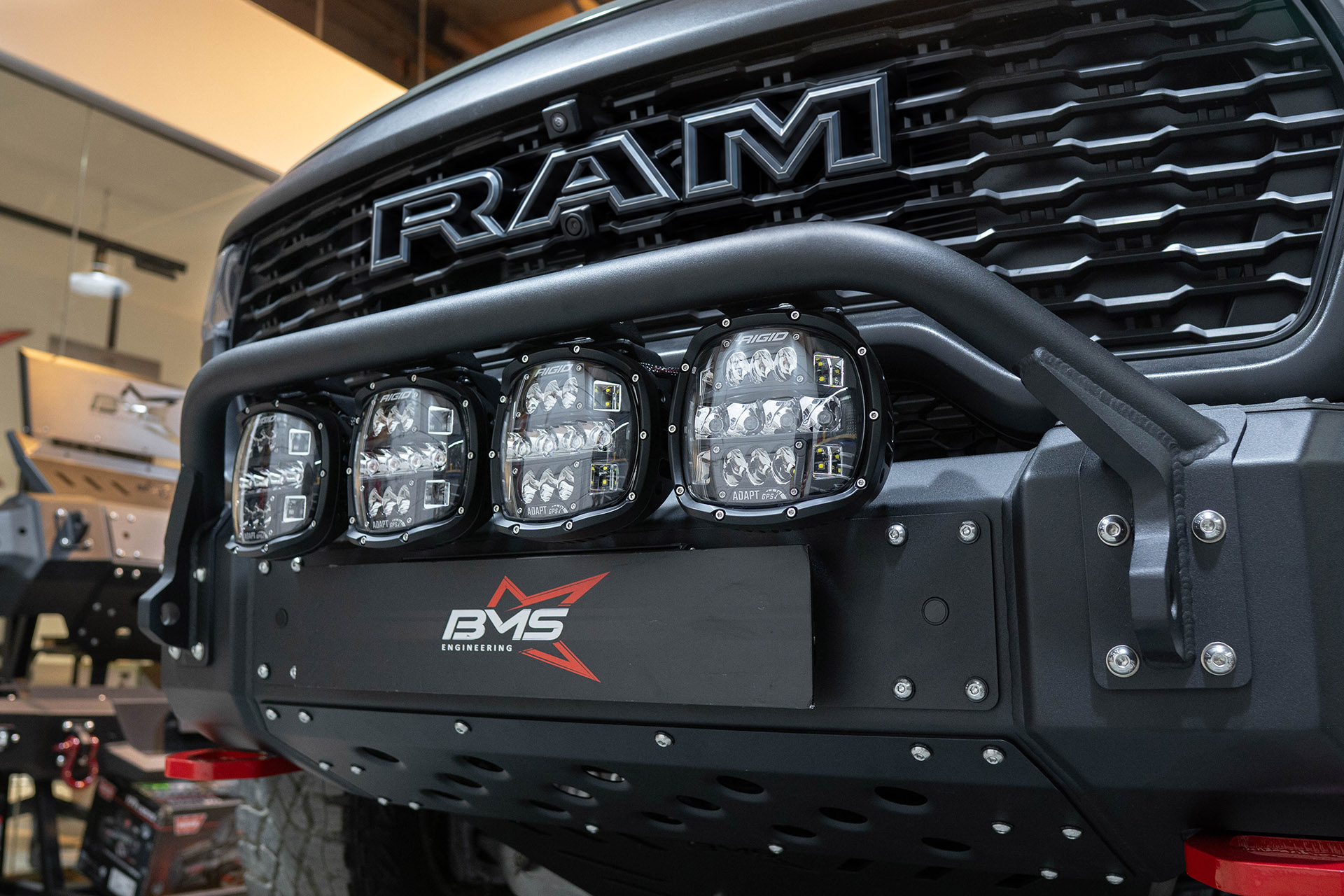

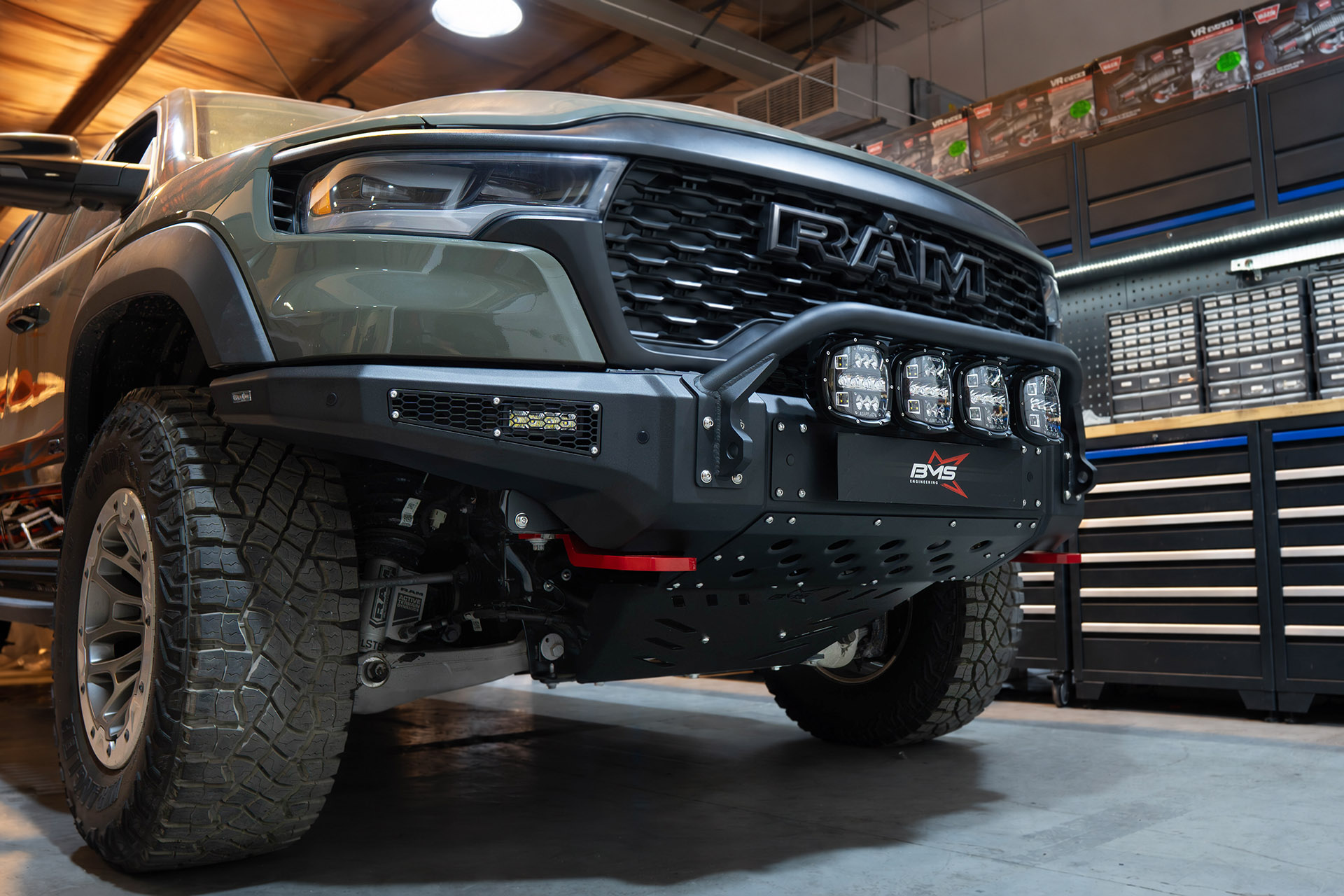

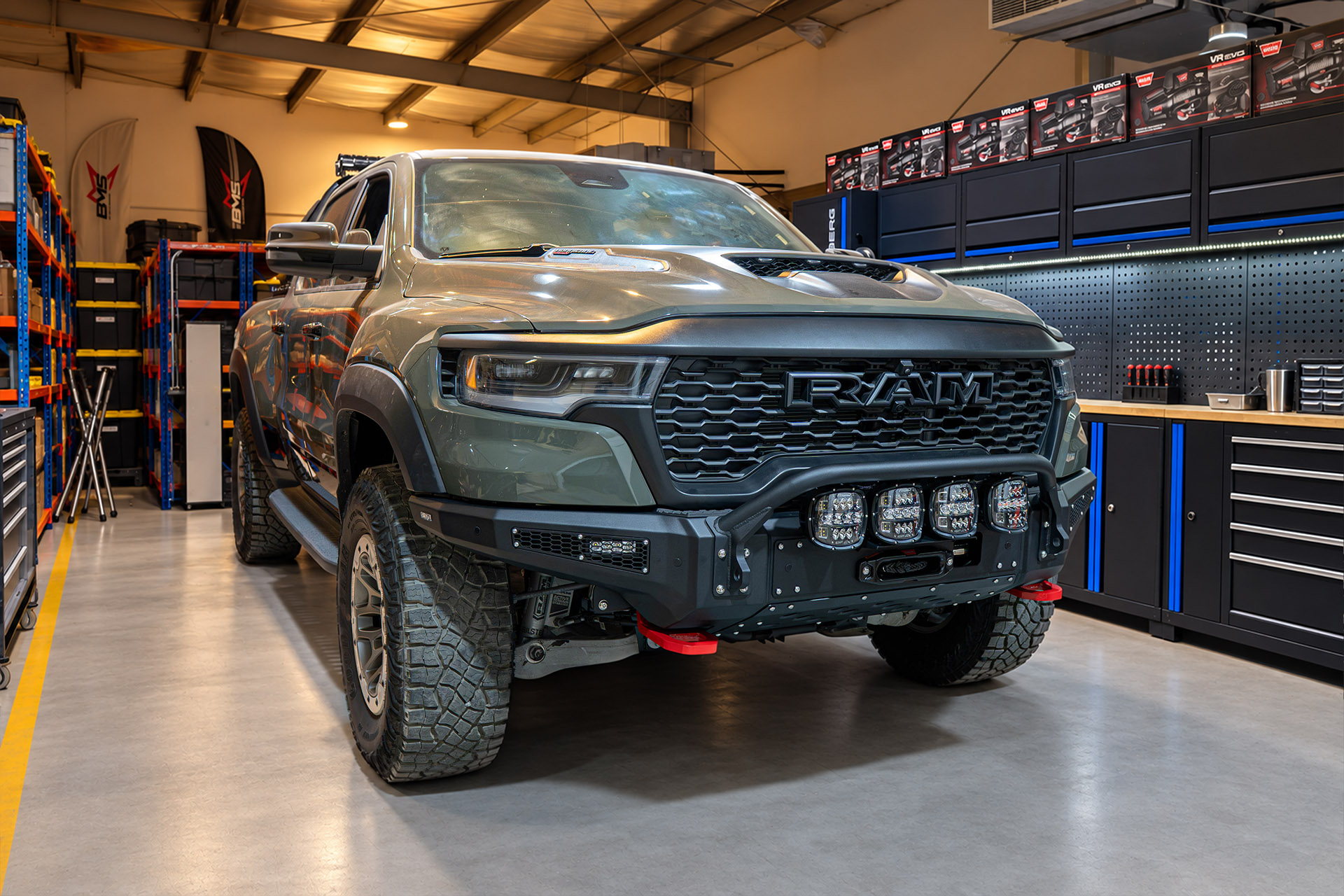

Front Bumper BMS PRO-Line for RAM RHO 2024–2026

Better approach clearance, stronger front-end protection, accessible recovery hardware, and winch-ready capability let the RAM RHO stay better prepared when fast dirt roads turn into genuinely difficult terrain.

The real appeal of the RAM RHO starts where an ordinary vehicle has to slow down. Its power and off-road-focused suspension make it a truck that can cover dirt roads, open terrain, and rough tracks at a good pace instead of simply crawling through them. For owners who use that capability, upgrading the factory front bumper is a natural next step.

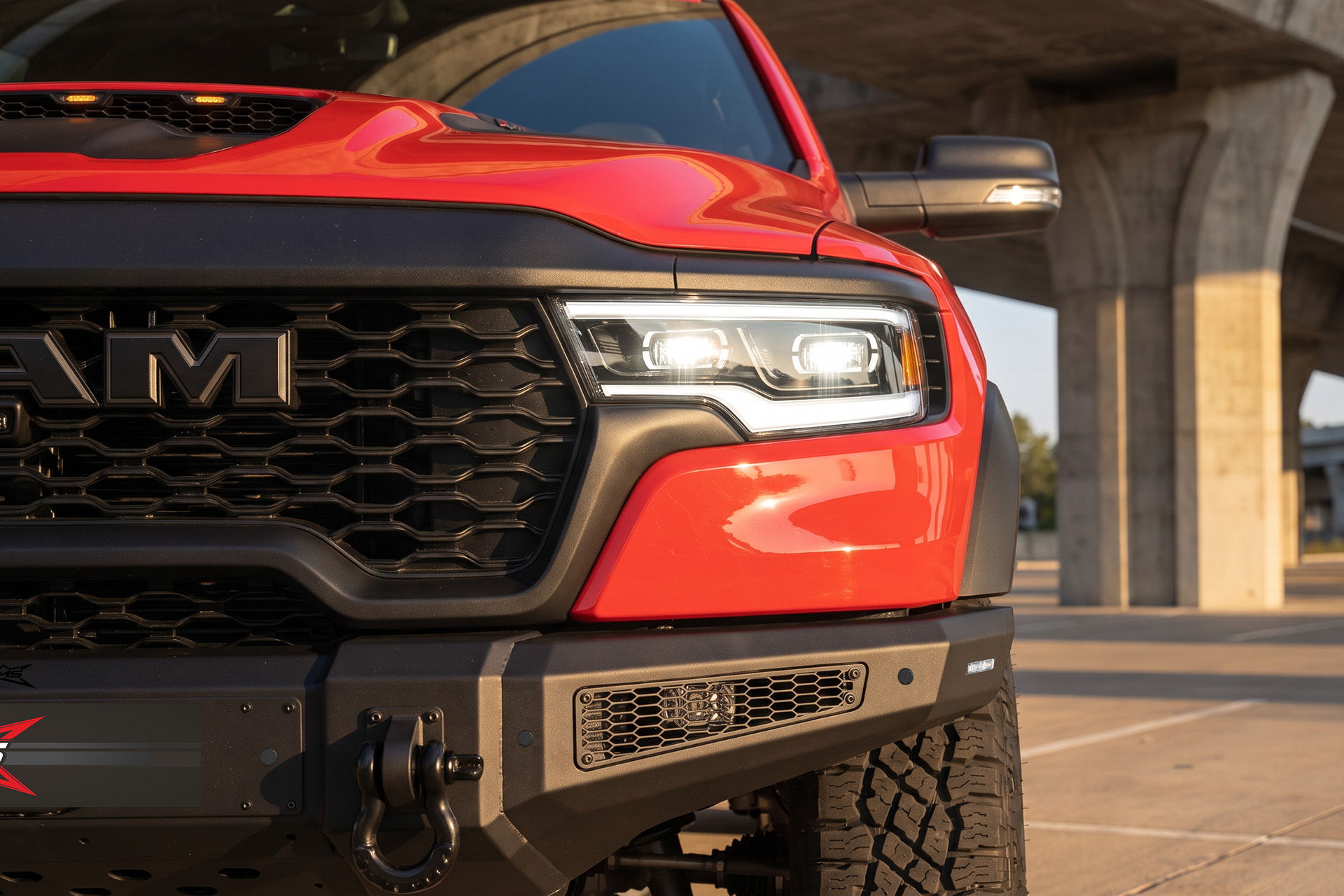

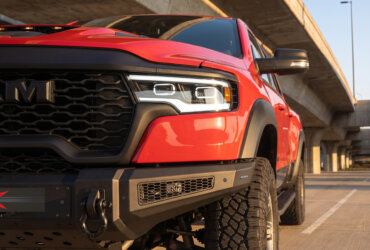

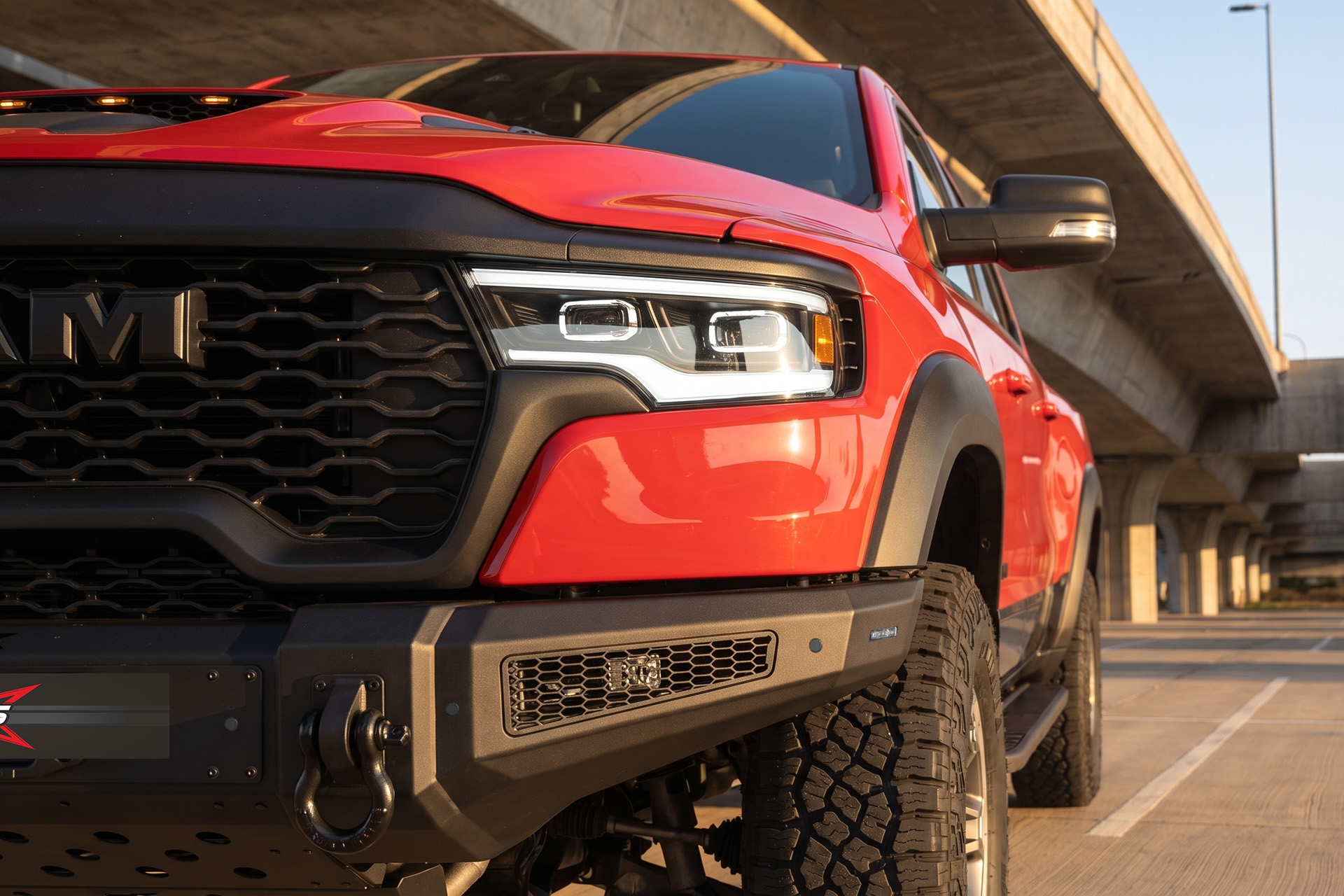

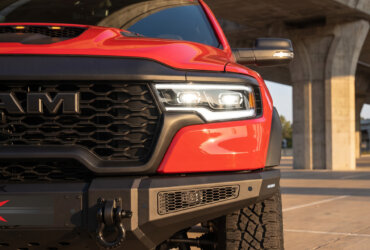

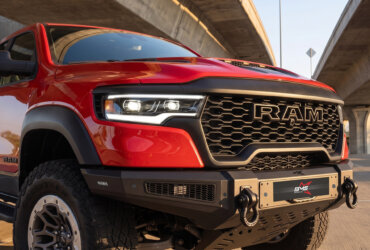

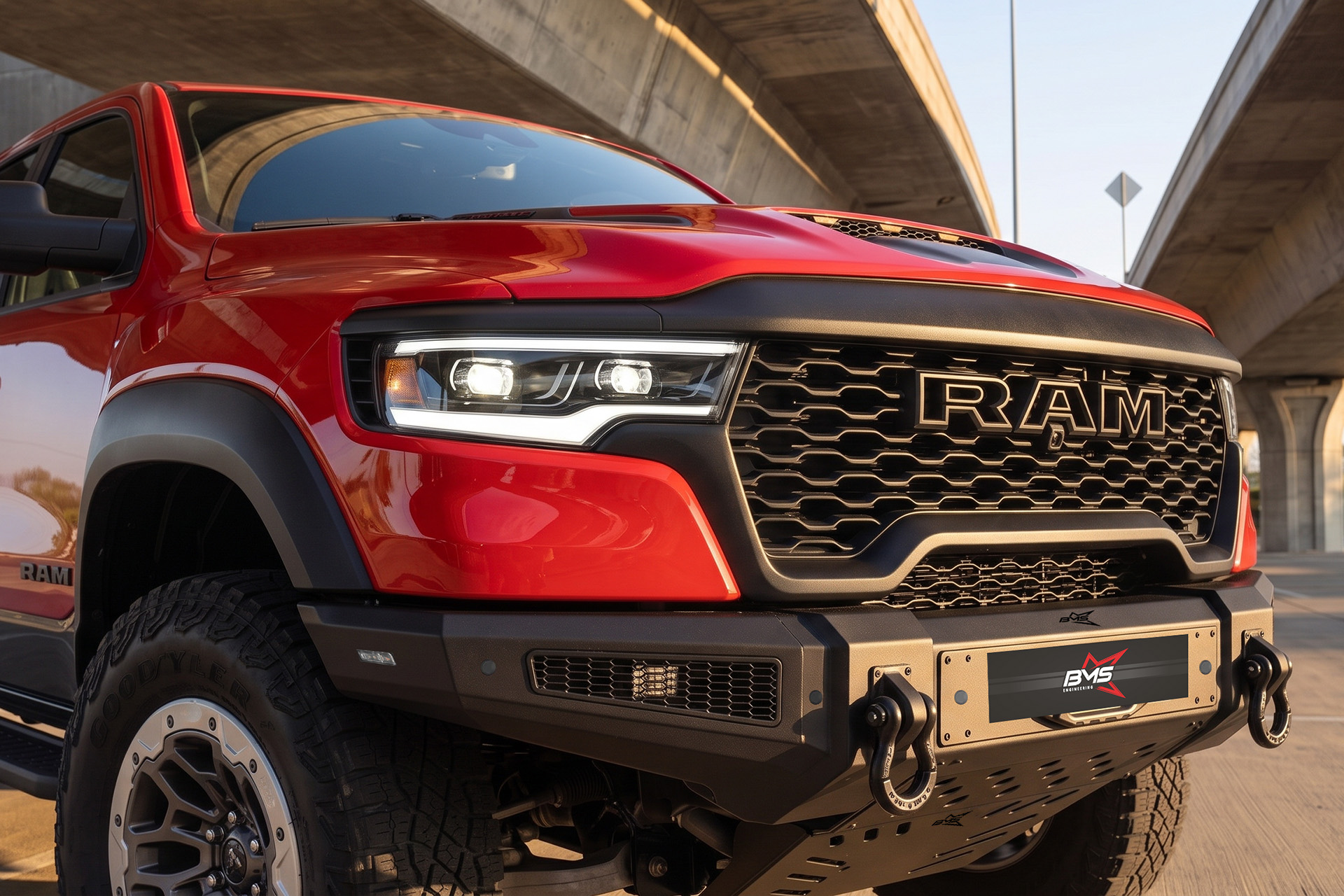

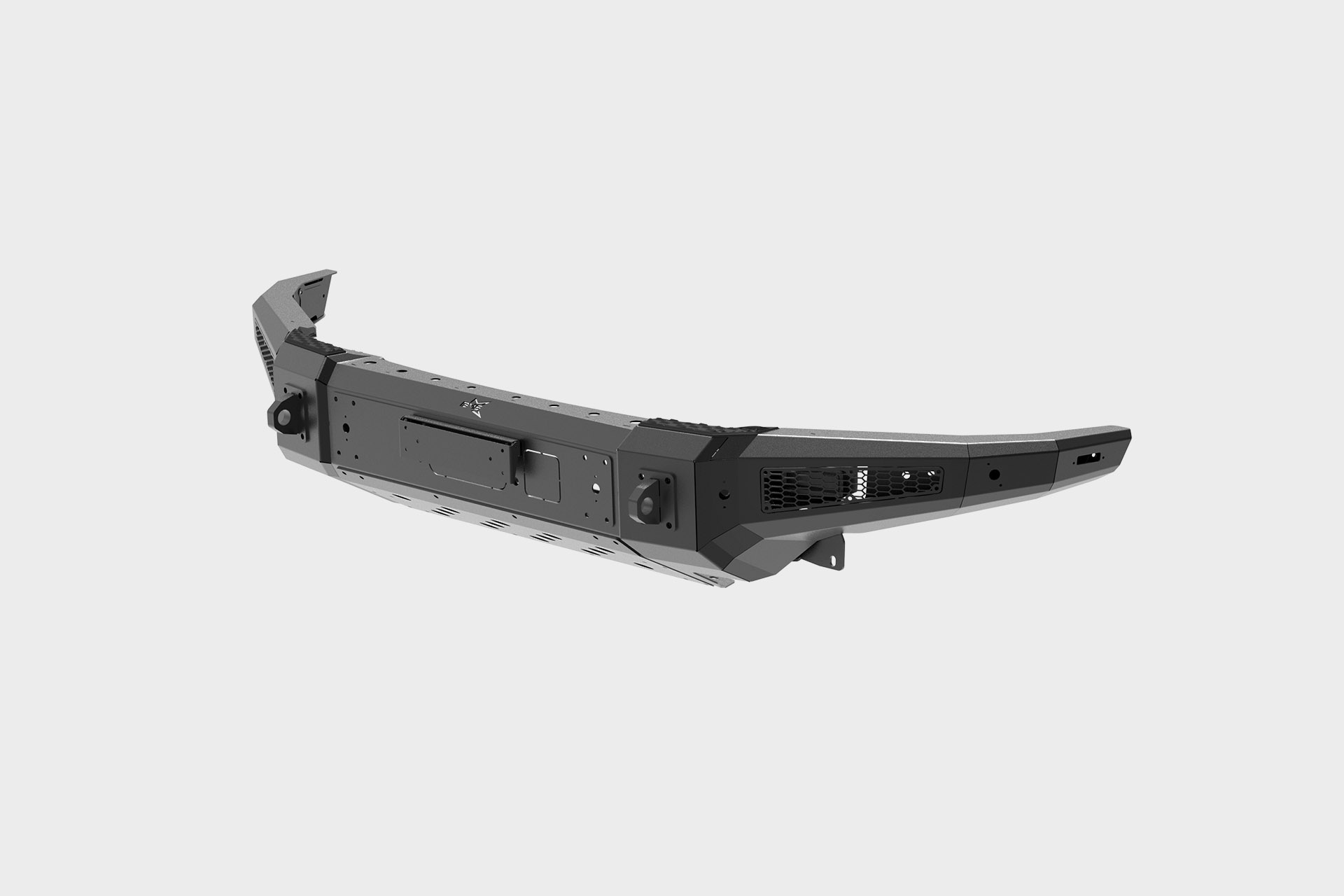

The BMS PRO-Line steel front bumper fits that character well. Steel construction provides more strength than the factory plastic bumper, while the improved approach angle helps the RHO clear ruts, abrupt terrain changes, and steep climbs with less risk of catching the front end. Two external heavy-duty D-ring mounts give quick access for recovery gear when the truck needs assistance. The built-in recovery points can be used with compatible, properly rated shackles when attaching a strap or rope without a hook.

One of the biggest advantages is the built-in winch mount. A winch gives the RHO a serious self-recovery option when the truck is stuck in sand, loose dirt, snow, or a deep rut and there is no other capable vehicle nearby. That makes the BMS PRO-Line more than just additional front-end protection – it adds equipment that can actually help keep the trip moving.

Installation does not require cutting or drilling. The only required change is lidar relocation, and a dedicated lidar relocation bracket is included for that purpose. This keeps the installation clean while preserving the functionality needed for the truck’s driver-assistance systems.

The BMS PRO-Line is a strong fit for RAM RHO owners who care about both off-road function and how the truck looks after the upgrade. It reinforces the RHO’s distinctive design without making it feel like a rough custom build, while adding the protection and recovery capability needed for active use. The result is a truck better adapted to your own routes, hobbies, and memorable trips – even when the road takes you far beyond the pavement.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060209
Application: RAM RHO 2024-2026
Installation method: fully bolt on
Mounting kit: included
Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, product passport, winch mount, winch control box bracket, 2 pcs recovery points, 2 pcs LED lights, license plate frame bracket, LiDAR relocation bracket, front skid plate mounting crossmember, and front skid plate
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues

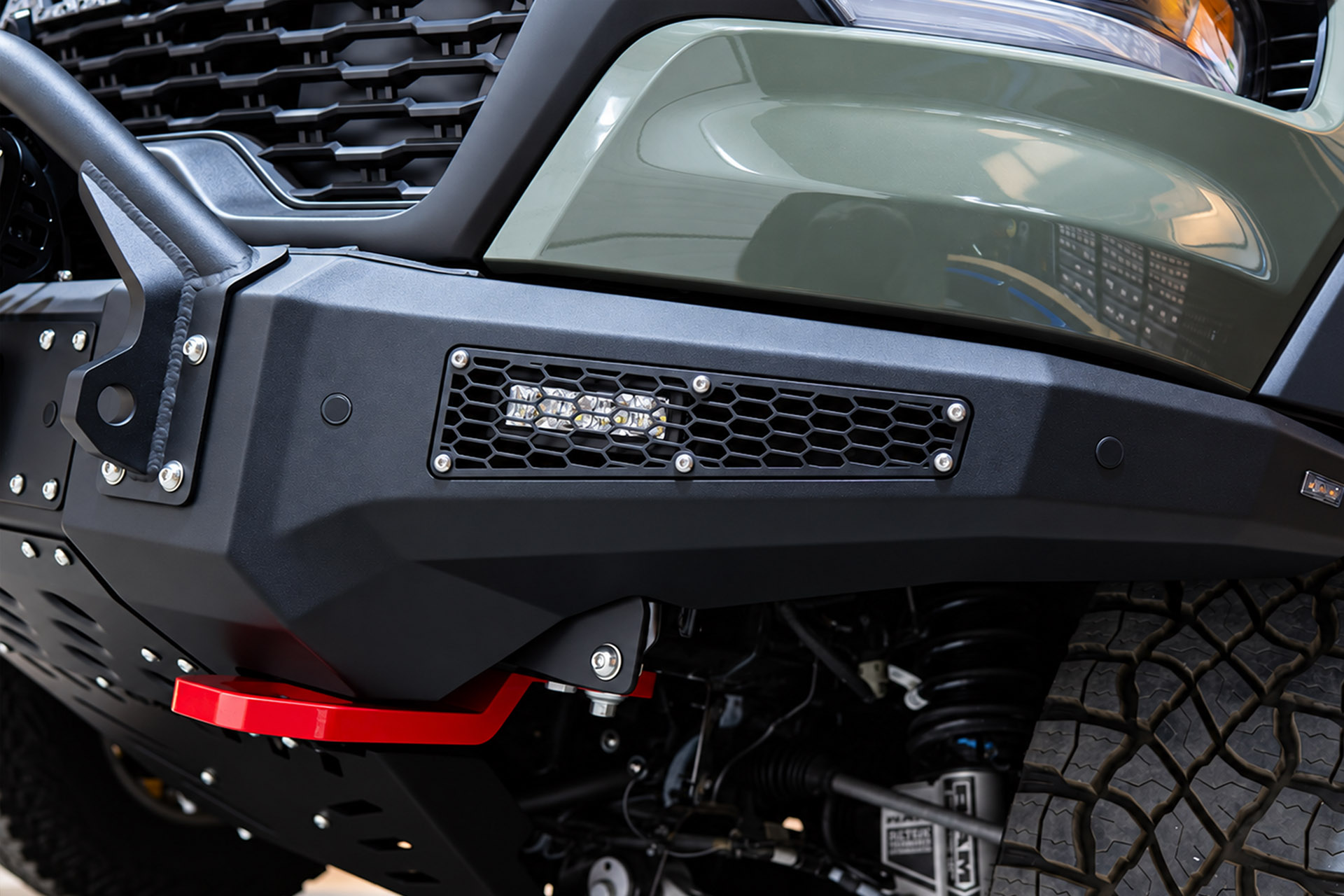

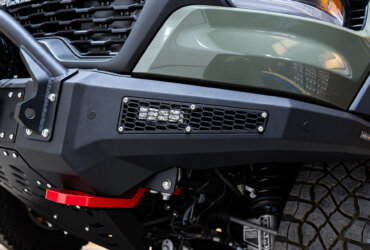

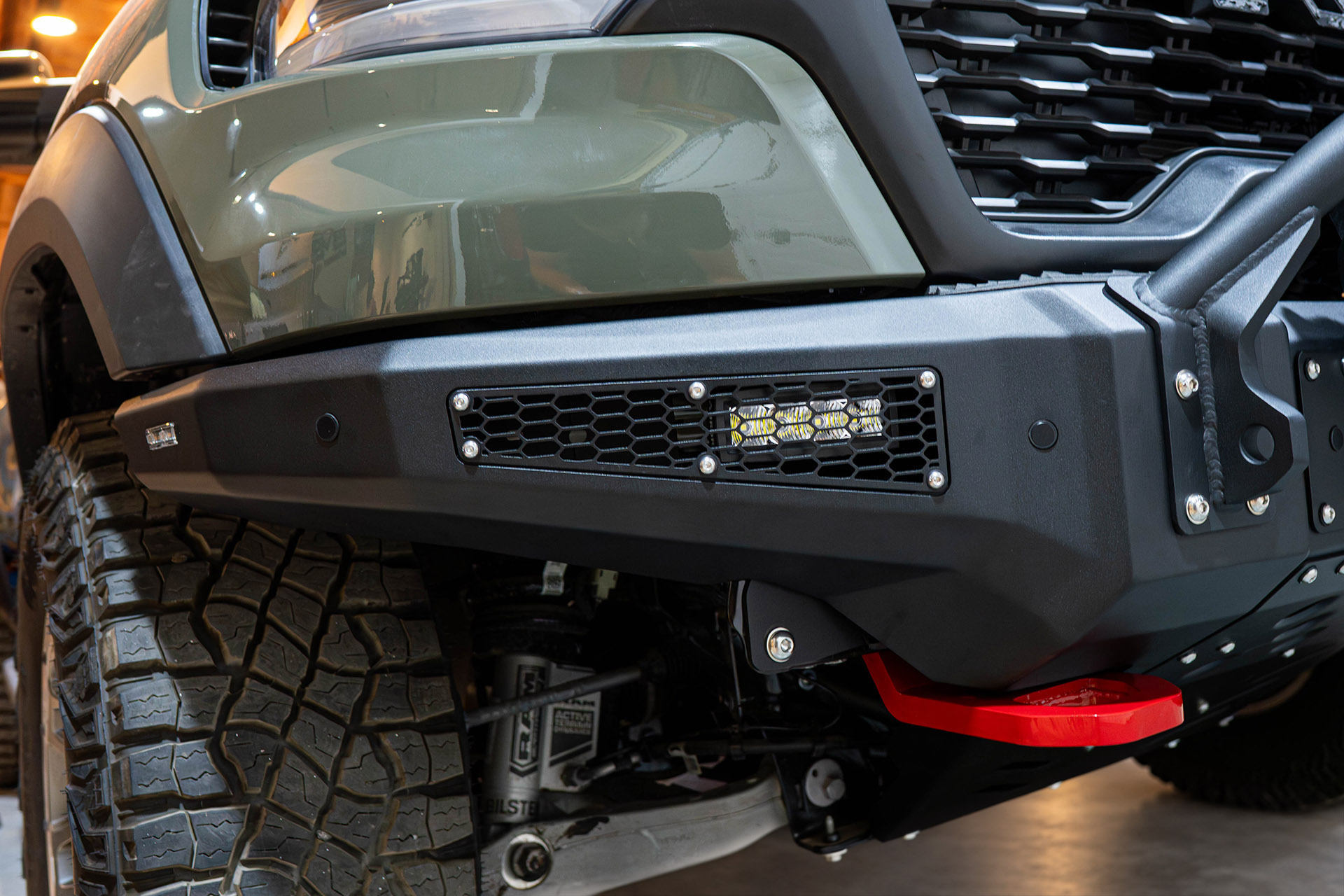

Light slots: 2 slots, WxHxD: 127x65x55 mm
Slots for parktronic sensors: present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 240x65x45 cm (94.5×25.6×17.7 in)
Package weight: 70 kg (154.3 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 3 mm steel A 620
Brackets material: 5 mm steel A 516-55

FAQ

Why install a heavy duty front bumper on a RAM RHO if the truck is already built for off-road use?

The RAM RHO comes from the factory with serious off-road capability, but the factory front bumper can still be vulnerable to contact with the ground, rocks, and other obstacles. The BMS PRO-Line steel front bumper adds stronger front-end protection for owners who regularly take the truck beyond maintained roads.

It also complements the RHO’s factory capability rather than duplicating it. Improved approach clearance helps on abrupt terrain changes, a built-in winch mount adds self-recovery capability, and external recovery points make it easier to connect recovery gear when traction and four-wheel drive are no longer enough.

Some owners also appreciate the added protection of a steel bumper during minor parking-lot contact, although it does not guarantee that the truck will remain undamaged.

Will the bumper affect the lidar or electronic driver-assistance systems?

The factory lidar is relocated using a dedicated bracket included with the BMS PRO-Line bumper, while separate openings are provided for the factory parking sensors.

When the sensors are transferred and positioned correctly, their original functionality can normally be retained. In some cases, calibration or software adjustment may be required after installation, so professional installation and sensor setup are recommended.

This allows the RHO to retain its electronic driver-assistance features while adding the protection and off-road functionality of an aftermarket front bumper.

Does installation require cutting the body or factory bumper?

No. Installation of the BMS PRO-Line does not require cutting or drilling the vehicle body. The factory bumper is removed and the heavy duty front bumper installs in its place using the included mounting brackets and hardware.

The additional installation step is relocating the factory lidar using the dedicated lidar relocation bracket supplied with the bumper.

What winch should I choose for hidden installation in the RAM RHO bumper?

The BMS PRO-Line supports hidden installation of a WARN VR EVO 10-S or WARN VR EVO 12-S with synthetic rope. For the relatively heavy RAM RHO, the WARN VR EVO 12-S is generally the better choice when additional recovery capacity is preferred.

The built-in winch mount and control box bracket are included with the bumper. Comparable winches may also fit, but their overall dimensions and mounting pattern should be checked against the available mounting area before installation.

Can I recover a RAM RHO using the bumper?

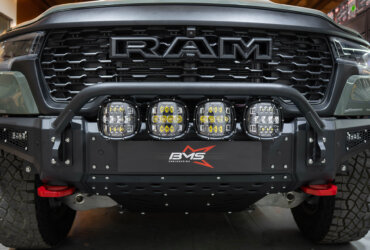

Yes. The BMS PRO-Line includes two external heavy-duty D-ring mounts for vehicle recovery. Their position makes it easier to connect a strap or rope when the RHO is stuck in snow, sand, loose dirt, or a deep rut.

If the strap or rope does not have a hook, attach it to the built-in recovery points using compatible, properly rated shackles. Keep the pull as straight as possible along the frame and avoid sudden side loads. Properly rated recovery pulleys or snatch blocks can be used when the pulling direction needs to be changed.

Straps, shackles, pulleys, and other recovery equipment should always be rated for the vehicle’s weight and the expected recovery load.

How much protection does the BMS PRO-Line provide?

The BMS PRO-Line steel front bumper is stronger than the factory plastic bumper and can help reduce damage to the radiator and other front-end components during accidental contact with the ground, rocks, or similar obstacles.

A front skid plate is also included, adding protection to part of the underside behind the bumper.

The bumper does not make the RAM RHO damage-proof. A severe impact can still damage the bumper, mounting points, frame, body, and components behind it. This is especially important to keep in mind when driving rough dirt routes at higher speeds.

Is a heavy duty bumper useful for desert and steppe travel?

Yes. For remote travel across open terrain, desert tracks, rocky sections, and soft sand, the BMS PRO-Line can be a useful part of preparing the RAM RHO.

Improved approach clearance helps the truck handle abrupt terrain changes with less risk of catching the front end, while the steel bumper provides stronger protection on rocky routes. A winch becomes particularly valuable on remote trips, where the nearest capable recovery vehicle may be a long way away.

Which is better for the RAM RHO: a heavy duty bumper or a bull bar?

A bull bar is an external structure mounted in front of the factory bumper. It can add some protection to the center of the front end, but it does not provide the same range of off-road functions as a complete replacement bumper. Depending on its design, it can also increase the front overhang.

The BMS PRO-Line replaces the factory front bumper, improves approach clearance, provides a built-in winch mount, and adds accessible recovery points with heavy-duty D-ring mounts.

A bull bar is primarily an additional protection and styling component, while the BMS PRO-Line off road front bumper is intended as a more complete upgrade for protection, recovery, and serious travel beyond pavement.

Can the BMS PRO-Line be used on public roads?

This is an aftermarket front bumper, and road-use rules can vary by location. If your RAM RHO is driven on public roads, check local requirements before installation.
