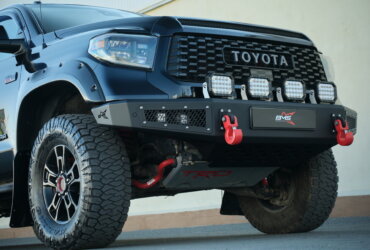

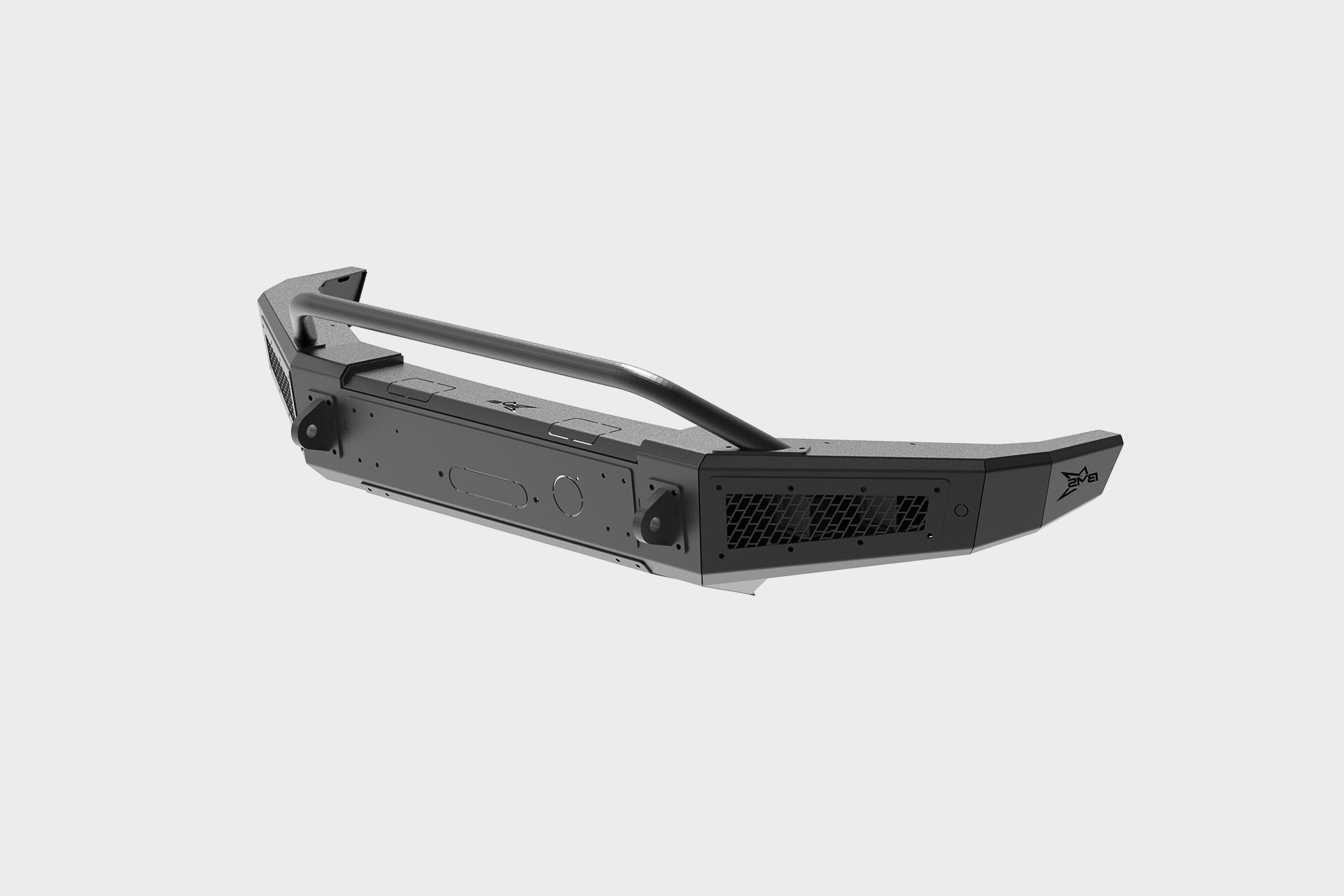

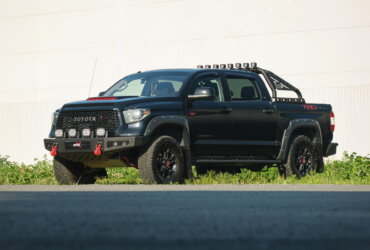

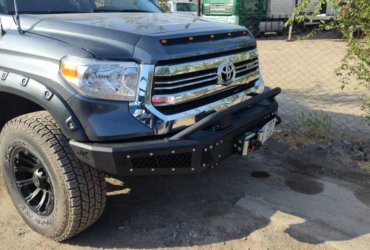

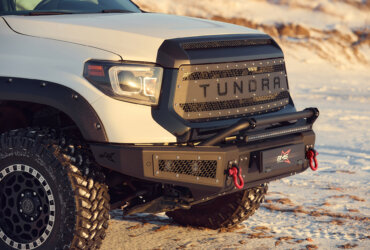

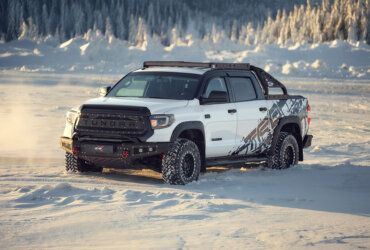

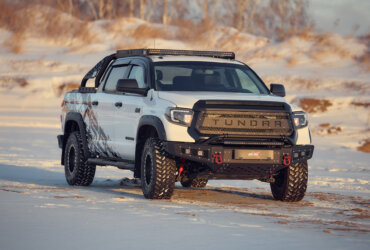

Front Bumper BMS PRO-Line for Toyota Tundra 2014-2021

Added front-end strength, improved clearance, and proper recovery hardware give the 2014–2021 Toyota Tundra more confidence beyond pavement.

The Tundra is often built around the owner’s lifestyle – long-distance trips, work on rural property, hunting, fishing, and routes where the pavement ends before the destination. In these conditions, the factory front bumper is expected to do more than complete the bodywork. Rocks, stumps, branches, and other obstacles can damage the plastic bumper and the components behind it, so stronger front-end protection becomes a sensible part of preparing the truck.

The BMS PRO-Line steel front bumper is better suited to that kind of use. Its stronger construction can help reduce damage to the body, radiator, and other front-end components during contact with obstacles. Improved approach clearance also helps the Tundra catch the ground less often on steep climbs, sharp drops, and uneven terrain.

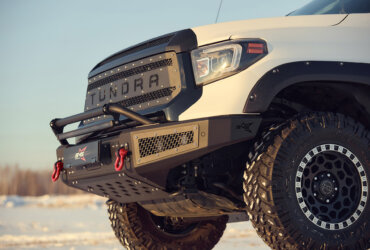

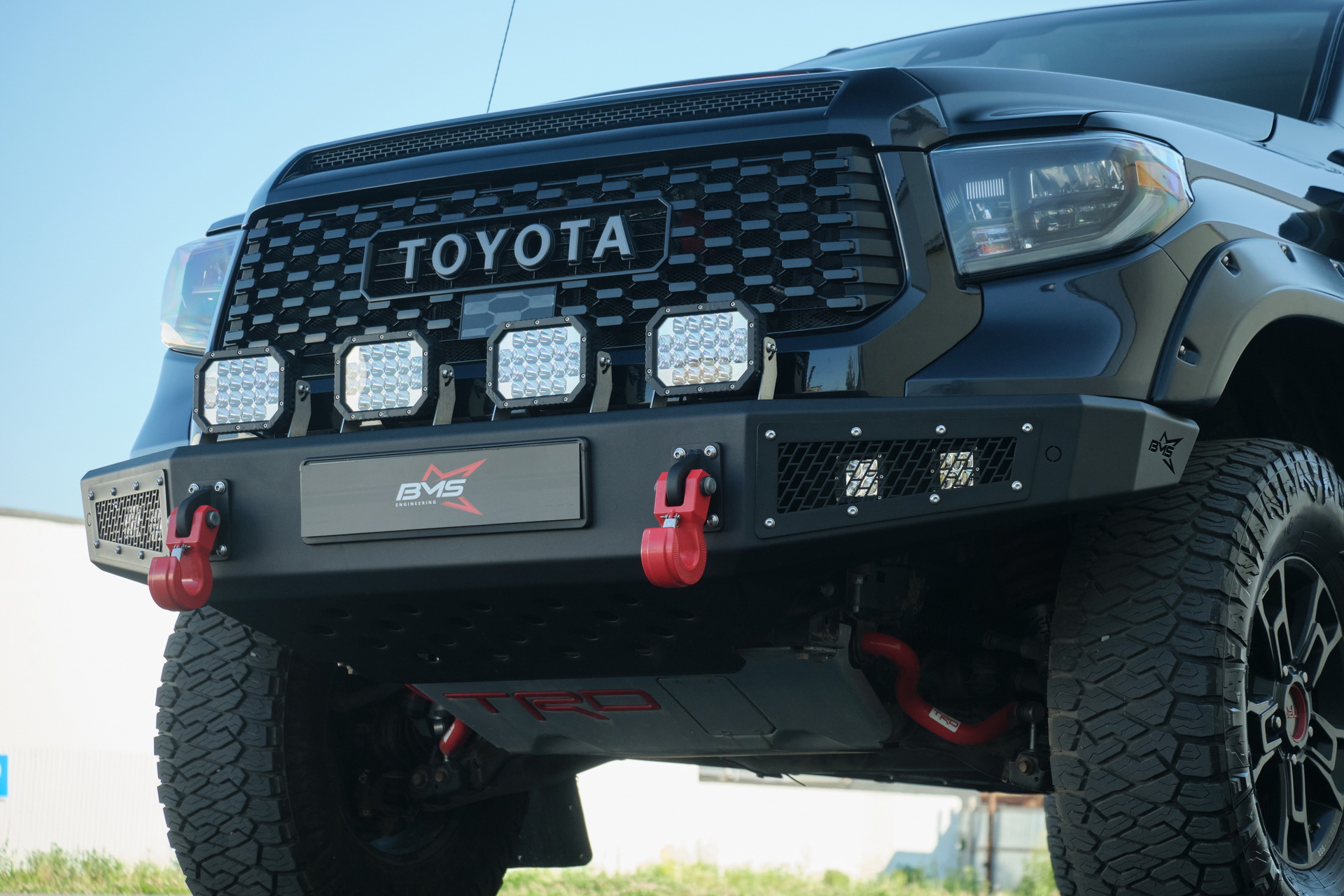

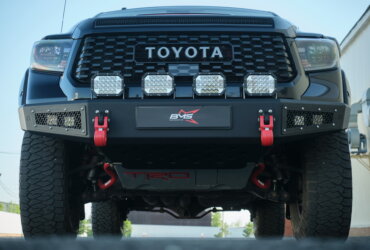

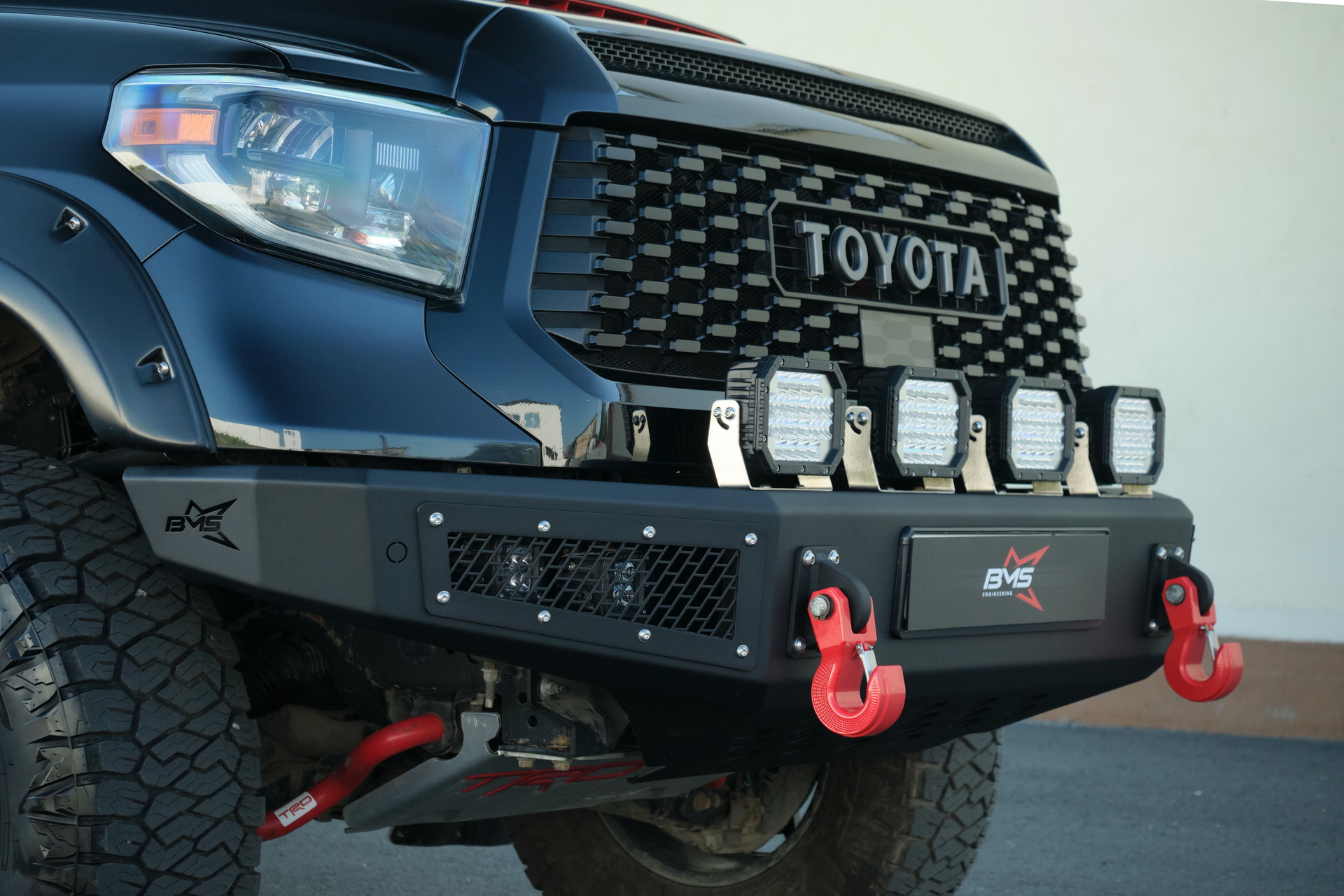

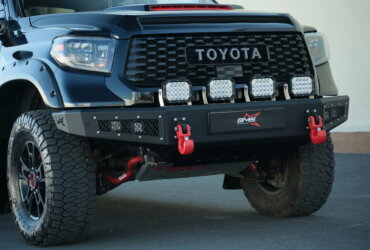

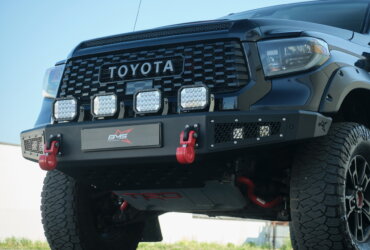

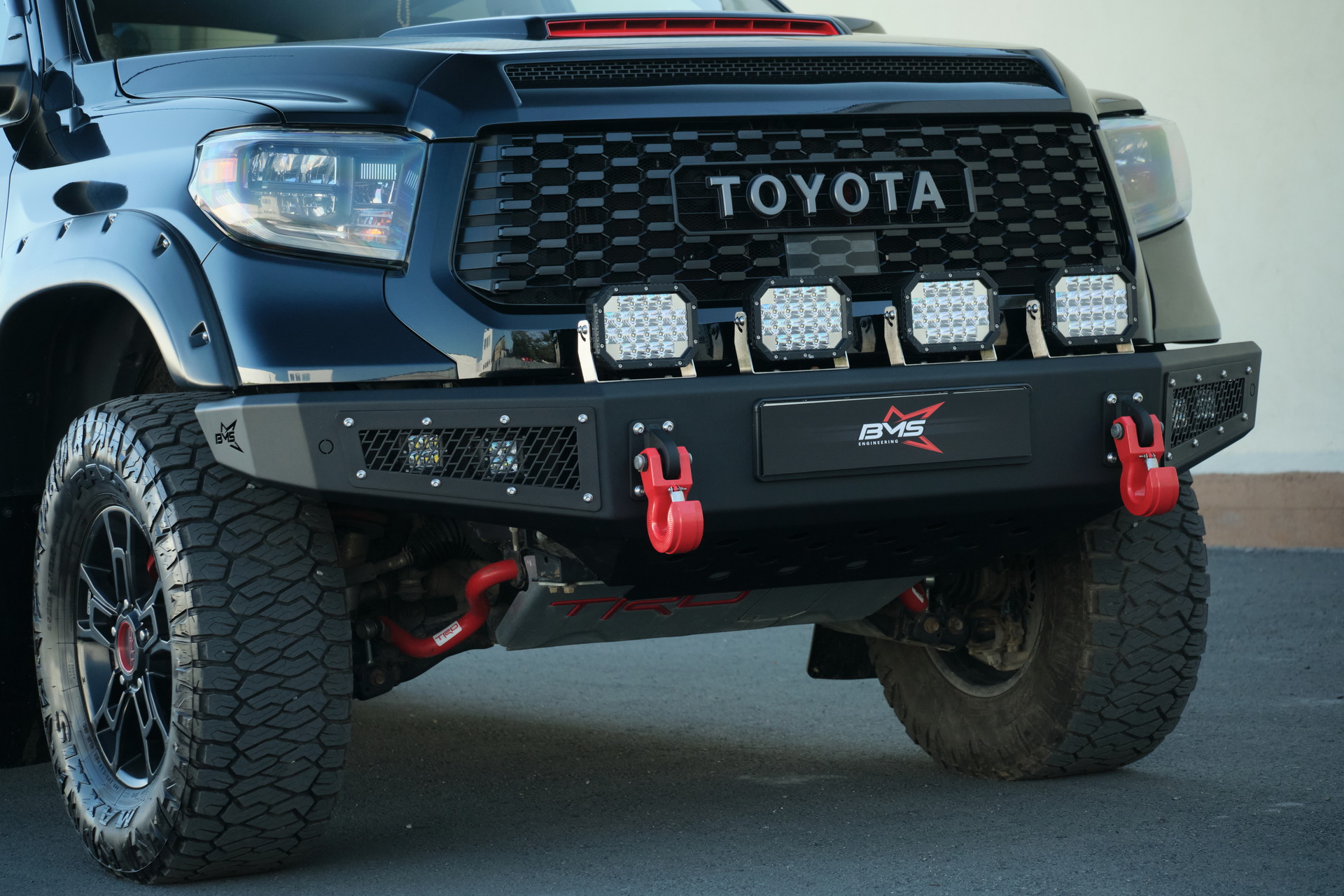

Two external heavy-duty D-ring mounts make recovery gear easy to access when the truck becomes stuck in mud, snow, or a deep rut. If a recovery strap or rope does not have a hook, attach it to the built-in recovery points using compatible, properly rated shackles. This is especially useful on a large, heavy pickup, where reaching underneath the vehicle for a factory tow point can be difficult once the truck is already stuck.

Installation does not require vehicle modification. The BMS PRO-Line also includes a built-in winch mount, giving the Tundra a valuable self-recovery option when a difficult section cannot be bypassed or another capable vehicle is not available. A winch can be useful far from civilization, but also on familiar dirt roads that become deeply rutted after heavy rain.

The BMS PRO-Line aftermarket front bumper is a strong fit for Tundra owners who want more freedom on weekend trips, work routes, and long-distance travel beyond pavement. It adds useful protection and recovery function while helping the truck make better use of its full-size off-road capability.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060172
Application: Toyota Tundra 2014-2021, 2nd generation, 2nd facelift
Installation method: fully bolt on
Mounting kit: included

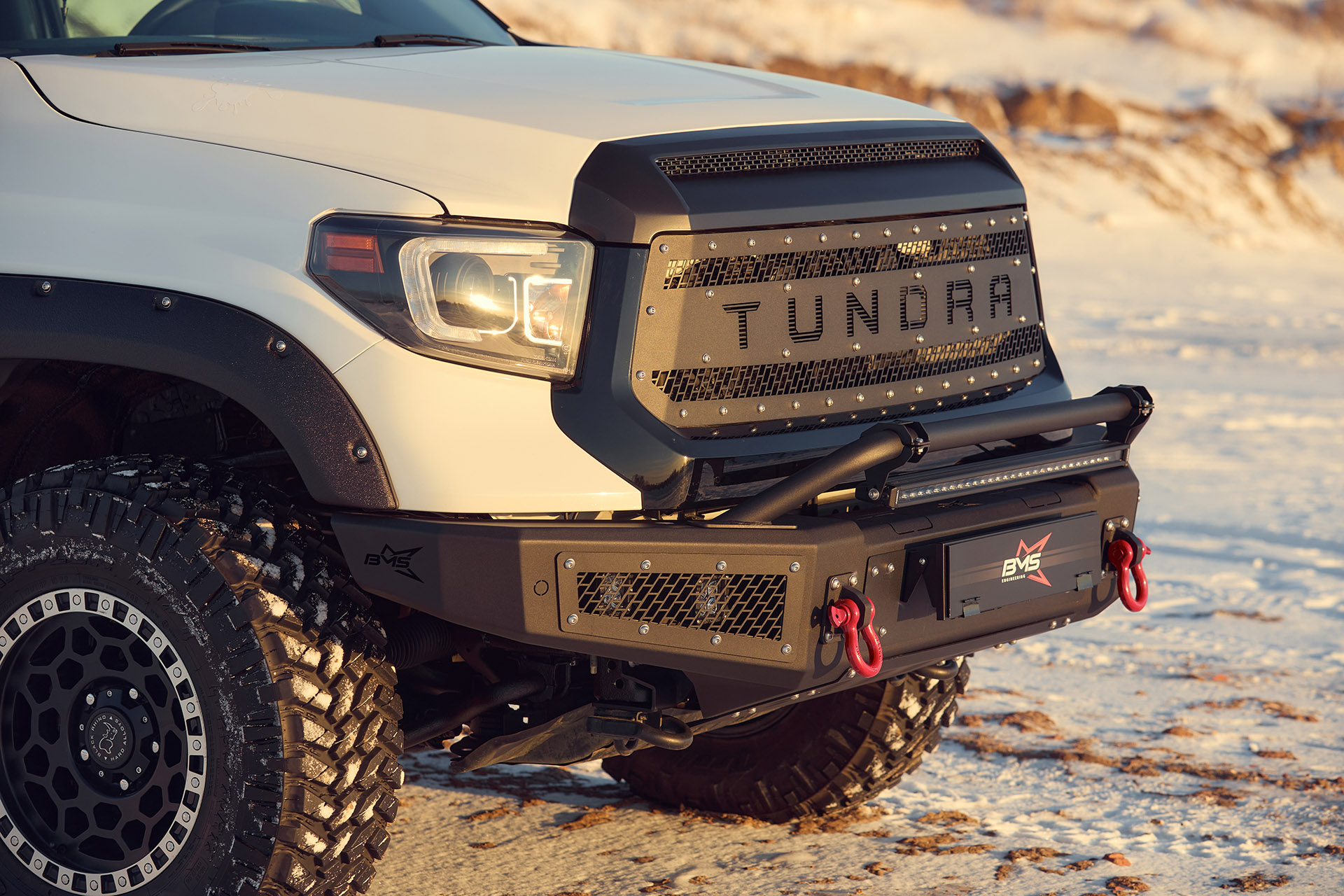

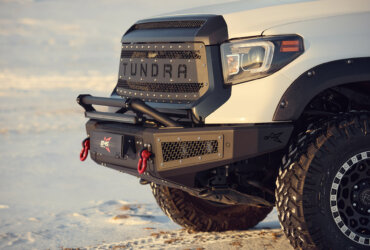

Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, bull bar, product passport, and 2 pcs recovery points
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: WxHxD: 95x60x75 mm
Slots for parktronic sensors: present as a stencil
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 220x70x45 cm (86.6×27.6×17.7 in)
Package weight: 78 kg (172 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 4 mm steel A 516-55, D45x2.5 SAE 1020 steel tube
Brackets material: 6 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube

FAQ

Will this bumper fit a facelifted Toyota Tundra?

Yes. The BMS PRO-Line front bumper is designed for the 2014–2021 Toyota Tundra, 2nd generation after the second facelift. For 2022 and later Tundra models, choose a different compatible bumper from the BMS Engineering catalog.

Does installation require cutting the factory bumper or vehicle body?

No. Installation does not require trimming factory components or drilling the body. The factory bumper is removed, and the BMS PRO-Line installs in its place using the included mounting brackets and hardware.

Even though no vehicle modification is required, professional installation is recommended to align the heavy duty front bumper correctly with the body and secure it properly.

Can I keep the factory parking sensors after installing the bumper?

Yes. The factory parking sensors can be transferred into the BMS PRO-Line bumper. The sensor openings are closed with stencils: the required sections are removed during installation, while unused stencils can remain in place for a clean finished look.

The sensors usually continue to operate normally after being transferred, although sensitivity adjustment or recalibration may occasionally be required.

What winch should I install in the Toyota Tundra bumper?

Choose the winch according to the truck’s fully loaded weight, including passengers, cargo, and additional equipment.

The BMS PRO-Line bumper can accommodate a WARN VR EVO 10-S if the Tundra is usually lightly loaded, or a WARN VR EVO 12-S for a heavier setup. Similar winches with synthetic rope may also fit, but their dimensions and mounting pattern should be checked against the built-in winch mount before installation.

Installing the winch at the same time as the bumper is recommended to avoid removing the assembly again later.

Can I recover a fully loaded Tundra using the bumper?

Yes. The BMS PRO-Line includes two external heavy-duty D-ring mounts for vehicle recovery. Their position makes it easy to connect recovery gear without reaching underneath a truck that is already deep in mud or snow.

If the recovery strap or rope does not have a hook, attach it to the built-in recovery points using compatible, properly rated shackles. With a heavily loaded truck, keep the pull as straight as possible along the frame and avoid sudden side loads. Properly rated recovery pulleys or snatch blocks can be used to change the pulling direction when necessary.

All straps, shackles, pulleys, and other recovery equipment should be selected for the truck’s fully loaded weight and the expected recovery load.

Do I need a heavy duty front bumper for remote mountain travel?

Not necessarily if the trip stays on paved roads and around developed tourist areas. Its advantages become more useful once the route leaves the main highway and includes dirt access roads, water crossings, rocky sections, or tracks that can become difficult after rain.

Improved approach clearance helps the Tundra catch the ground less often, while the steel front bumper is better suited to occasional contact with rocks and other obstacles. For travel far from main roads, an installed winch also provides a valuable self-recovery option.

Is a heavy duty bumper worth installing if my Tundra is mostly driven on pavement?

You can stay with the factory bumper if the truck rarely leaves good roads. But for many owners, part of the Tundra’s appeal is being able to turn off the pavement toward a lake, campsite, rural property, or remote destination.

In those situations, stronger front-end protection and improved approach clearance become useful immediately. Some owners also value the added protection during light parking-lot contact, although a steel bumper does not guarantee that the truck will remain undamaged.

Will the BMS PRO-Line protect the front end on rough roads?

The BMS PRO-Line steel front bumper is stronger than the factory plastic bumper and can help reduce damage to the grille, radiator, and other front-end components during contact with ruts, rocks, branches, or similar obstacles.

It does not make the Toyota Tundra damage-proof. A strong impact can still damage the bumper, mounting brackets, frame, body, and components behind it.

Can I use the BMS PRO-Line for everyday driving?

Yes. The BMS PRO-Line can remain on a daily-driven Tundra that spends most of its time in the city or on the highway and only occasionally travels off-road.

The truck stays ready for trips beyond pavement, with accessible recovery points and the option to keep a winch installed inside the bumper for self-recovery when needed.

Can this bumper be used on public roads?

This is an aftermarket front bumper, and road-use rules can vary by location. If your Toyota Tundra is driven on public roads, check local requirements before installation.
