Skid Plates BMS for Toyota Tacoma 2024–2026

Protect the engine and transmission of your Toyota Tacoma before rocks, deep ruts, or hidden obstacles turn a weekend trip into an expensive repair. BMS Engineering skid plates add durable underbody protection where ground clearance alone may not be enough.

The 2024–2026 Toyota Tacoma is built for travel, outdoor adventures, and routes that do not always stay on pavement. But once the front wheels clear a rock or drop into a washed-out rut, that same obstacle can end up directly beneath the truck. A hard impact to the oil pan or transmission can cause serious damage and bring the trip to an early stop.

That is why an engine skid plate is a practical upgrade for Tacoma owners who spend any amount of time beyond maintained roads. The BMS system protects the vulnerable underside of the engine and transmission and takes the first contact when rocks, uneven terrain, or trail debris pass between the wheels.

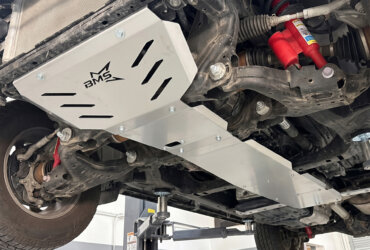

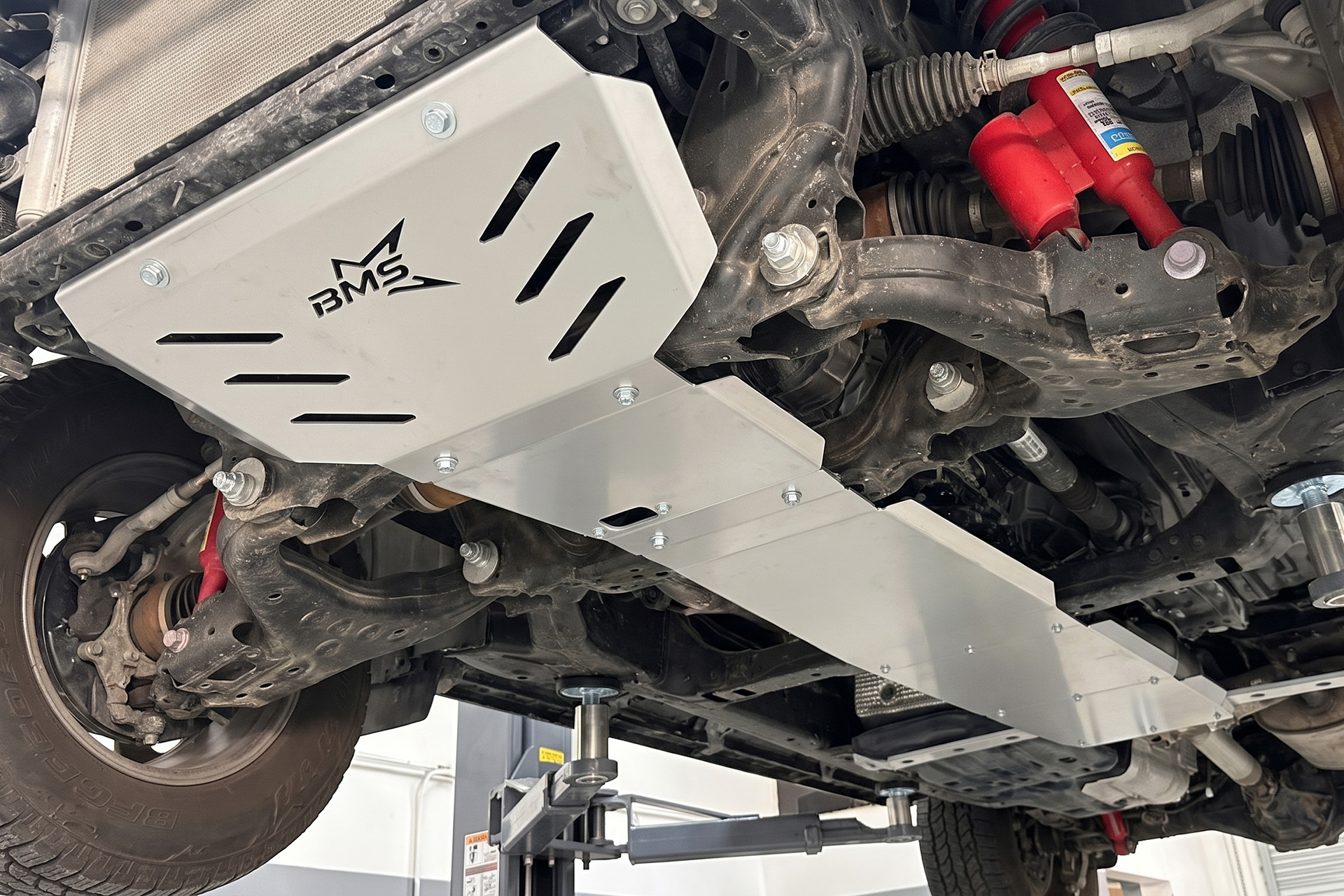

Designed specifically for the fourth-generation Toyota Tacoma 2024–2026, the skid plates install at factory mounting points with no cutting or drilling of the frame required. The system is not compatible with hybrid models.

The 5 mm aluminum-magnesium alloy construction combines lower weight with corrosion resistance while providing durable protection for the engine and transmission.

BMS Engineering Toyota Tacoma skid plates are a practical choice for owners who use their truck for camping, outdoor trips, rough roads, or occasional off-road travel and want reliable engine and transmission protection without unnecessary vehicle modifications.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS065049
Application: Toyota Tacoma 2024-2026 4th generation, non-hybrid
Installation method: fully bolt on
Mounting kit: included

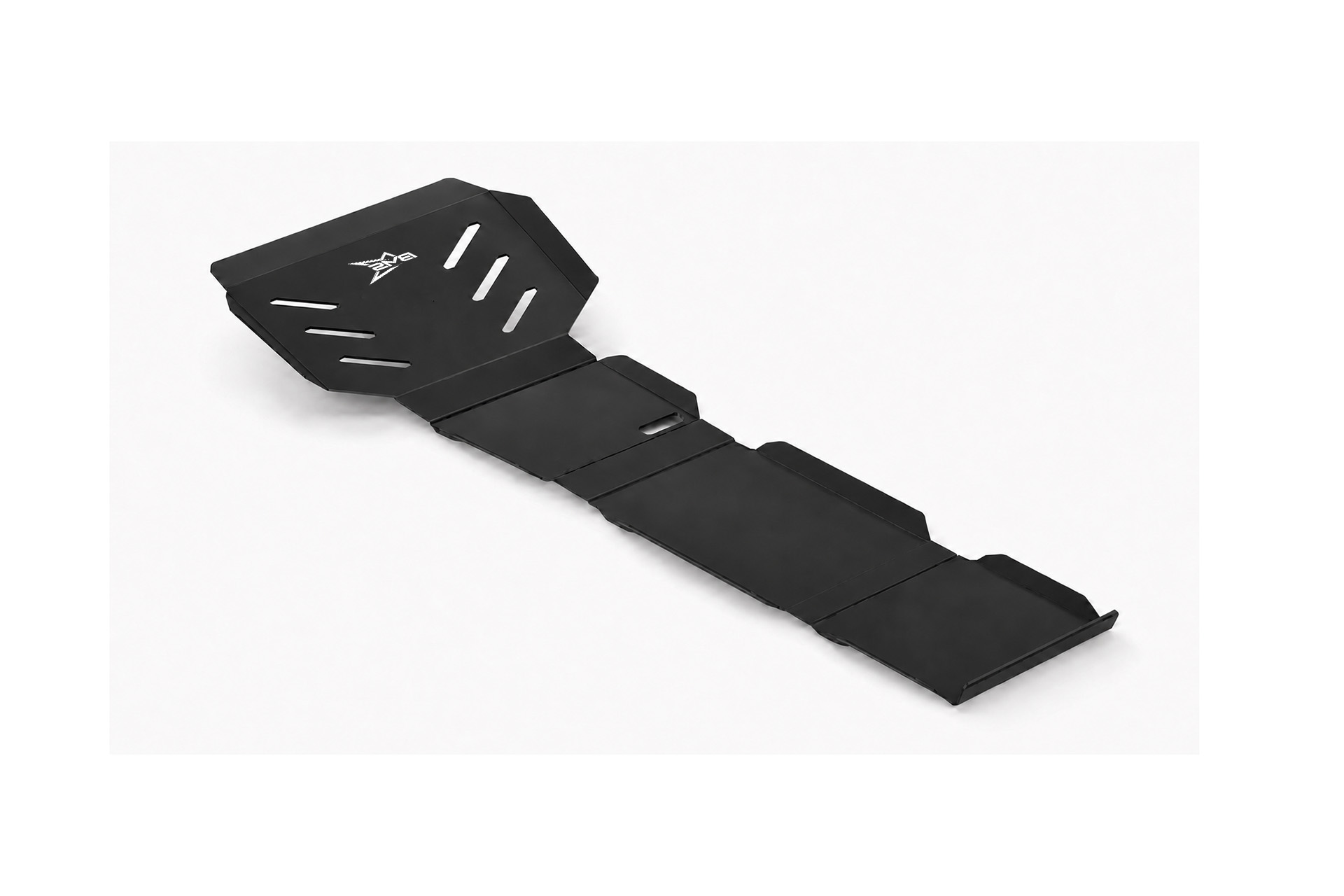

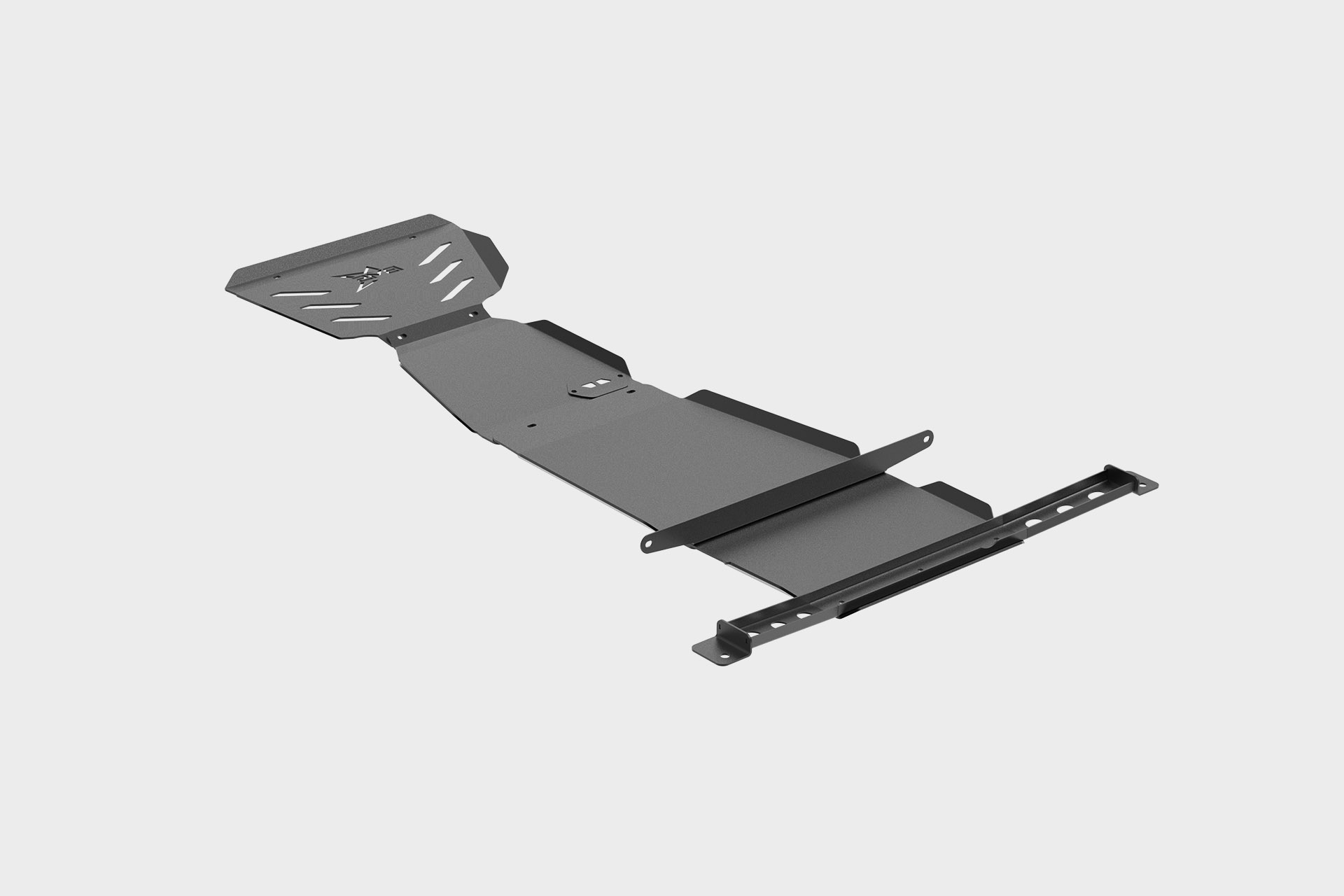

Features of the complete set: The set includes 4 skid plates, a crossmember, mounting brackets, and a bolt kit.
Package size: 125x60x22 cm (49.2×23.6×8.7 in)
Package weight: 19.9 kg (43.9 lb)

TECH SPECS:

Color: Black powder coating finish
Material: 5 mm aluminum AMG

FAQ

Do I need skid plates if my Toyota Tacoma rarely goes off road?

Yes. Oil pan and transmission damage can happen without serious off-road driving. Broken pavement, road construction, rough access roads to campsites or remote properties, and even hard-packed snow or ice can all create underbody hazards.

That makes engine and transmission skid plates useful even for Tacoma owners who spend most of their time on paved roads.

Which Toyota Tacoma models are these skid plates designed for?

The BMS skid plate system is designed for non-hybrid fourth-generation Toyota Tacoma models from 2024–2026.

It is not compatible with hybrid Tacoma models. This also excludes the TRD Pro and Trailhunter trims, which are offered with the hybrid powertrain.

Do I need to drill the Tacoma frame during installation?

No. The BMS skid plates are designed around the factory mounting points on the Toyota Tacoma and install using existing holes.

No frame drilling or cutting is required, and the necessary mounting hardware is included.

What happens if the skid plates take a hard hit?

Metal skid plates create an additional barrier between an obstacle and the engine or transmission, absorbing part of the impact before it reaches critical components.

A severe hit can still deform the metal and transfer some of the force to the vehicle, so skid plates do not make the engine or transmission immune to damage. Without that protection, however, the same obstacle could strike those components directly and cause significantly more serious damage.

After a hard impact, inspect the skid plates and mounting hardware and make sure there is still adequate clearance between the plates and the vehicle. If a deformed section begins touching the engine, transmission, exhaust system, or other components, it should be removed and straightened or replaced.

Are the skid plates protected against corrosion?

BMS skid plates have a polymer coating that helps protect the metal surface. During highway, gravel-road, and off-road use, rocks, sand, and direct contact with obstacles can eventually scratch or chip that coating. Aluminum skid plates do not rust, so chips and scratches in the coating are less of a concern from that standpoint.

Do the skid plates reduce ground clearance?

The BMS skid plate system follows the underbody geometry of the Toyota Tacoma and has only a small effect on ground clearance – approximately 2–3 cm (0.8–1.2 in).

For a pickup like the Tacoma, that reduction has little effect on overall trail capability while adding useful protection against rocks, branches, and other obstacles that pass between the wheels.
