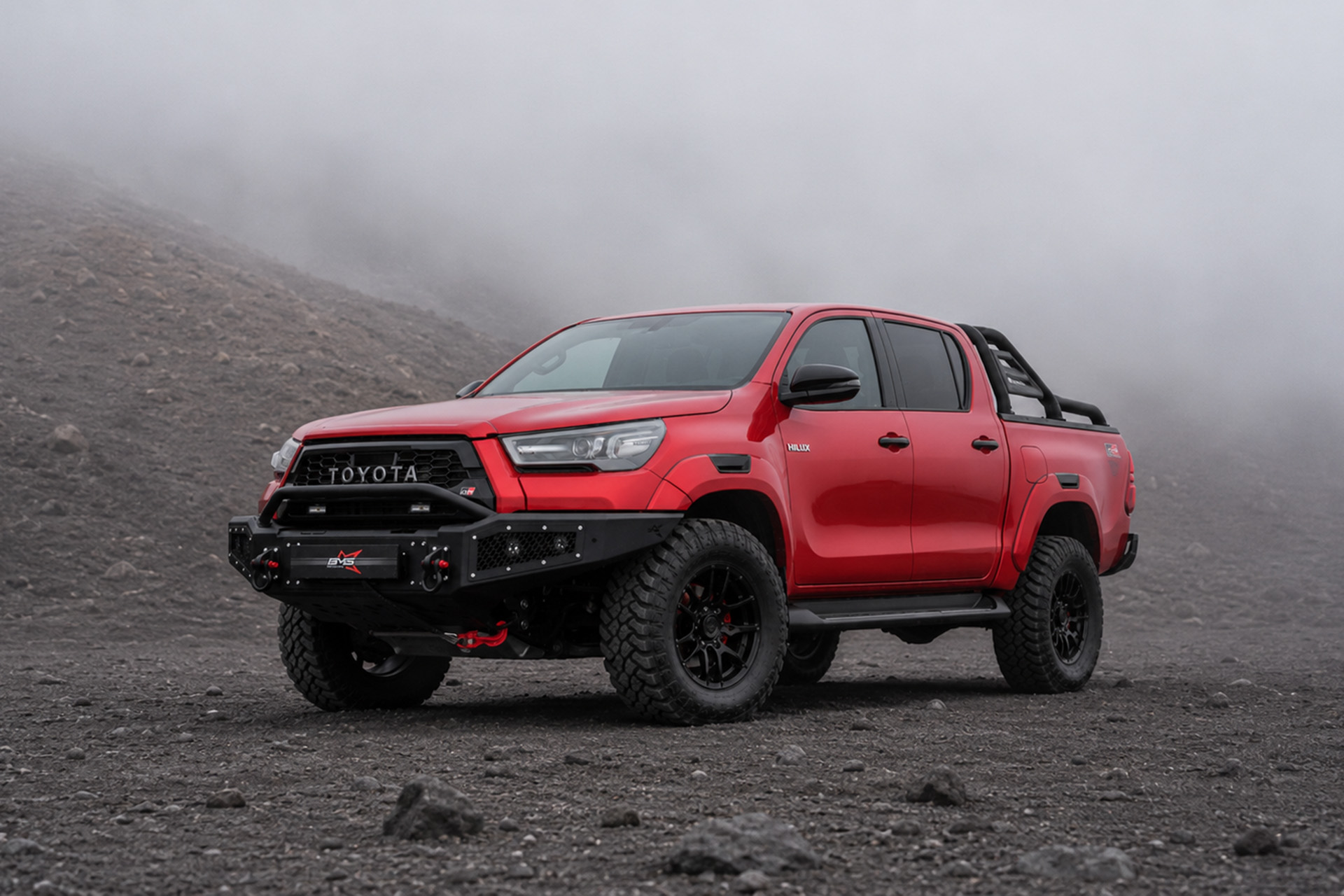

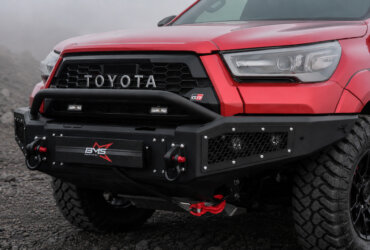

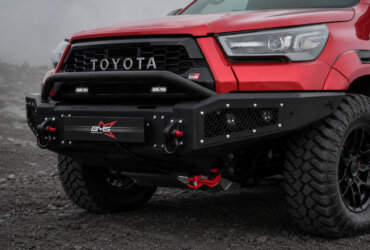

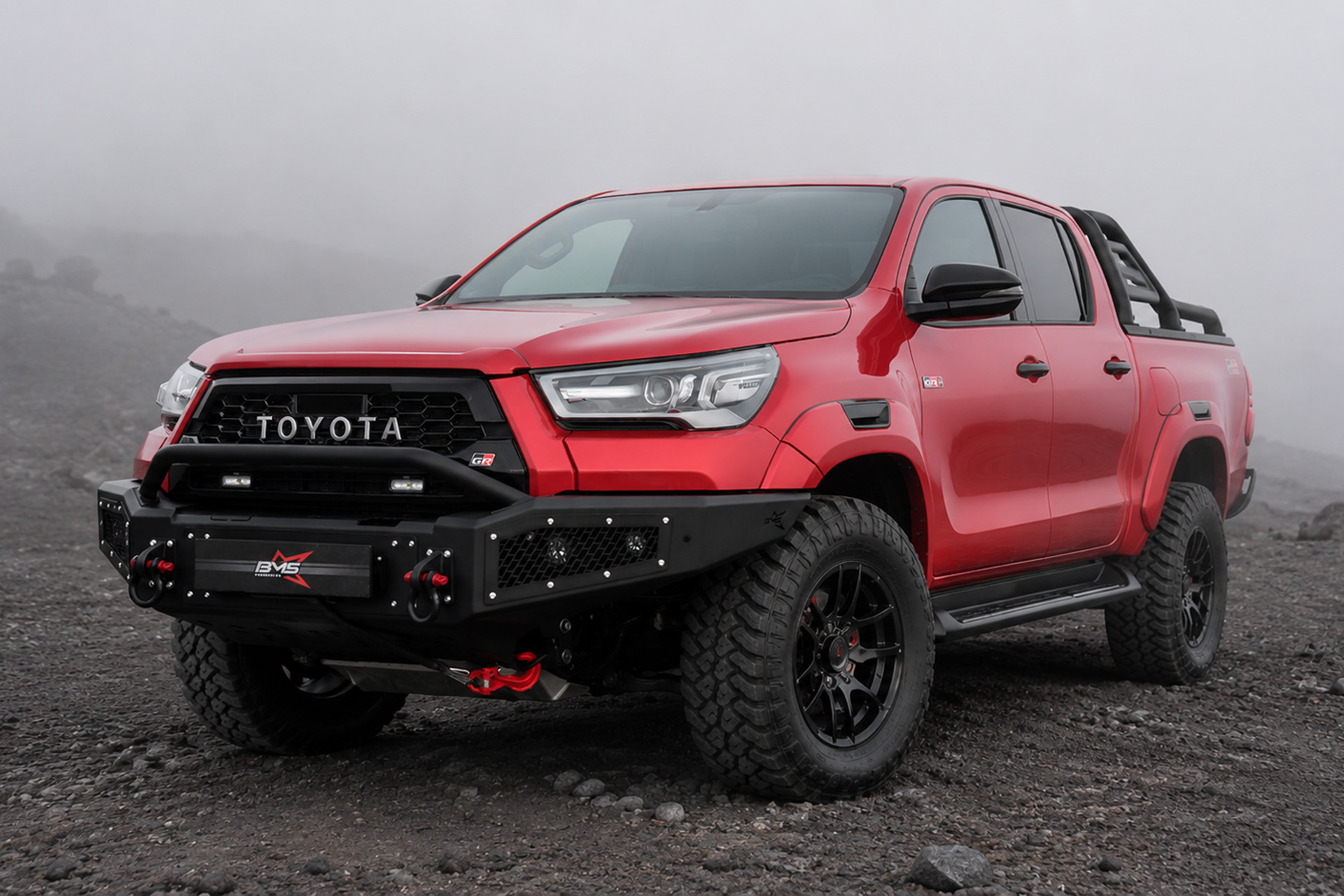

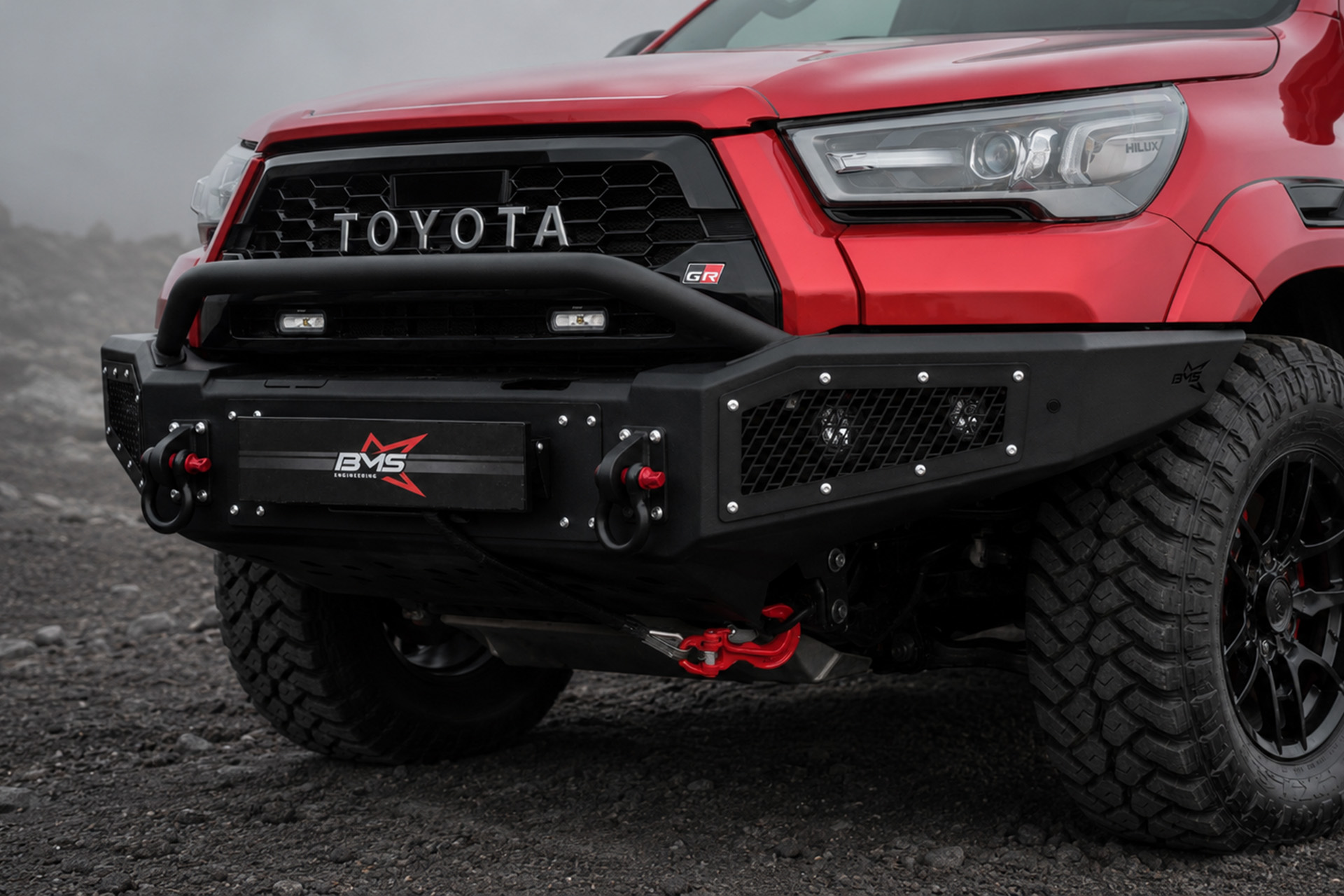

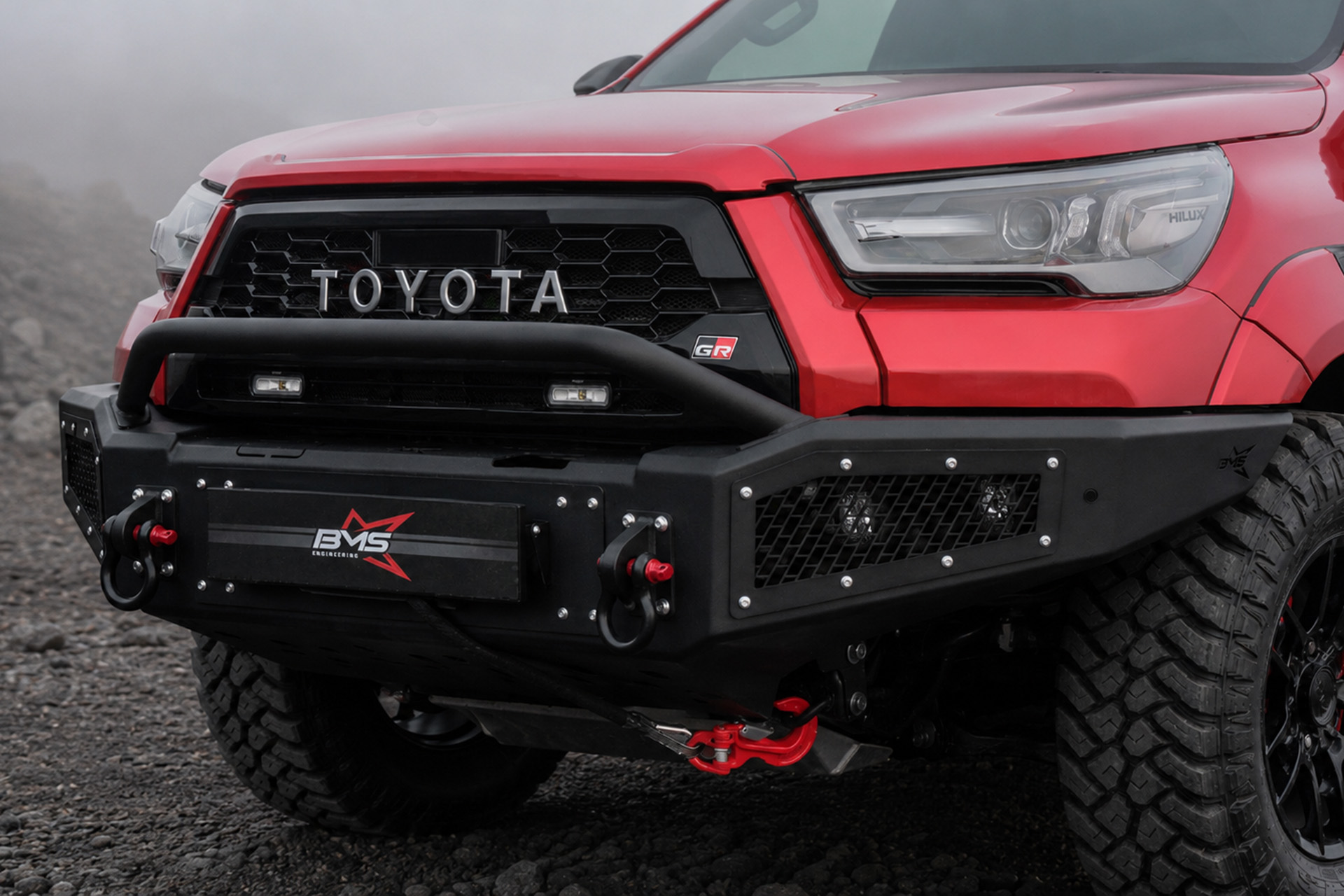

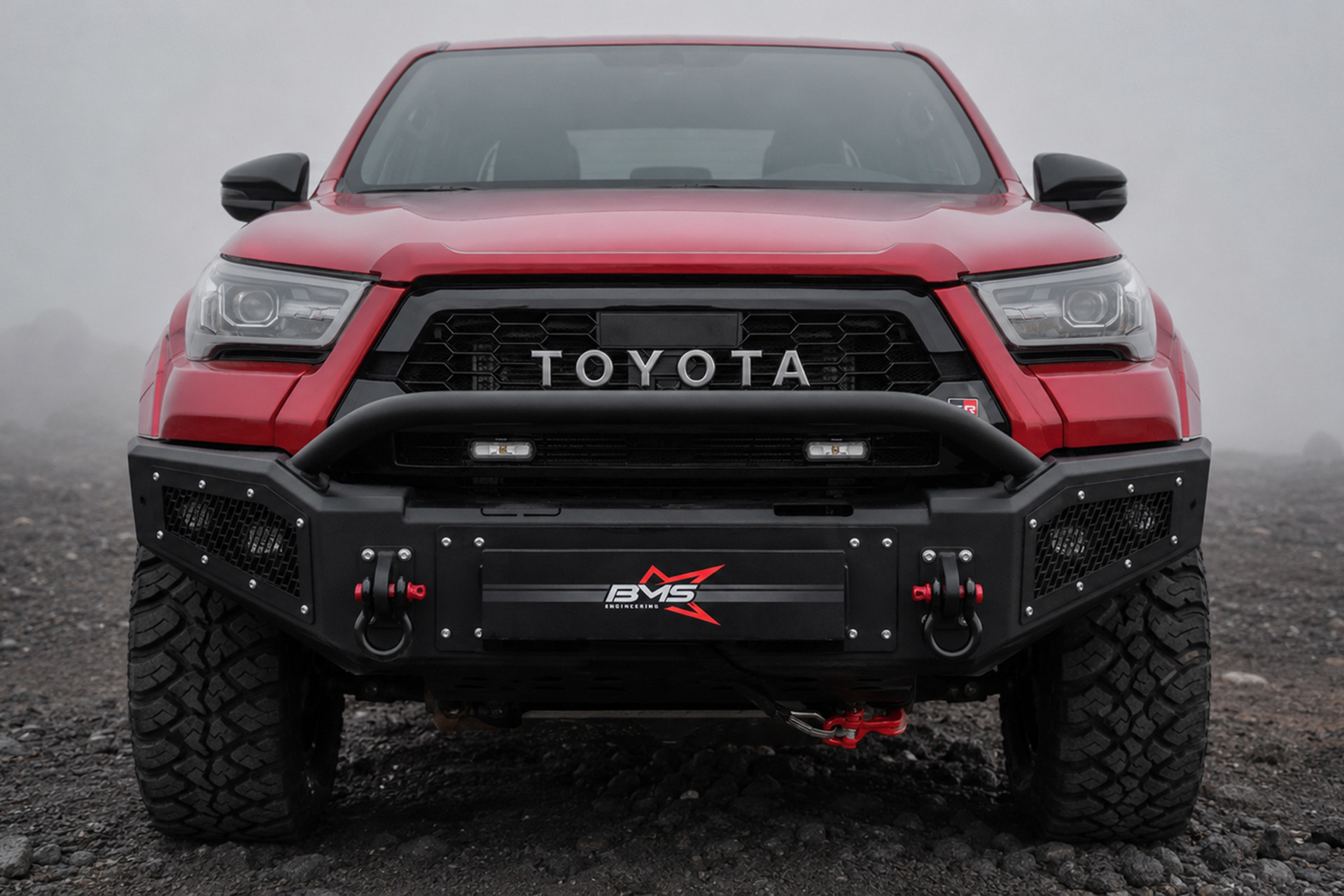

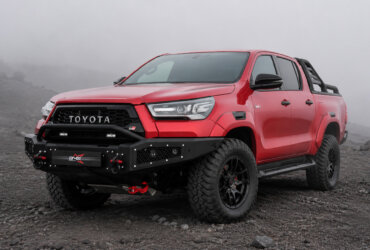

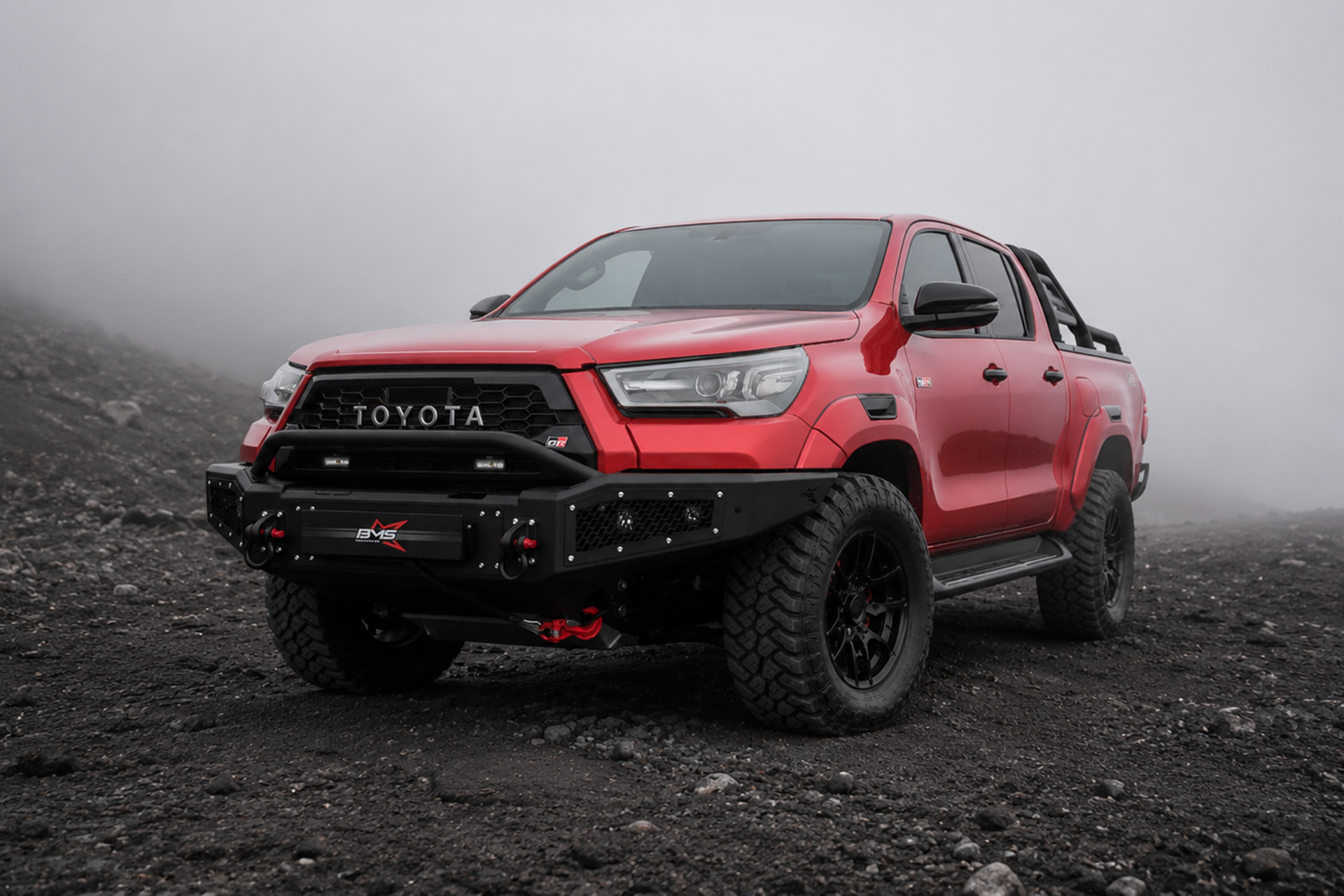

Front Bumper BMS PRO-Line for Toyota Hilux 2020-2026

Built for demanding work but equally capable on long trips, the 2020–2026 Toyota Hilux benefits from a front bumper that adds protection, improves approach clearance, and provides practical recovery capability.

Its spacious bed, body-on-frame construction, and four-wheel drive make the Hilux a dependable choice for remote jobsites, fishing trips, outdoor weekends, and routes where the pavement ends well before the destination. However, the factory front bumper has a long overhang and can catch on washouts, steep climbs, deep ruts, and rocky terrain. In these conditions, factory plastic may not provide the level of protection owners expect from a prepared pickup.

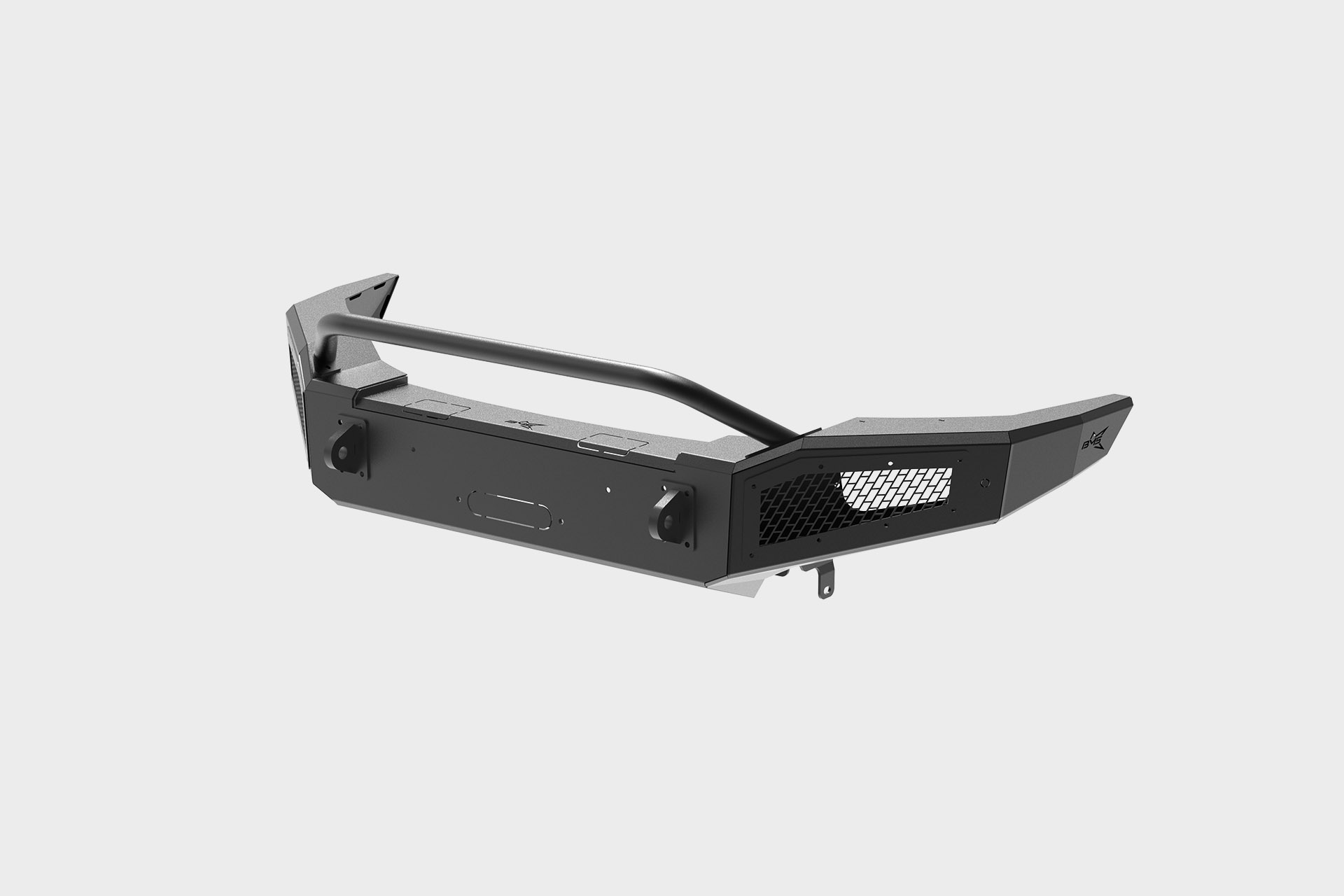

The BMS PRO-Line steel front bumper is designed to match the Hilux’s real-world capability. Improved approach geometry helps the truck clear uneven ground more easily, while frame-mounted construction allows the bumper to handle loads that would often damage the original plastic bumper. Built-in recovery points provide a clear place to attach compatible shackles and recovery gear without searching for the factory tow point underneath the vehicle.

A built-in winch mount adds an important self-recovery option for long-distance travel and remote work. When no other capable vehicle is nearby, a front winch can help free a stuck Hilux and keep the trip moving. Installation requires careful trimming of the factory plastic bumper, so professional installation is recommended for proper fit and alignment.

The BMS PRO-Line aftermarket front bumper is a functional Toyota Hilux upgrade for owners who value more than an aggressive appearance. It adds useful strength, recovery capability, and better front-end geometry for everyday work, demanding routes, and time spent far beyond the city.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060133
Application: Toyota Hilux 2020-2026 8th generation, 2nd facelift
Installation method: requires cutting the lower section of the OEM bumper
Mounting kit: included
Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, bull bar, product passport, certificate of conformity, 2 pcs recovery points, and washer tank skid plate
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: WxHxD: 95x60x75 mm
Slots for parktronic sensors: present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 195x80x50 cm (76.8×31.5×19.7 in)
Package weight: 70 kg (154.3 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 3 mm steel A 620
Brackets material: 6 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube

FAQ

What Toyota Hilux models does the BMS PRO-Line front bumper fit?

The BMS PRO-Line front bumper is designed for the 2020–2026 Toyota Hilux, 8th generation after the second facelift. For earlier Hilux models, choose a compatible bumper from the BMS Engineering catalog.

Will the factory parking sensors still work after installation?

Yes. The BMS PRO-Line bumper includes openings for the factory parking sensors. The sensors are transferred from the original bumper and continue to operate normally. In some cases, minor adjustment or recalibration may be required after installation.

How is a winch installed in the Toyota Hilux bumper?

The BMS PRO-Line front bumper includes a built-in winch mount. It is compatible with WARN VR EVO 10-S and WARN VR EVO 12-S winches with synthetic rope, as well as similar models that match the required dimensions and mounting pattern.

The winch is mounted inside the bumper, with the fairlead positioned at the front for proper rope operation. The bumper also includes a fairlead stencil. If a winch is not installed, the stencil can remain in place to preserve a clean finished look.

Can I recover the Toyota Hilux using this bumper?

Yes. The BMS PRO-Line bumper comes with two heavy-duty recovery points. They provide a clear place to attach compatible shackles, a recovery strap, or other properly rated recovery gear without searching for the factory tow point underneath the truck.

Keep the pull as straight as possible along the frame and avoid sudden side loads.

Can I lift the truck with a Hi-Lift jack using this bumper?

The BMS PRO-Line bumper does not include dedicated Hi-Lift jack slots. In an emergency, an experienced user may carefully lift the truck from the heavy duty bumper using soft shackles to reduce the risk of damaging the finish.

A Hi-Lift jack can be unstable and dangerous when used incorrectly. This method should only be considered as a last resort when safer recovery options are not available.

How is the steel bumper protected against rust?

The bumper is treated with a zinc-containing primer and finished with a black polymer coating that help protect the steel from moisture and road dirt.

Branches, gravel, sand, and road salt can still chip or damage the finish. Inspect the bumper regularly, and clean, treat, and touch up any exposed metal to help prevent corrosion.

How much protection does the bumper provide in a collision?

The BMS PRO-Line steel front bumper is stronger than the factory plastic bumper and can help reduce damage during light contact or some impacts.

It does not make the Toyota Hilux damage-proof. In a serious collision, the bumper, mounting brackets, frame, body, and other vehicle components can still be damaged. Its main benefit is added strength and front-end protection, not a guarantee against damage.

What is the difference between a heavy duty bumper and a bull bar?

A bull bar is an external hoop mounted in front of the factory bumper. It mainly protects the center of the front end and can make the front overhang longer.

The BMS PRO-Line heavy duty front bumper replaces part of the factory bumper, mounts to the frame, and distributes loads through reinforced mounting points. It also improves approach clearance and adds practical functions such as a built-in winch mount and recovery points.

Do I need a heavy duty front bumper for remote northern travel?

It is not essential for highway travel, but remote northern routes often include rocky tracks, deep ruts, water crossings, and washed-out climbs where the factory front overhang can limit the Hilux.

In these conditions, the BMS PRO-Line front bumper improves approach geometry, adds stronger front-end protection, and gives you the option to use a winch when the truck cannot continue under its own power.

Can this bumper be used on public roads?

This is an aftermarket front bumper, and road-use rules can vary by location. If your Toyota Hilux is driven on public roads, check local requirements before installation.
