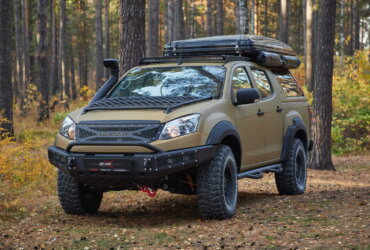

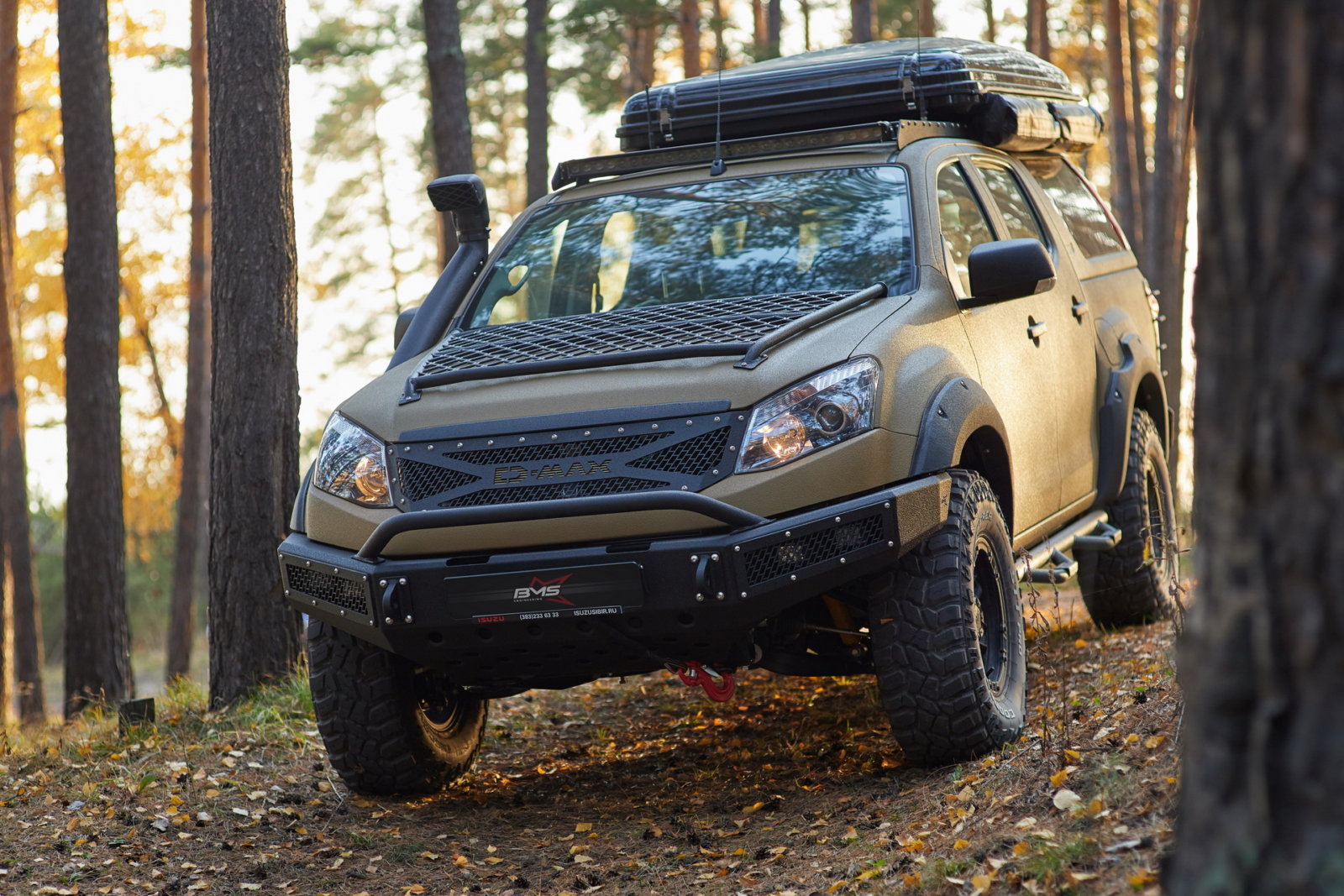

Front Bumper BMS PRO-Line for Isuzu D-Max 2012-2021

Stronger front-end protection, improved approach clearance, built-in recovery points, and winch-ready capability make the BMS PRO-Line front bumper a practical upgrade for the 2012-2021 Isuzu D-Max.

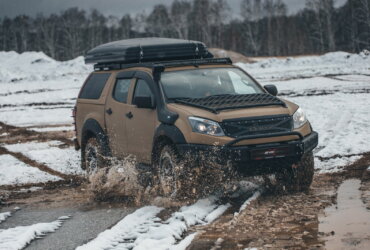

The D-Max is often used where good roads are limited – forest tracks, muddy dirt roads, damaged ruts, and remote access routes to work sites or outdoor destinations. In these conditions, the factory front bumper may come into contact with packed snow, washout edges, or obstacles that are difficult to see in advance.

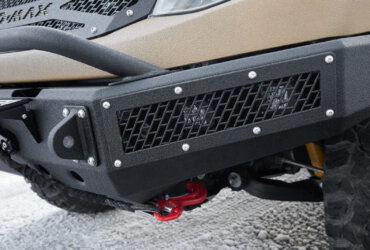

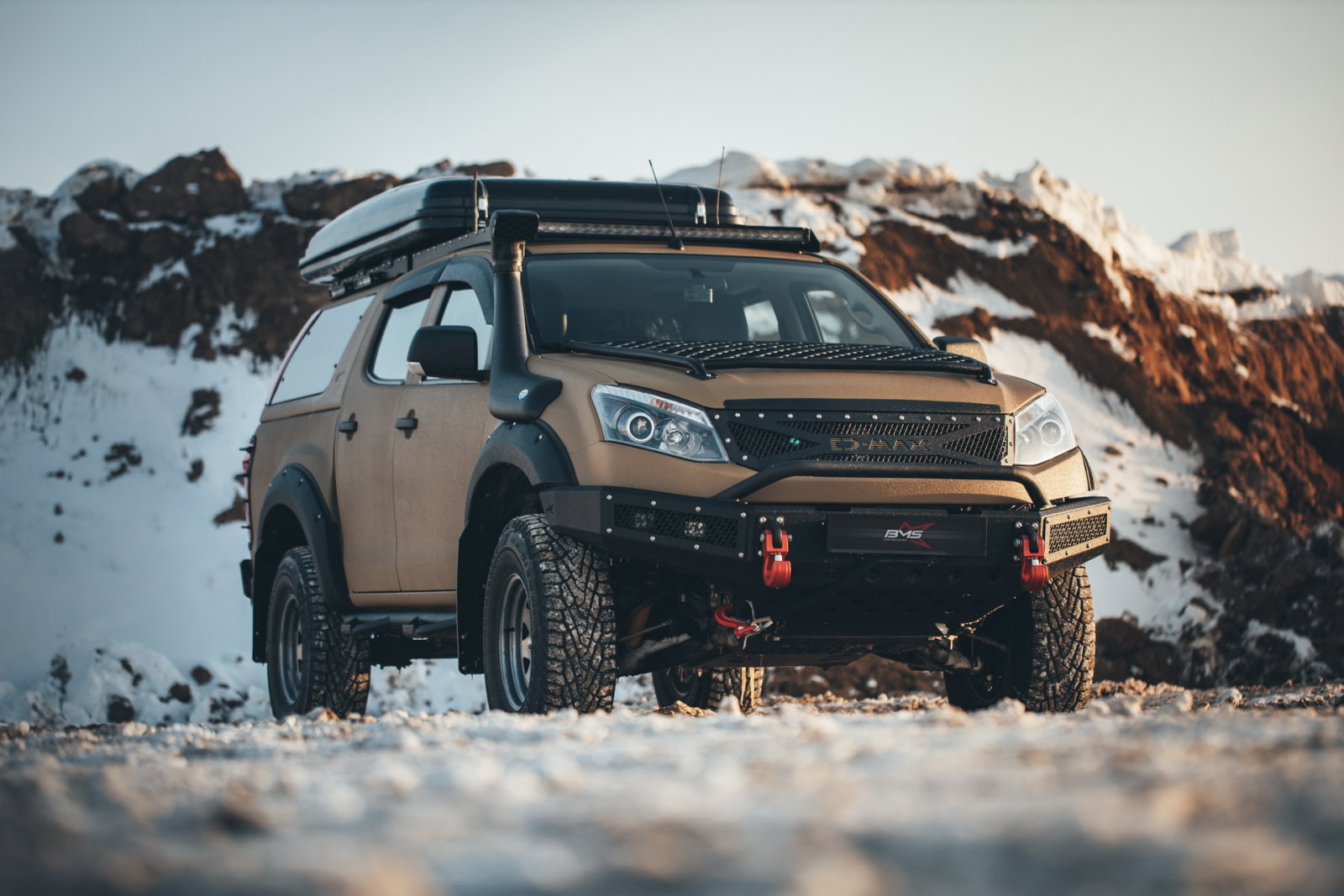

The BMS PRO-Line steel front bumper gives the truck added strength and helps it handle difficult terrain with more confidence. Improved approach clearance reduces the risk of catching the bumper on steep climbs or the edge of a rut, while built-in recovery points provide a clear place to attach compatible shackles and recovery gear when the vehicle needs assistance.

Installation requires trimming the lower section of the factory plastic bumper. In return, the D-Max gains stronger front-end protection and a built-in winch mount – useful functionality for remote travel where outside help may not be available.

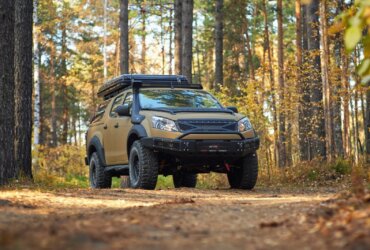

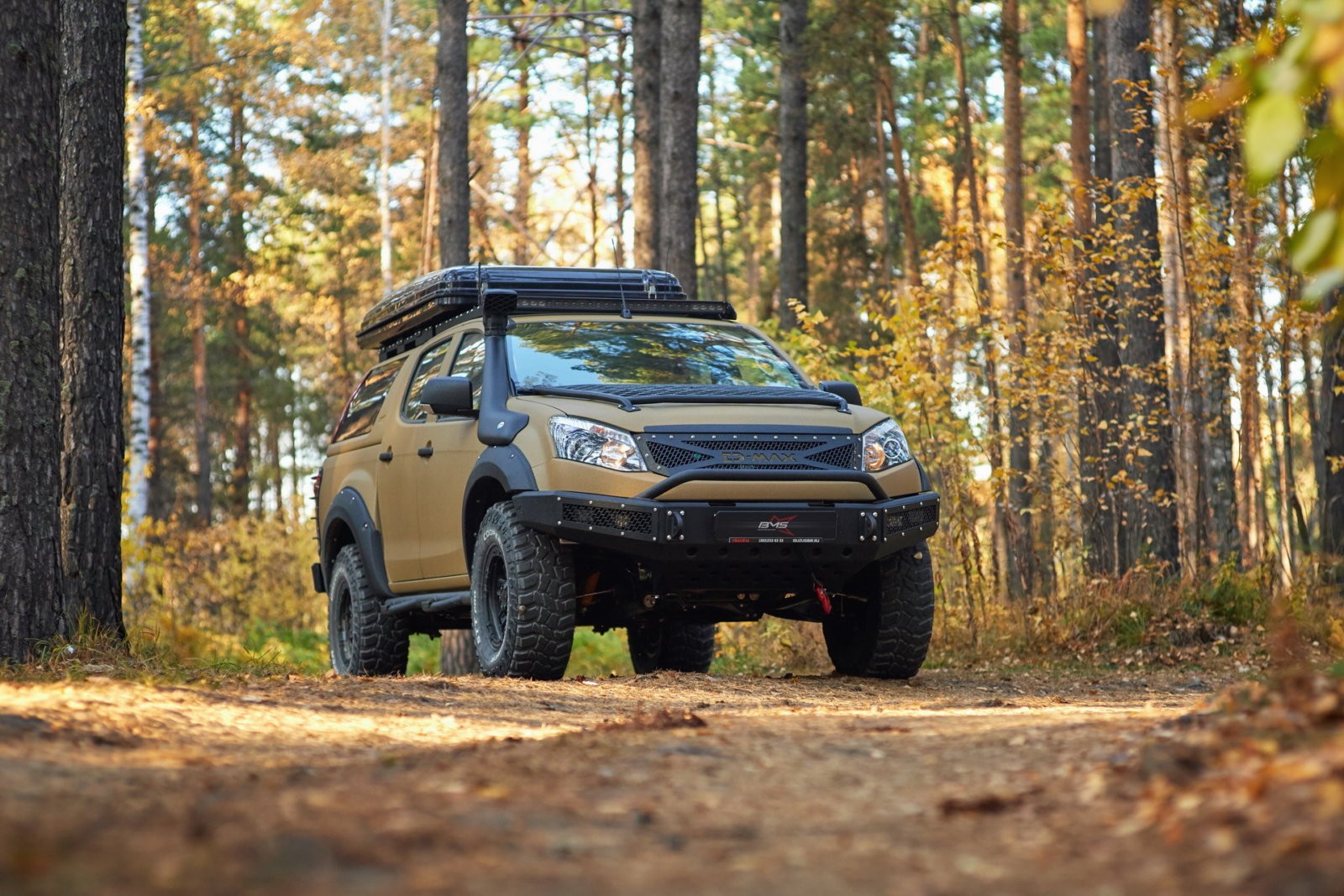

The BMS PRO-Line aftermarket front bumper is designed for owners who use the Isuzu D-Max beyond city streets. It adds practical protection and recovery capability for hunting trips, fishing routes, outdoor travel, and everyday work in demanding conditions.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060092
Application: Isuzu D-MAX 2012-2021, 2nd generation
Installation method: requires cutting the lower section of the OEM bumper and removing the OEM tow loops
Mounting kit: included

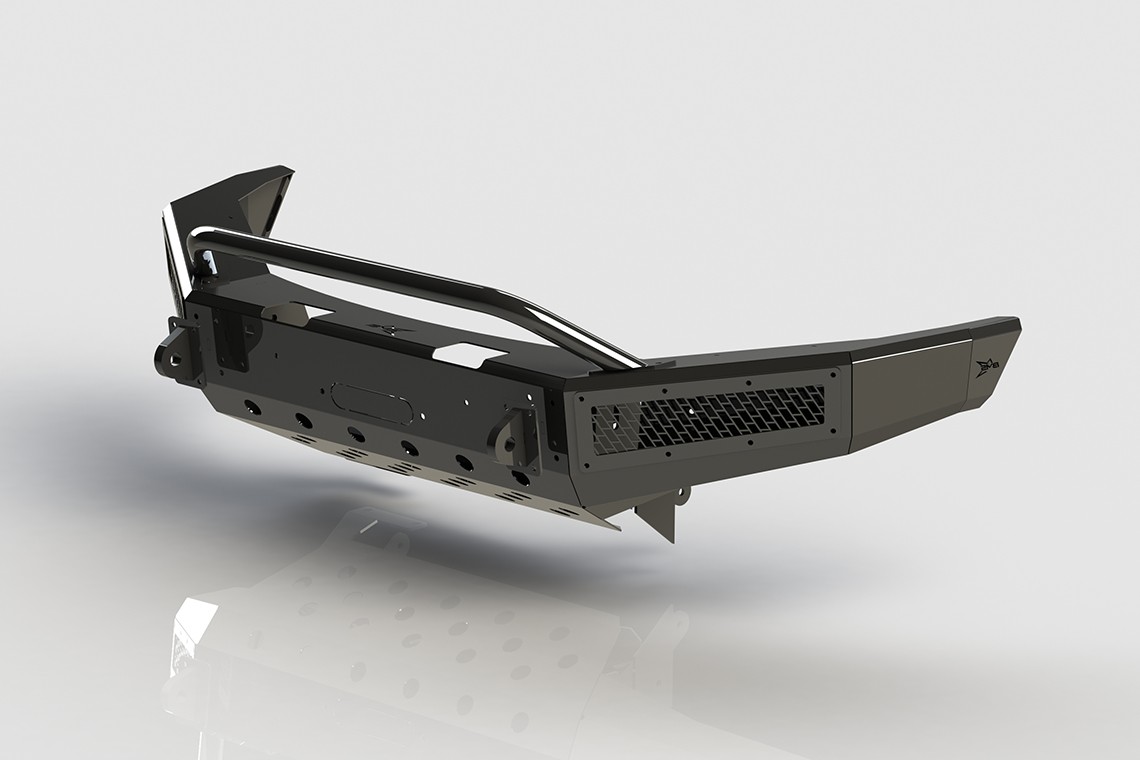

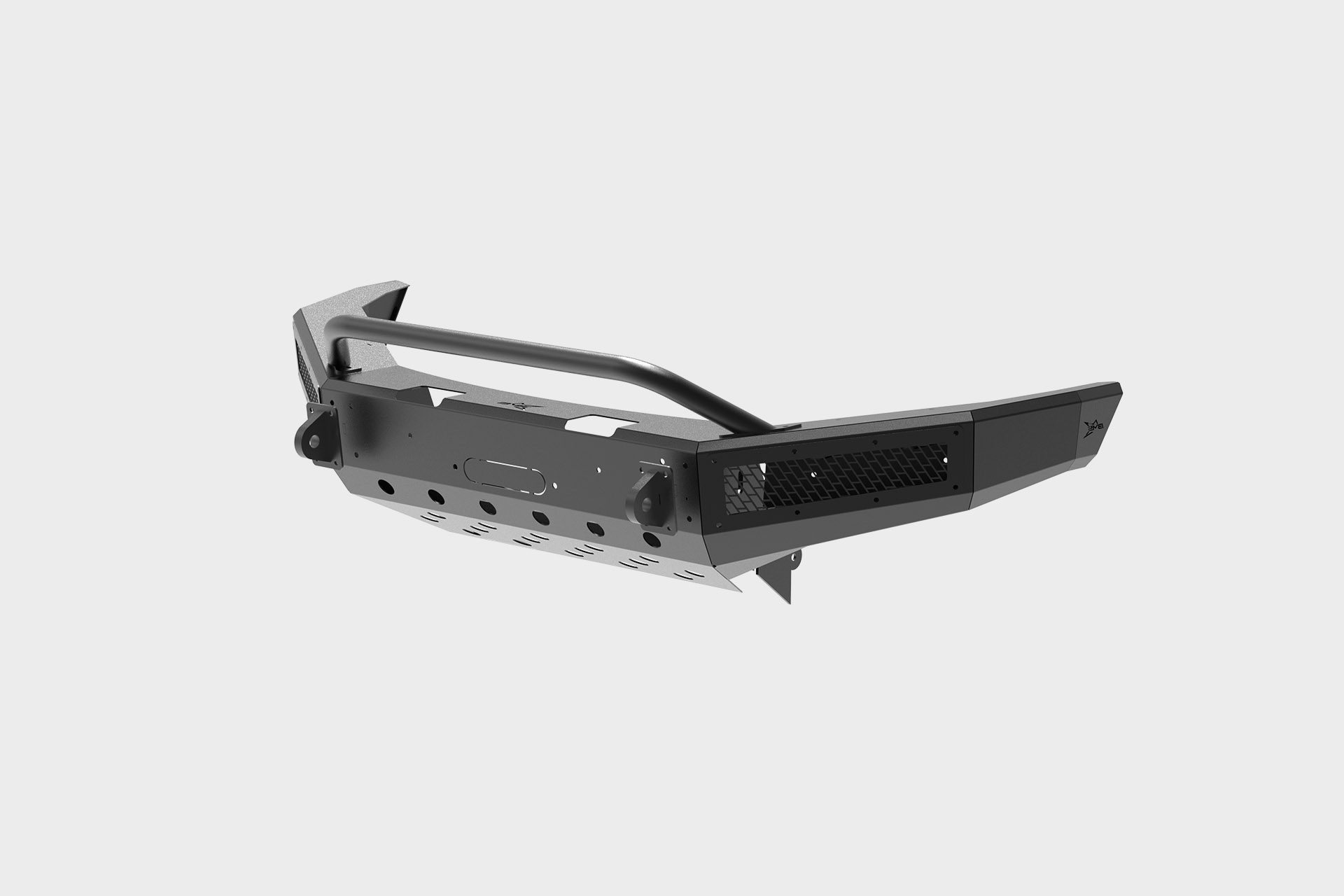

Features of the complete set: off-road bumper, mounting brackets, bolt kit, bull bar, product passport, certificate of conformity, winch mount, and 2 recovery points
Winch mount: included
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots, WxHxD: 95x60x75 mm
Slots for parktronic sensors: not present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 194x47x65 cm (76.4×18.5×25.6 in)
Package weight: 67 kg (147.7 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 3 mm steel A 620
Brackets material: 5 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube

FAQ

Why install a heavy duty front bumper on an Isuzu D-Max?

Many owners consider a steel bumper only after the factory plastic bumper has already been damaged. This can happen on a rough road, during a tight maneuver, or when a hidden rock, stump, or raised section of ground is concealed by grass.

If the D-Max is regularly used for remote work, outdoor travel, hunting, or fishing, installing the BMS PRO-Line front bumper in advance adds useful protection and helps prepare the truck for conditions beyond paved roads.

What modifications are required during installation?

Installation requires trimming the lower section of the factory plastic bumper and removing the factory tow points, as the BMS PRO-Line bumper includes its own built-in recovery points.

The body and frame do not need to be cut, and the required mounting brackets are included. Because the finished appearance depends on accurate trimming and alignment, professional installation by a shop experienced with aftermarket steel bumpers is recommended.

What winch can I install in the Isuzu D-Max bumper?

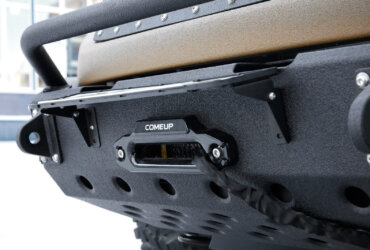

The BMS PRO-Line front bumper is compatible with WARN VR EVO 10-S and WARN VR EVO 12-S winches with synthetic rope.

Other winches may also fit, but the housing dimensions, mounting pattern, and fairlead size should be checked before installation. The required pulling capacity should be selected based on the truck’s fully loaded weight, including passengers, cargo, tools, and other equipment.

Can I lift the truck with a Hi-Lift jack using this bumper?

In an emergency, an experienced user may lift the Isuzu D-Max from the BMS PRO-Line front bumper. The lifting point is selected according to the situation, but the built-in recovery points may be used with soft shackles to transfer the load.

A Hi-Lift jack can be unstable and dangerous. It may slip or lower the vehicle suddenly, and the bumper coating can also be damaged. This method should only be used when safer recovery options are not available and by someone familiar with proper Hi-Lift operation.

How can I prevent rust on the steel bumper?

The BMS PRO-Line bumper is treated with a zinc-containing primer and finished with a matte black polymer coating.

After driving through mud or on salted winter roads, rinse the bumper thoroughly, especially around the lower edges, welded joints, and mounting areas. Inspect the finish regularly for chips and scratches caused by branches, rocks, and sand. Clean and treat damaged areas promptly to help prevent corrosion from spreading underneath the coating.

What should I choose for the Isuzu D-Max – a heavy duty bumper or a bull bar?

A bull bar is an external hoop mounted in front of the factory bumper. It mainly protects the center of the front end, but because it extends forward, it can make the front overhang longer and reduce approach clearance.

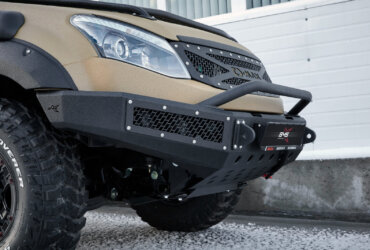

The BMS PRO-Line heavy duty front bumper replaces the lower section of the factory bumper, mounts through reinforced structural points, and improves the D-Max’s front-end geometry. It also supports winch installation and includes built-in recovery points. A bull bar is often chosen mainly for appearance, while a replacement steel bumper provides more practical protection and off-road function.

Do I need a heavy duty front bumper for remote forest and lake travel?

It is not essential for highway driving, but access roads to remote lakes, campsites, fishing areas, and work locations can include deep forestry ruts, soft ground, damaged tracks, and steep approaches.

In these conditions, the BMS PRO-Line front bumper helps the Isuzu D-Max catch the ground less often, protects the front end, and provides the option to use a winch if the truck cannot continue under its own power.

Can this bumper be used on public roads?

This is an aftermarket front bumper, and road-use rules can vary by location. If your Isuzu D-Max is driven on public roads, check local requirements before installation.
