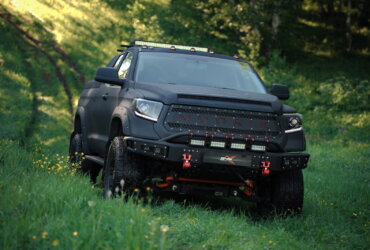

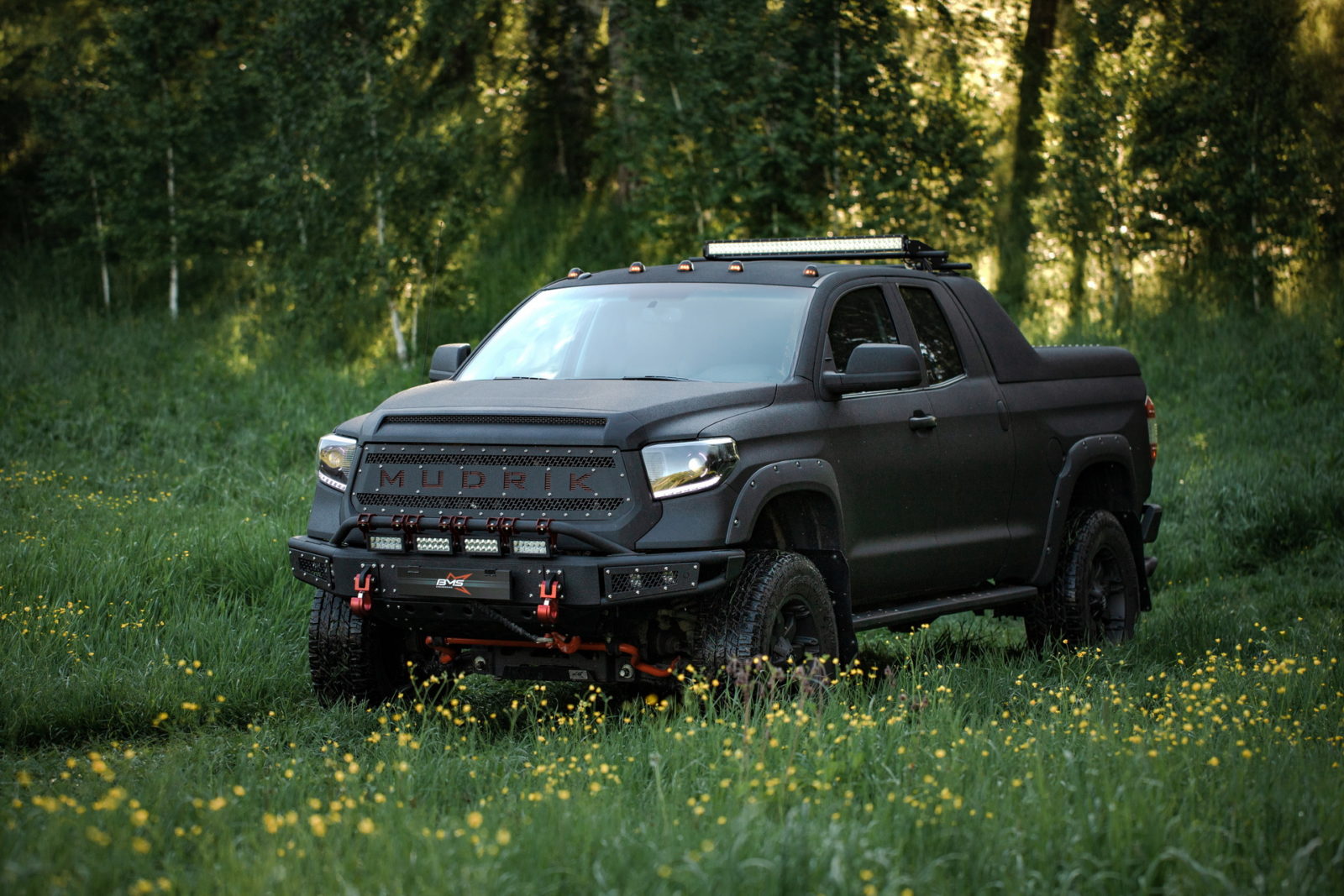

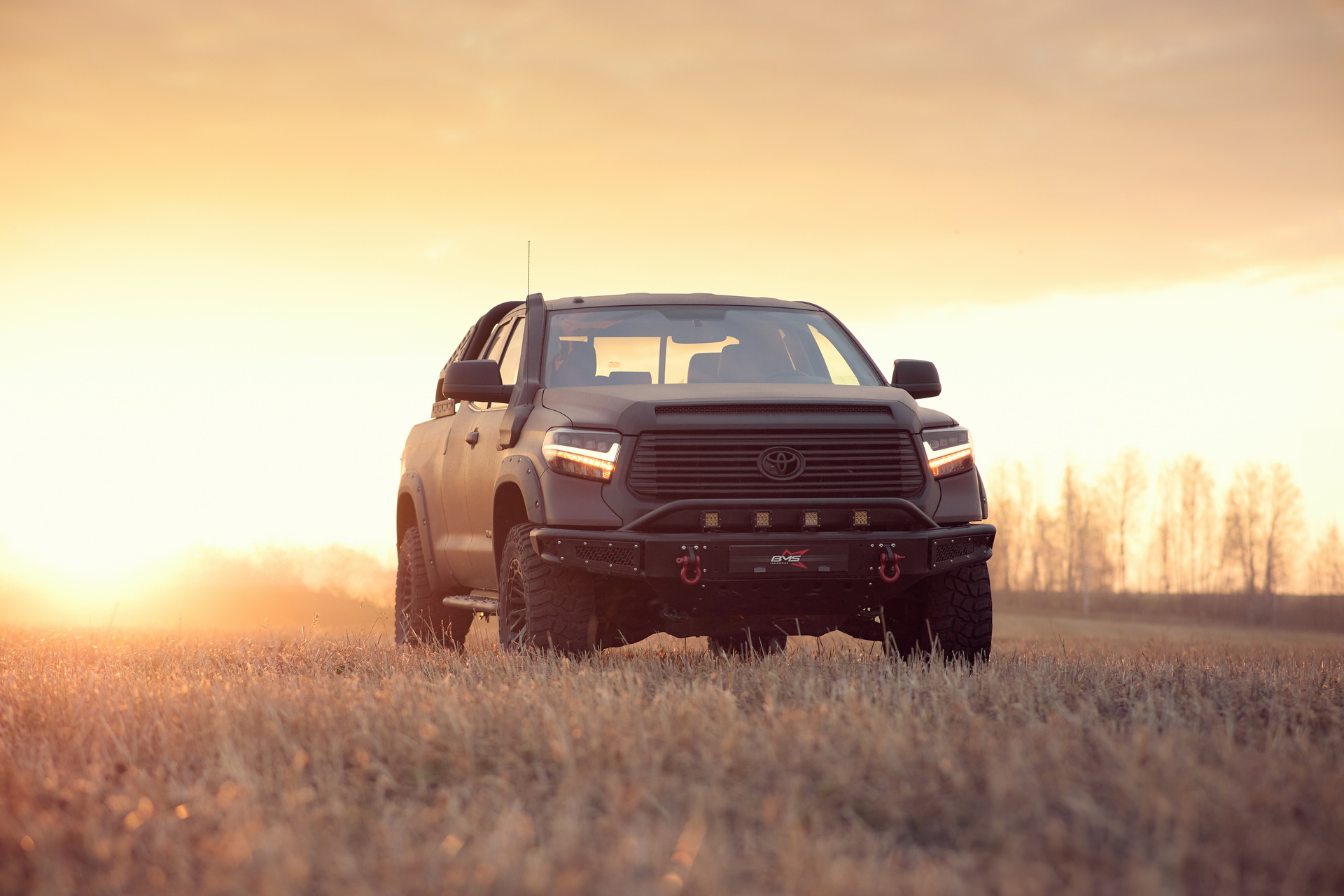

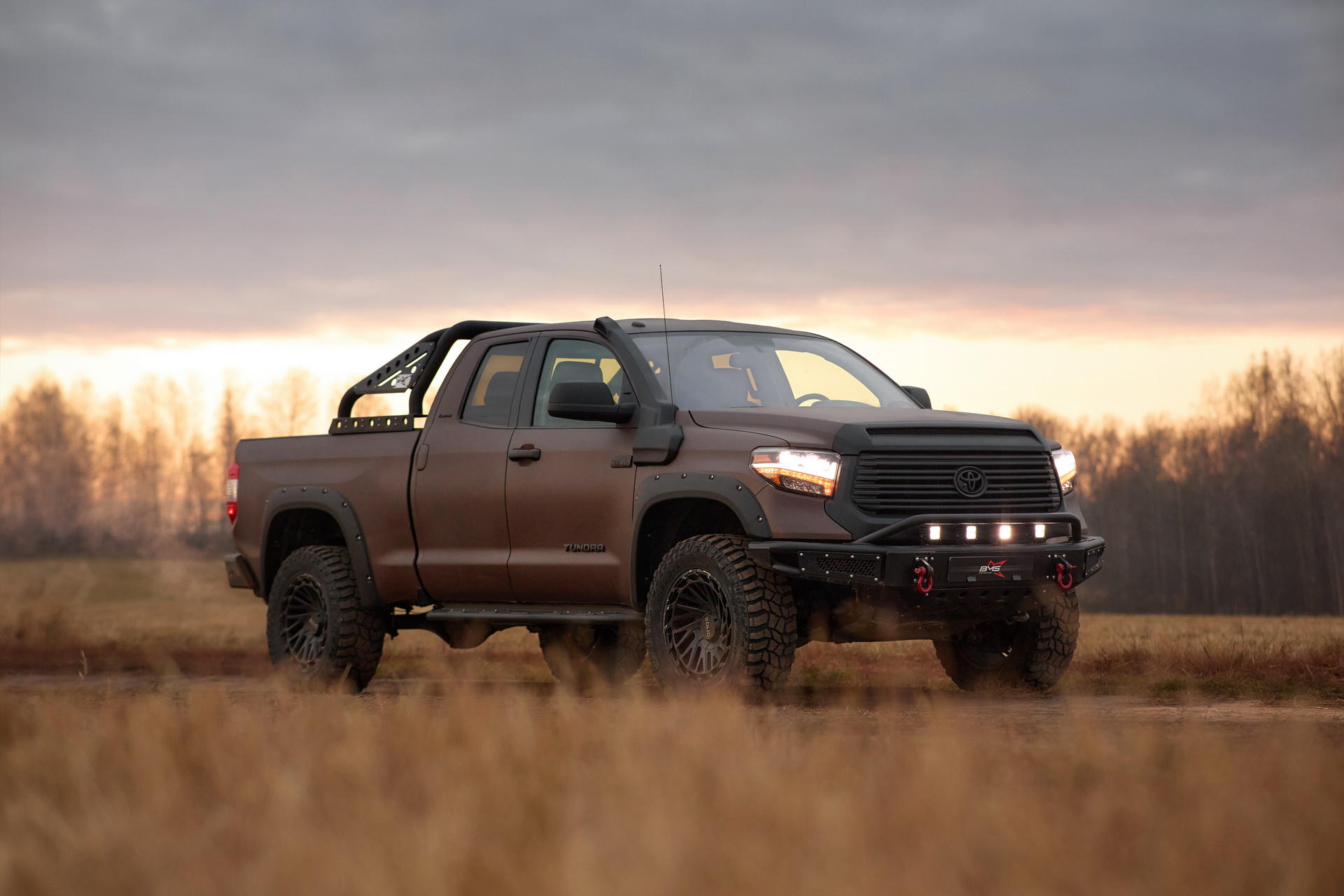

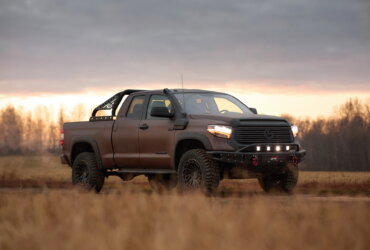

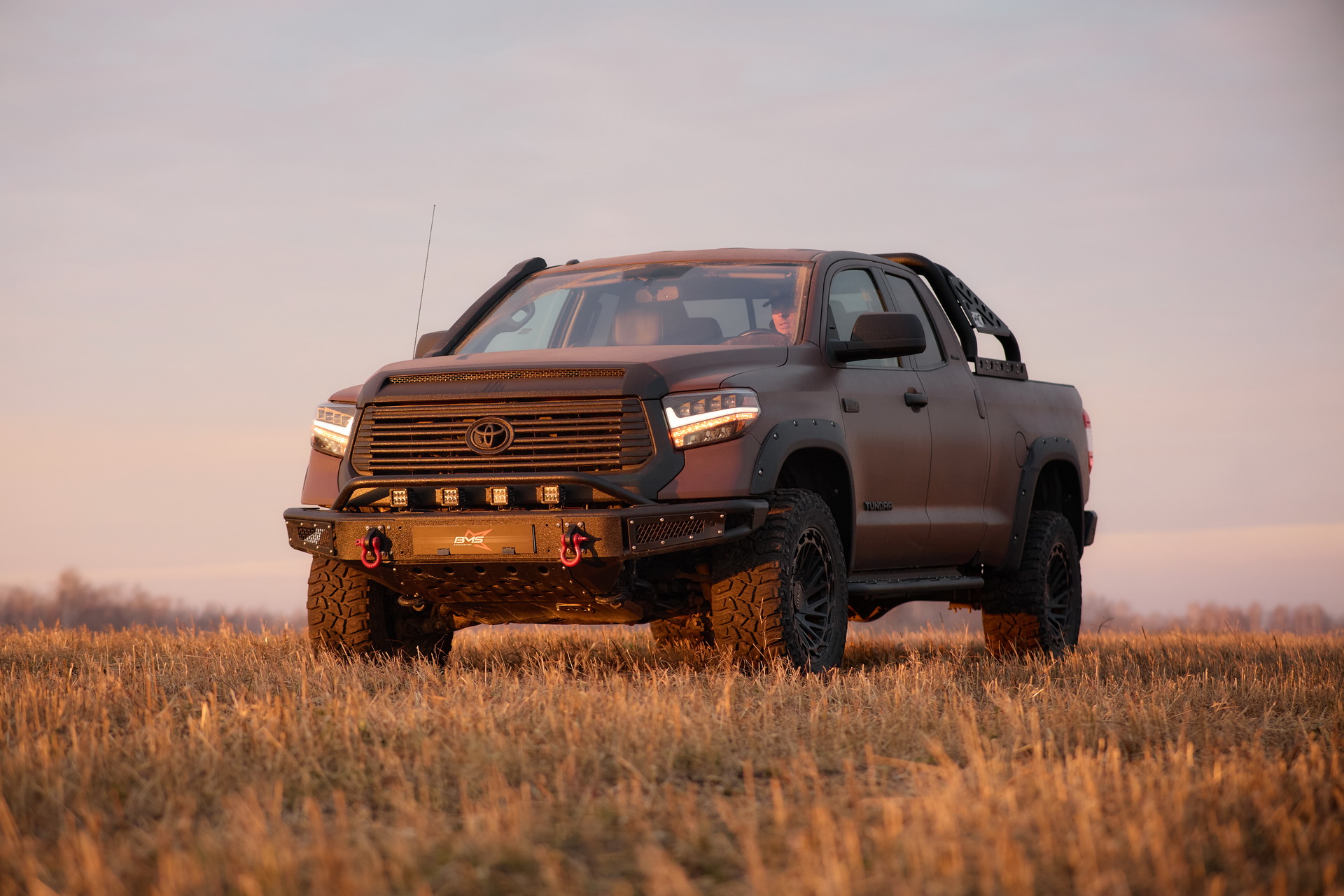

Front Bumper BMS ALFA for Toyota Tundra 2014-2021

More front-end strength, better clearance over rough terrain, accessible recovery hardware, and winch-ready capability give the 2014–2021 Toyota Tundra more freedom beyond pavement.

The Tundra has earned a reputation as a dependable truck for outdoor travel, long-distance trips, hunting, fishing, and work around rural property. Some owners load it with expedition gear, while others simply need a pickup that stays comfortable after the pavement ends. Rough access roads, rocky sections, forest tracks, and steep climbs are all places where stronger front-end protection becomes a useful part of preparing the truck.

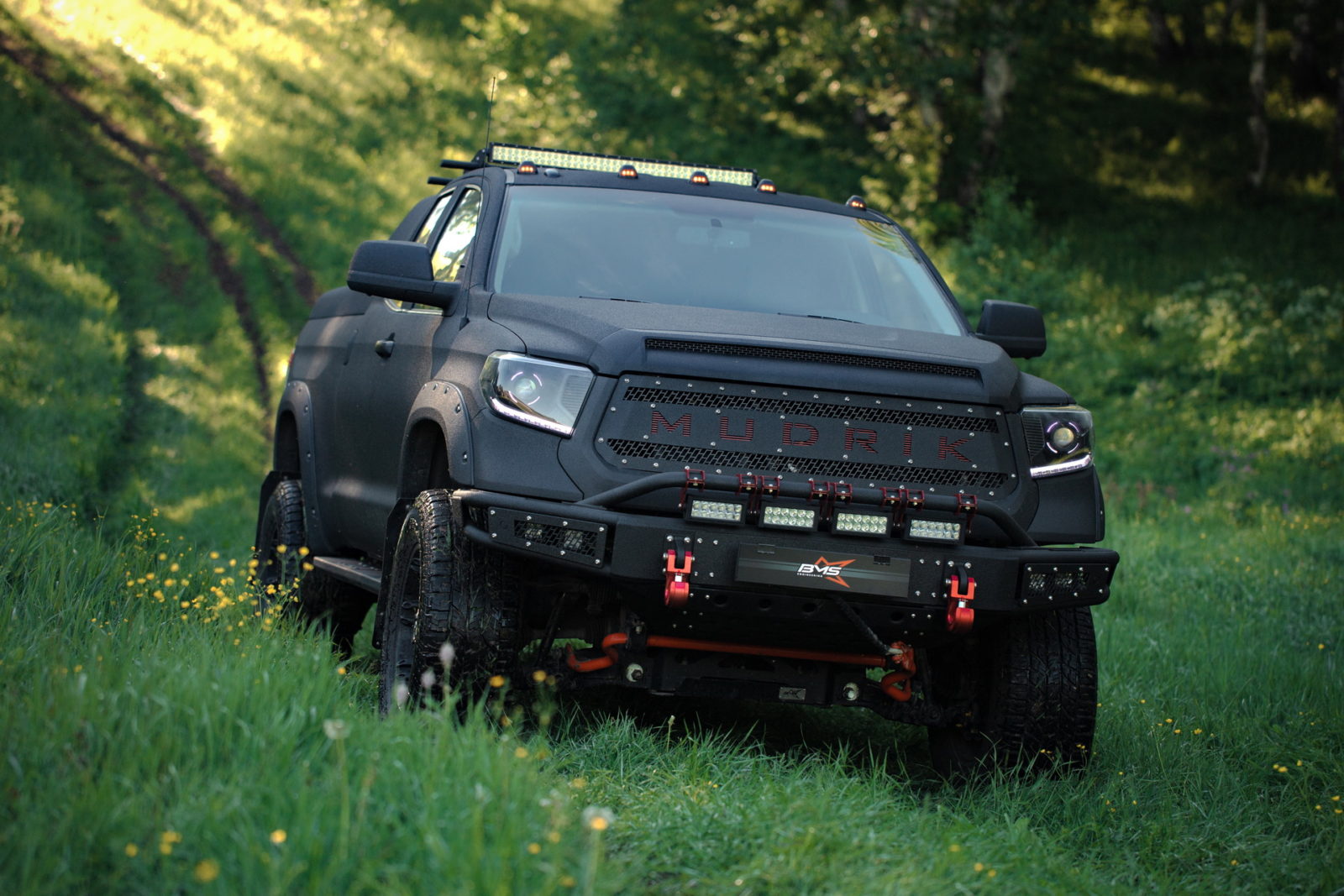

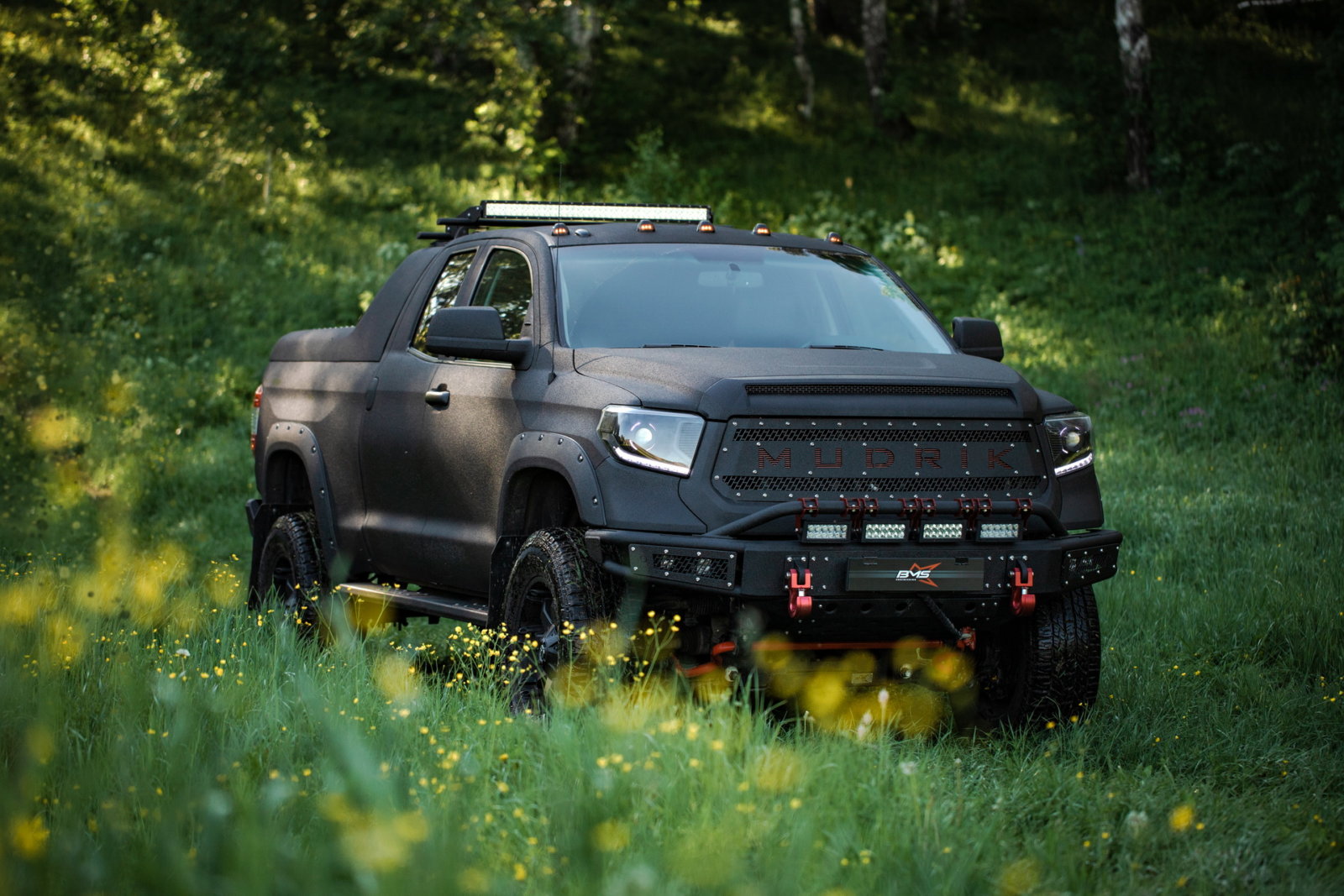

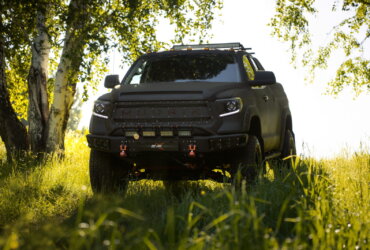

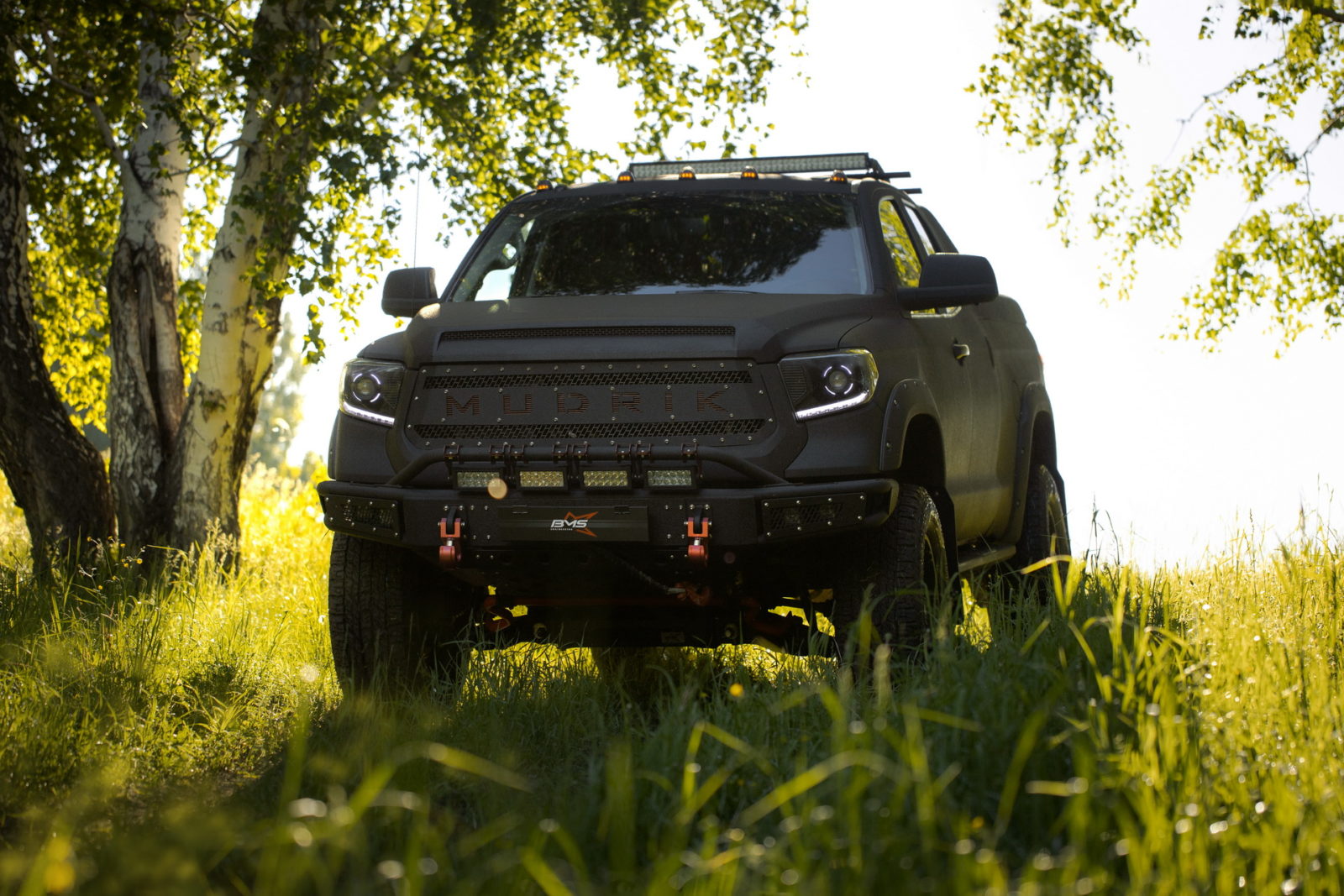

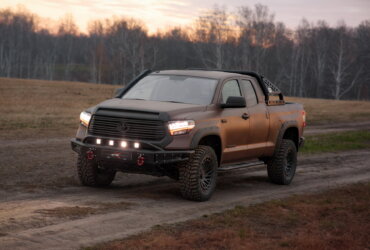

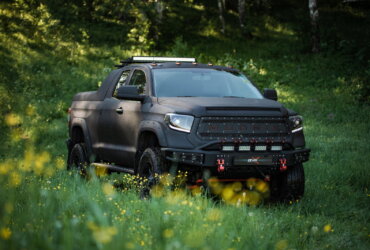

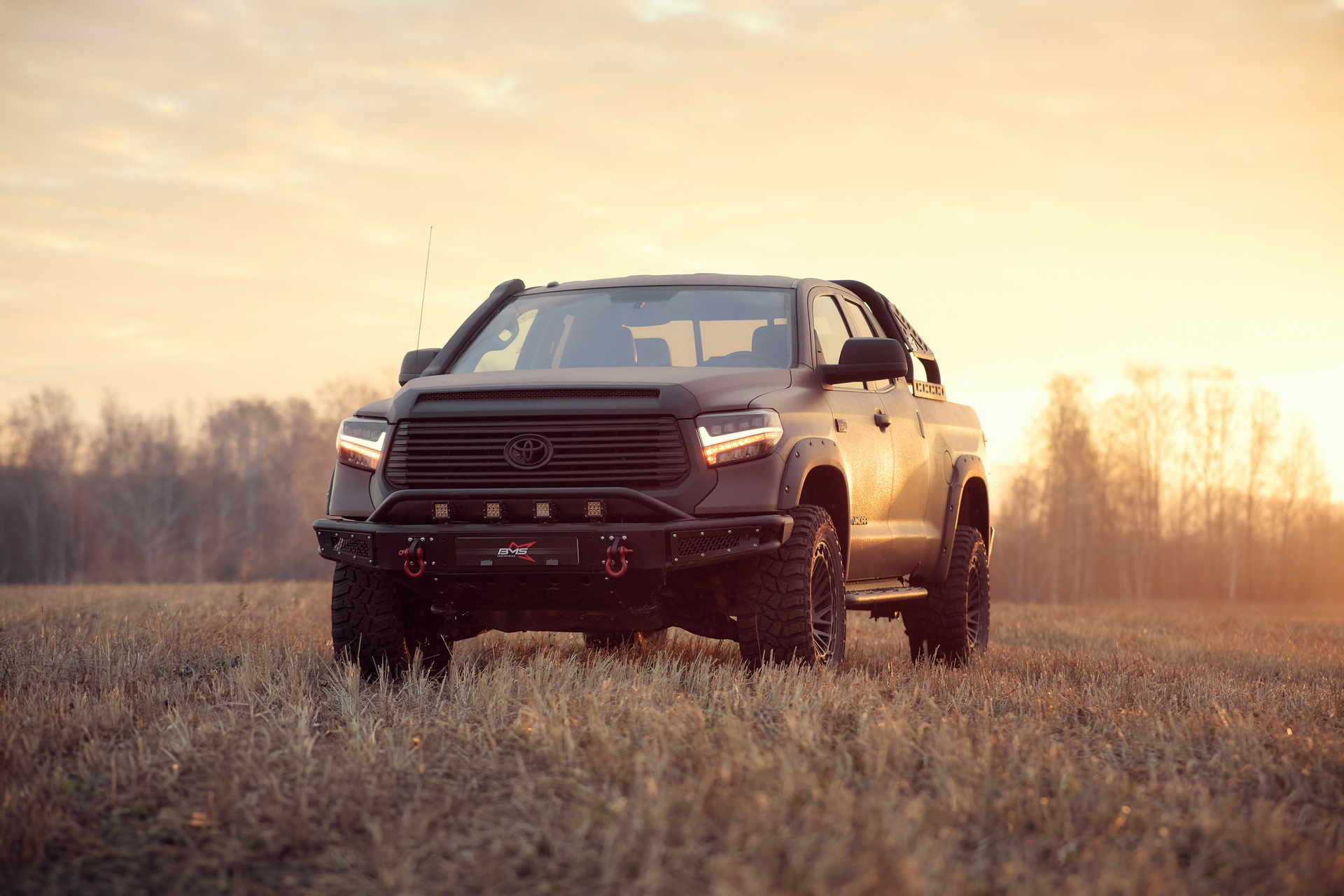

The BMS ALFA steel front bumper is built for that kind of use. Its steel construction is stronger than the factory plastic bumper and better suited to occasional contact with rocks, branches, and other obstacles. Improved approach clearance also helps the Tundra catch the ground less often on sharp terrain changes and steep climbs.

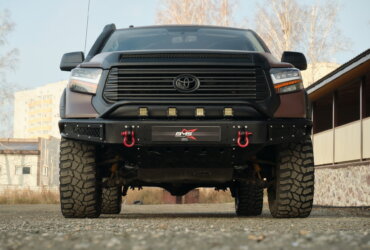

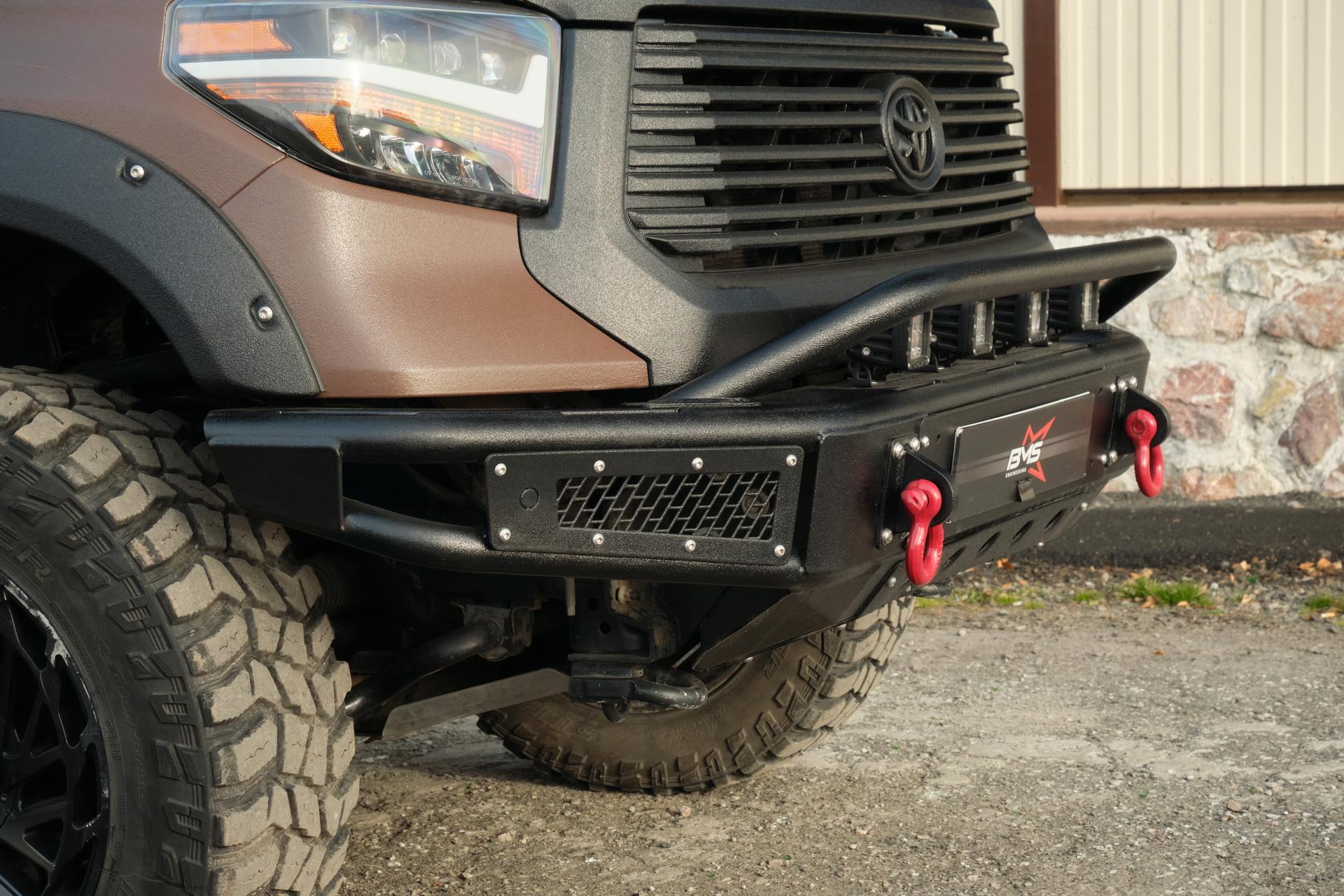

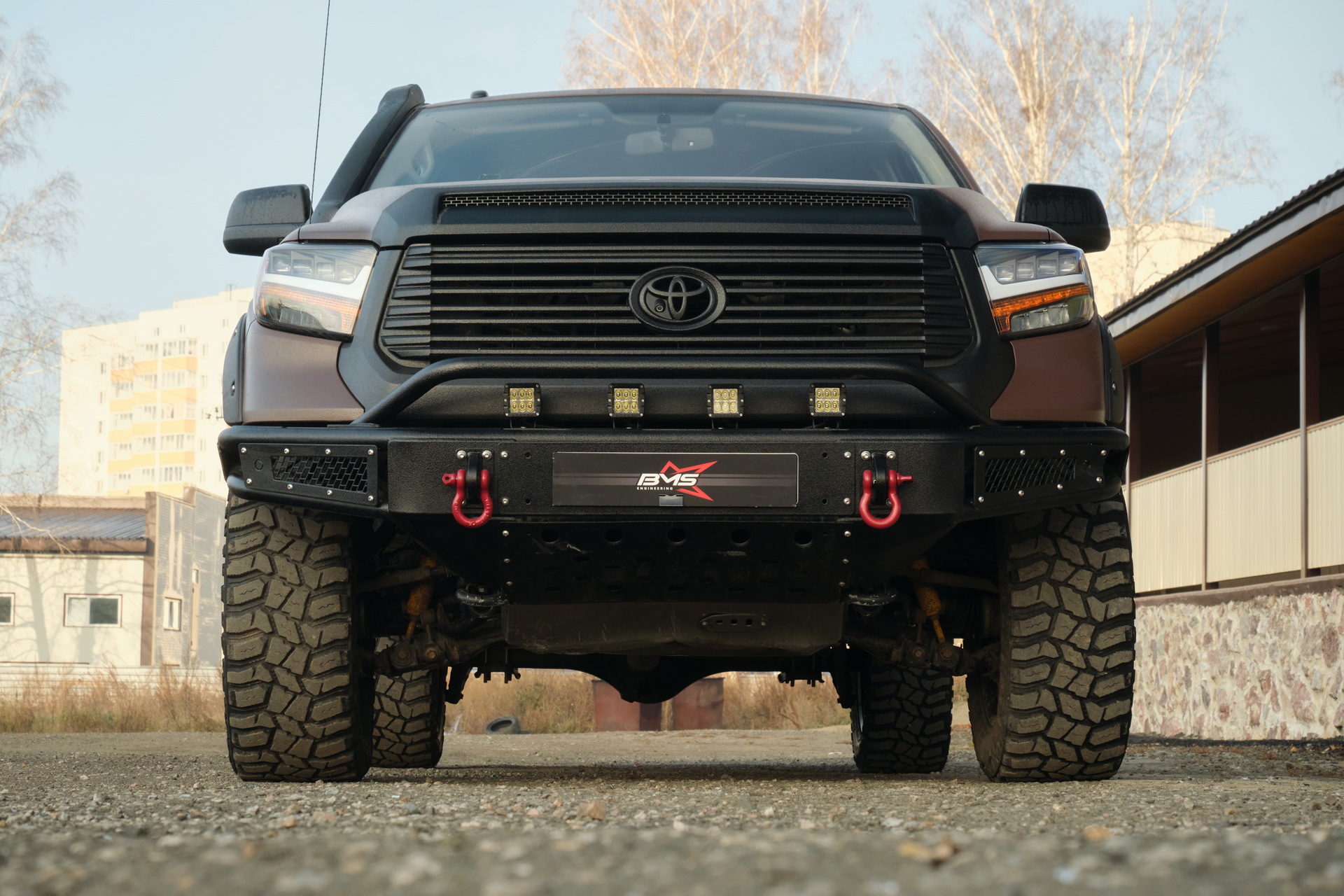

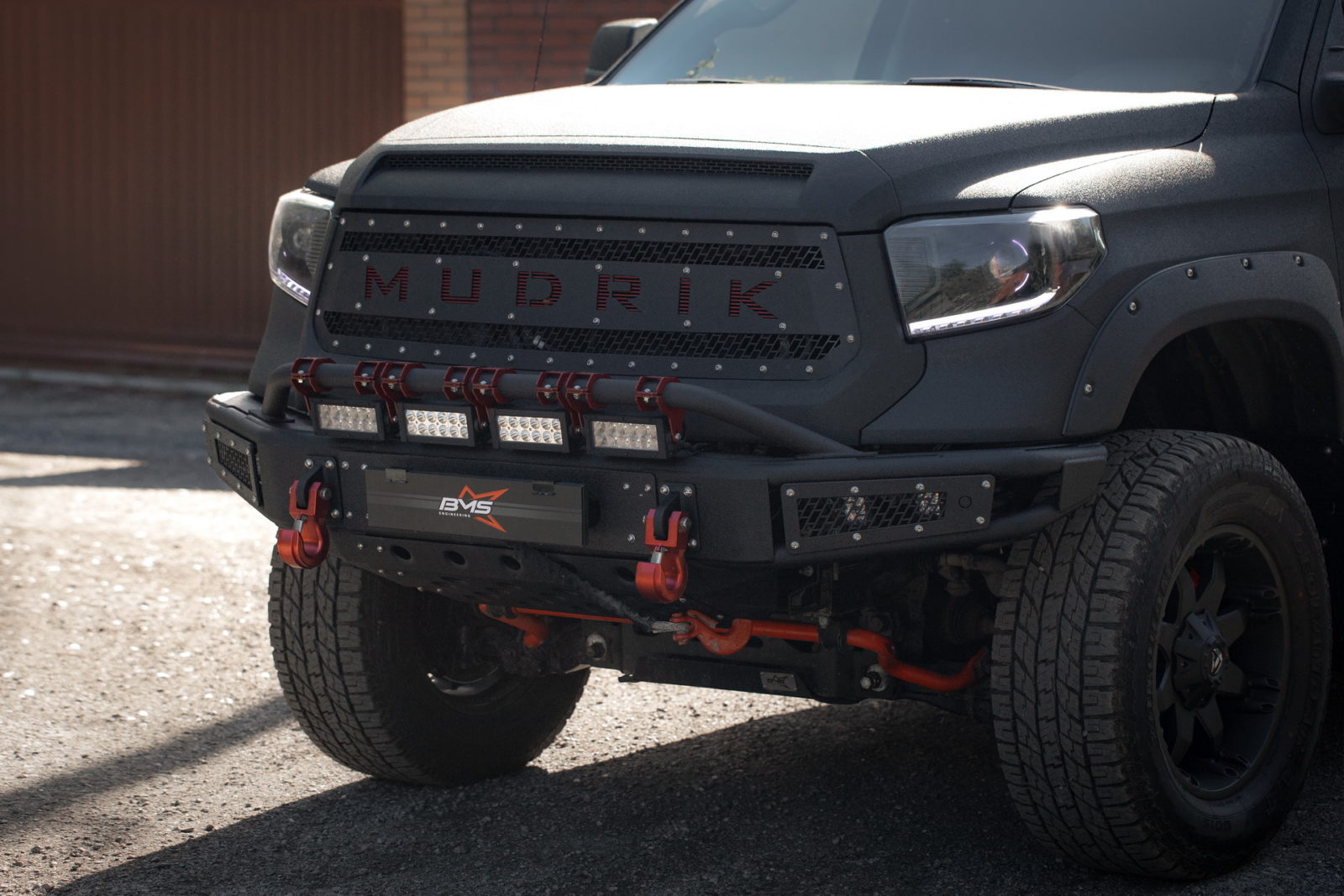

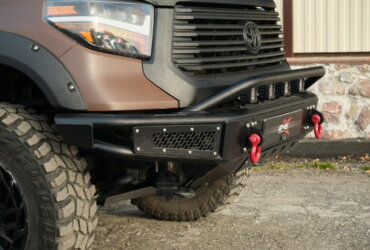

Two external heavy-duty D-ring mounts make recovery gear easy to access when the truck becomes stuck in mud, soft ground, or deep snow. If a recovery strap or rope does not have a hook, attach it to the built-in recovery points using compatible, properly rated shackles. This avoids reaching underneath the truck for the factory tow point when conditions are already difficult.

Installation does not require modification of the frame or body. The BMS ALFA also includes a built-in winch mount, giving the Tundra a valuable self-recovery option when the truck gets stuck away from busy roads and another capable vehicle is not available.

Designed to complement the Tundra’s full-size proportions, the BMS ALFA aftermarket front bumper adds useful off-road function without looking out of place on the truck. It is a solid choice for owners who want to prepare their Toyota Tundra for more demanding trips and have more freedom when choosing where the road leads.

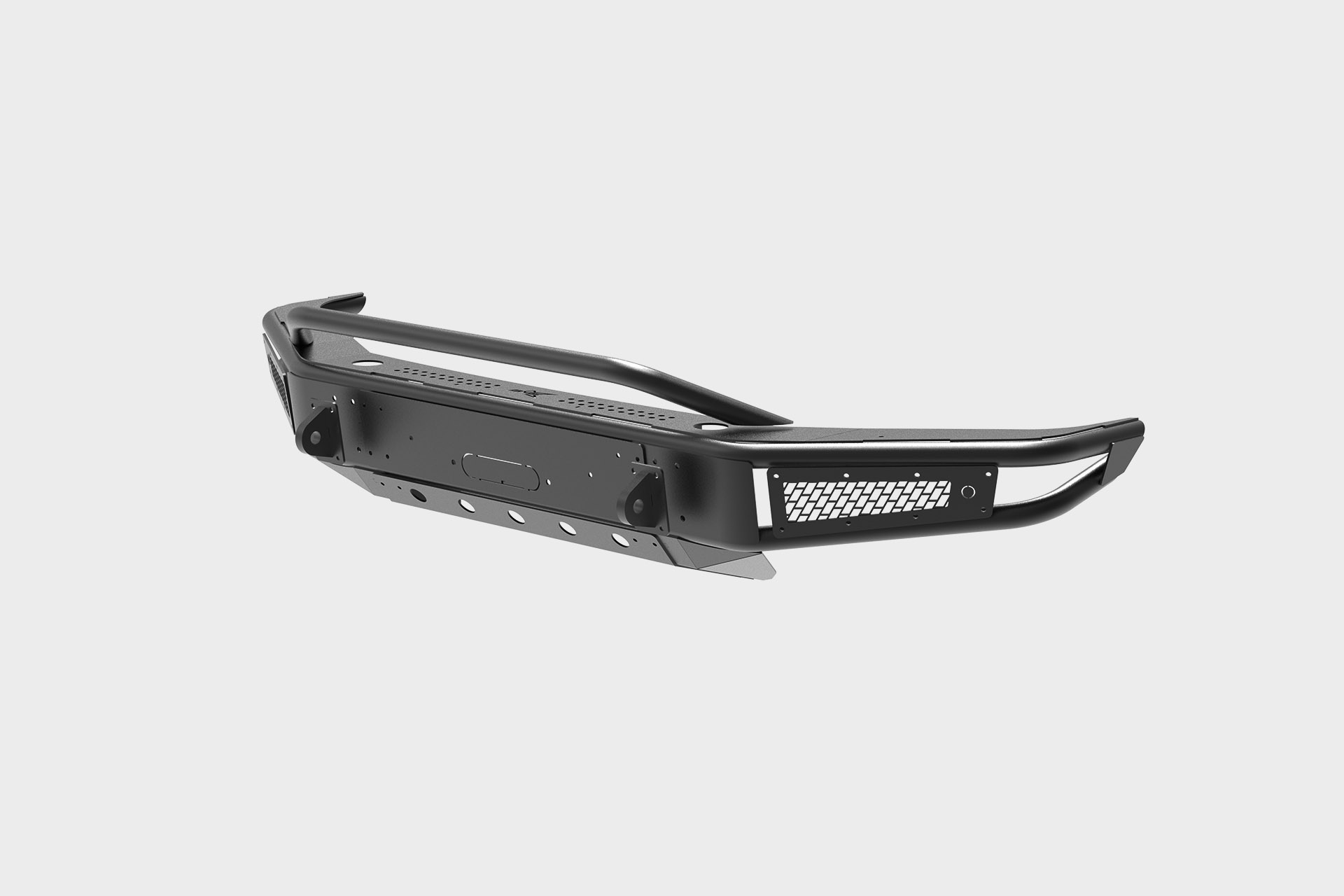

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060005
Application: Toyota Tundra 2014-2021 2nd generation, 2nd facelift
Installation method: fully bolt on
Mounting kit: included

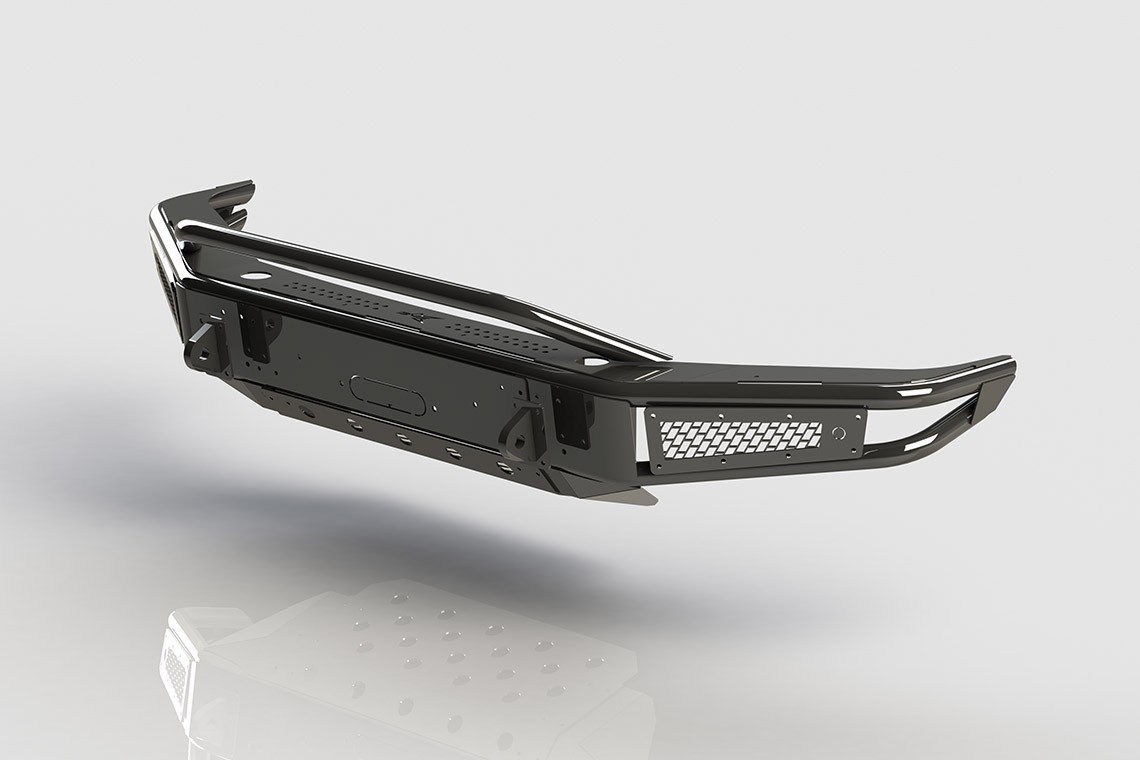

Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, bull bar, product passport, and 2 pcs recovery points
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: WxHxD: 95x60x75 mm
Slots for parktronic sensors: present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 210x45x60 cm (82.7×17.7×23.6 in)
Package weight: 67 kg (147.7 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 4 mm steel A 516-55
Brackets material: 6 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube

FAQ

Why install a heavy duty front bumper on a Toyota Tundra?

A heavy duty front bumper adds stronger front-end protection and better prepares the Tundra for travel beyond paved roads. The steel bumper is stronger than the factory plastic bumper, while improved approach clearance helps the truck handle uneven ground and difficult sections with less risk of catching the front end.

The BMS ALFA also adds practical off-road function. A winch can be installed inside the bumper, while external recovery points make it easier to connect recovery gear when the heavy pickup needs assistance. The bumper mounts to the frame, transferring recovery loads through the vehicle’s structural mounting points.

Does the Toyota Tundra require any modification to install the BMS ALFA?

No. Installation does not require trimming factory components or drilling the body. The factory bumper is removed, and the BMS ALFA mounts to the frame using the included brackets and hardware.

The bumper is designed as a bolt-on upgrade for the 2014–2021 Toyota Tundra.

Will the factory parking sensors still work after installation?

Yes. The BMS ALFA includes openings for the factory parking sensors, allowing them to be transferred from the original bumper.

The sensors normally continue to operate as intended after installation, although sensitivity adjustment or recalibration may occasionally be required.

Can I install the bumper now and add a winch later?

Yes. The BMS ALFA can be installed without a winch and upgraded later because the built-in winch mount is already part of the bumper.

However, installing the winch at the same time as the bumper is usually more convenient because it avoids removing and reinstalling the bumper later.

What winch is suitable for hidden installation in the Toyota Tundra bumper?

The BMS ALFA is compatible with WARN VR EVO 10-S and WARN VR EVO 12-S winches with synthetic rope, as well as similar models.

Choose the winch according to the Tundra’s fully loaded weight, including passengers, cargo, and additional equipment. If you select another winch, compare its housing dimensions and mounting pattern with the available space inside the bumper before installation.

What are the recovery points on the bumper used for?

The BMS ALFA includes two external heavy-duty D-ring mounts for vehicle recovery. Their position makes it easy to connect recovery equipment when the Tundra is stuck in mud, snow, or a deep rut.

If the recovery strap or rope does not have a hook, attach it to the built-in recovery points using compatible, properly rated shackles. Keep the pull as straight as possible along the frame and avoid sudden side loads. Properly rated recovery pulleys or snatch blocks can be used when the pulling direction needs to be changed.

Is a heavy duty bumper useful for remote northern travel?

It is not essential if the entire trip stays on maintained roads and around developed tourist areas. Its advantages become more useful on rocky tracks, washed-out access roads, deep ruts, and remote routes away from regular traffic.

Improved approach clearance helps the Tundra clear uneven terrain more easily, while the steel front bumper handles occasional contact with rocks and other obstacles better than factory plastic. A winch installed inside the bumper also provides a valuable self-recovery option when another capable vehicle is not nearby.

How much protection does the bumper provide during an accidental impact?

The BMS ALFA steel front bumper is stronger than the factory plastic bumper and can help reduce damage to the radiator, grille, and other front-end components during light contact with rocks, stumps, or similar obstacles.

It does not provide complete protection. A strong impact can still damage the bumper, mounting brackets, frame, body, and components behind it.

Can the BMS ALFA be used for everyday driving?

Yes. The BMS ALFA can remain installed on a daily-driven Tundra that spends most of its time in the city or on the highway.

The truck stays ready for trips beyond pavement, with accessible recovery points and the option to keep a winch installed inside the bumper whenever self-recovery capability is needed.

Can this bumper be used on public roads?

This is an aftermarket front bumper, and road-use rules can vary by location. If your Toyota Tundra is driven on public roads, check local requirements before installation.
