| Manufacturer: | BMS Engineering |
| Material: | Steel |
| Application: | Toyota Hilux 2018-2020 8th generation facelift |
| Package size: | 210x98x47 cm (82.7x38.6x18.5 in) |
| Package weight: | 85 kg (187.4 lb) |
| Performance part: | Yes |
PAY ATTENTION!

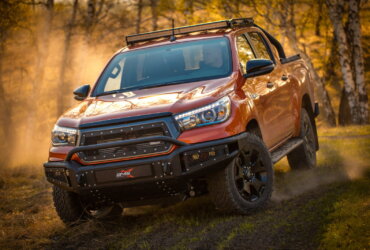

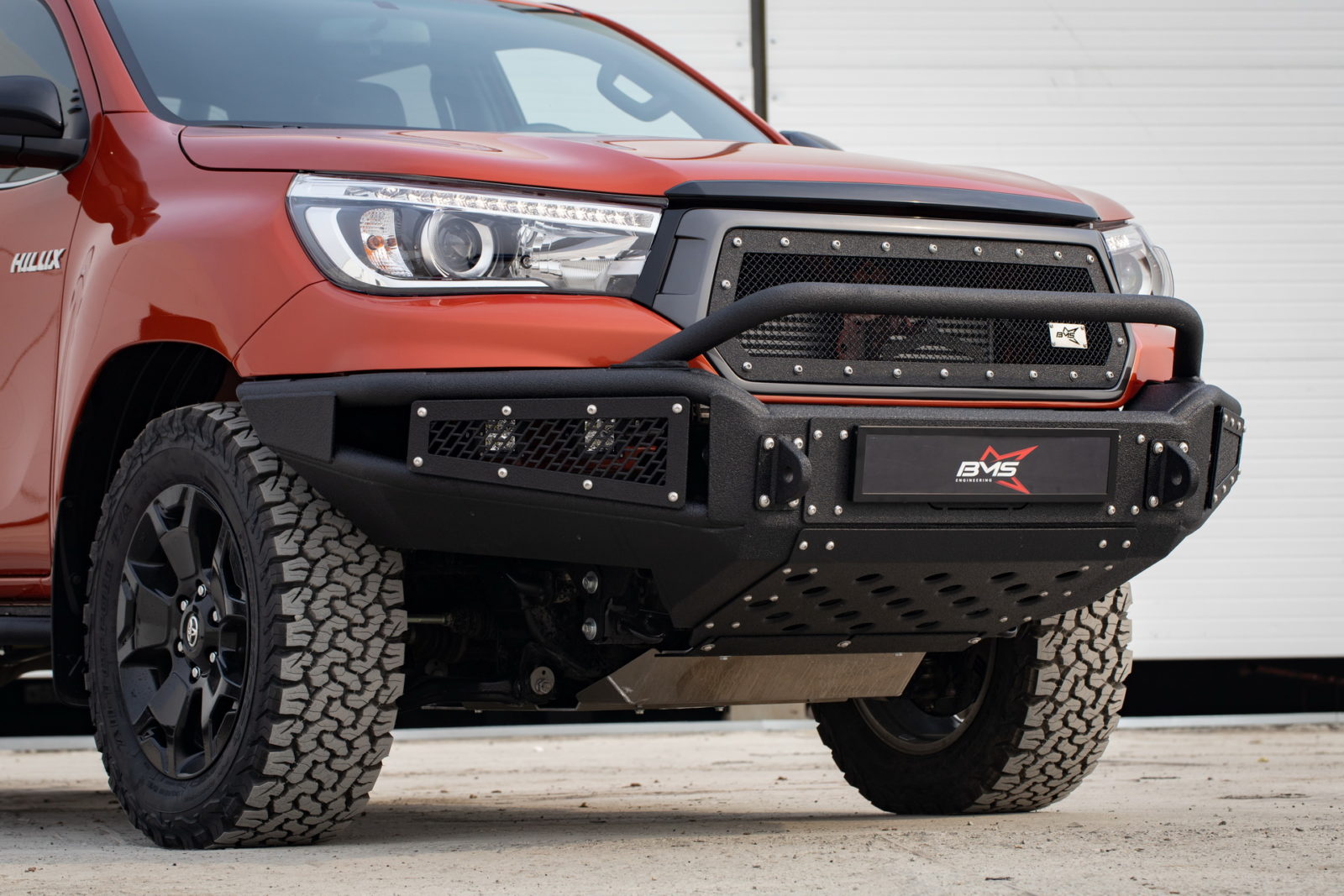

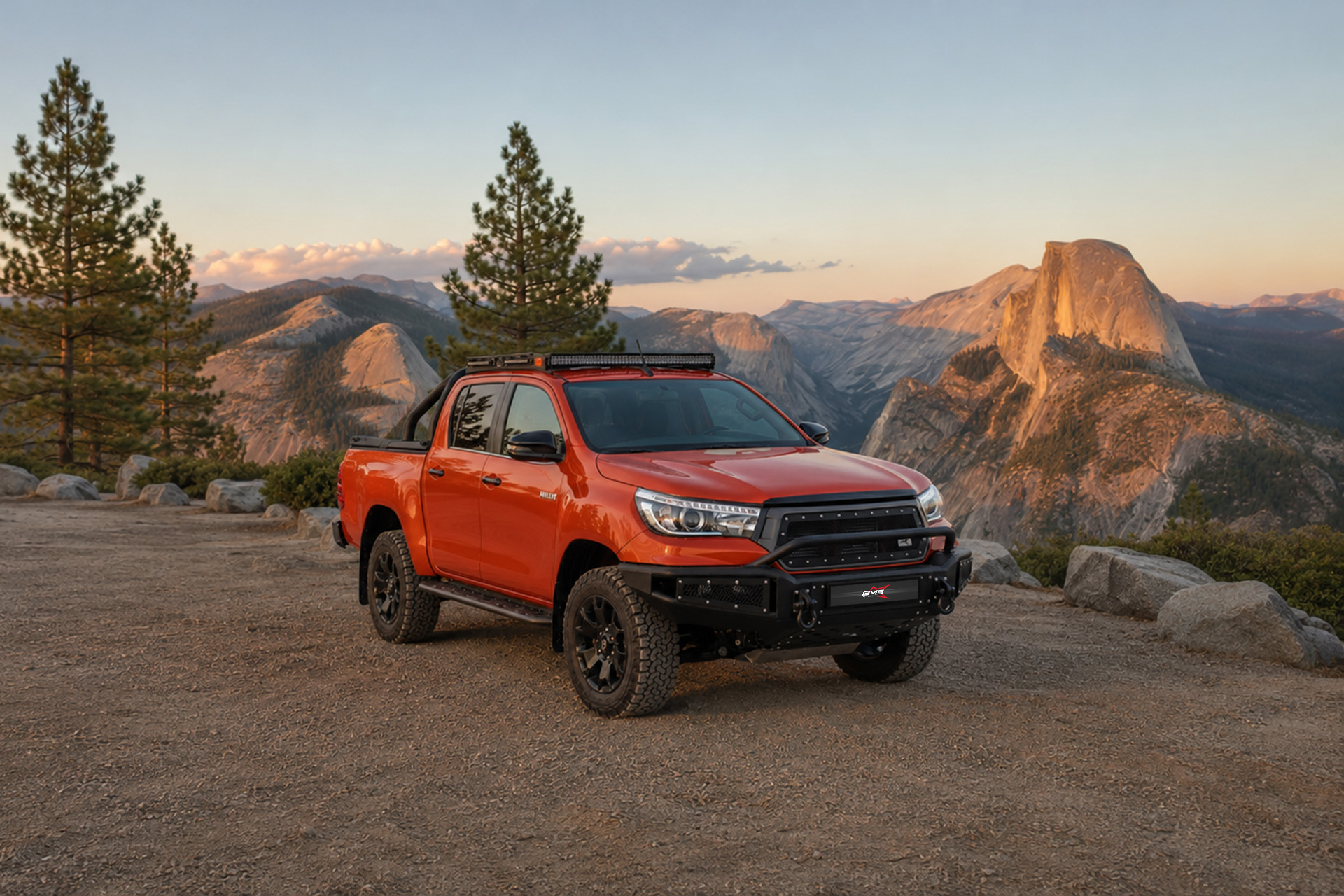

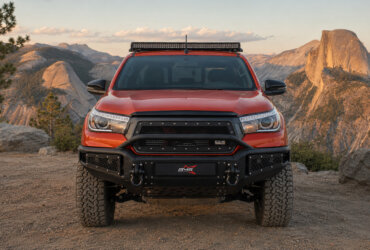

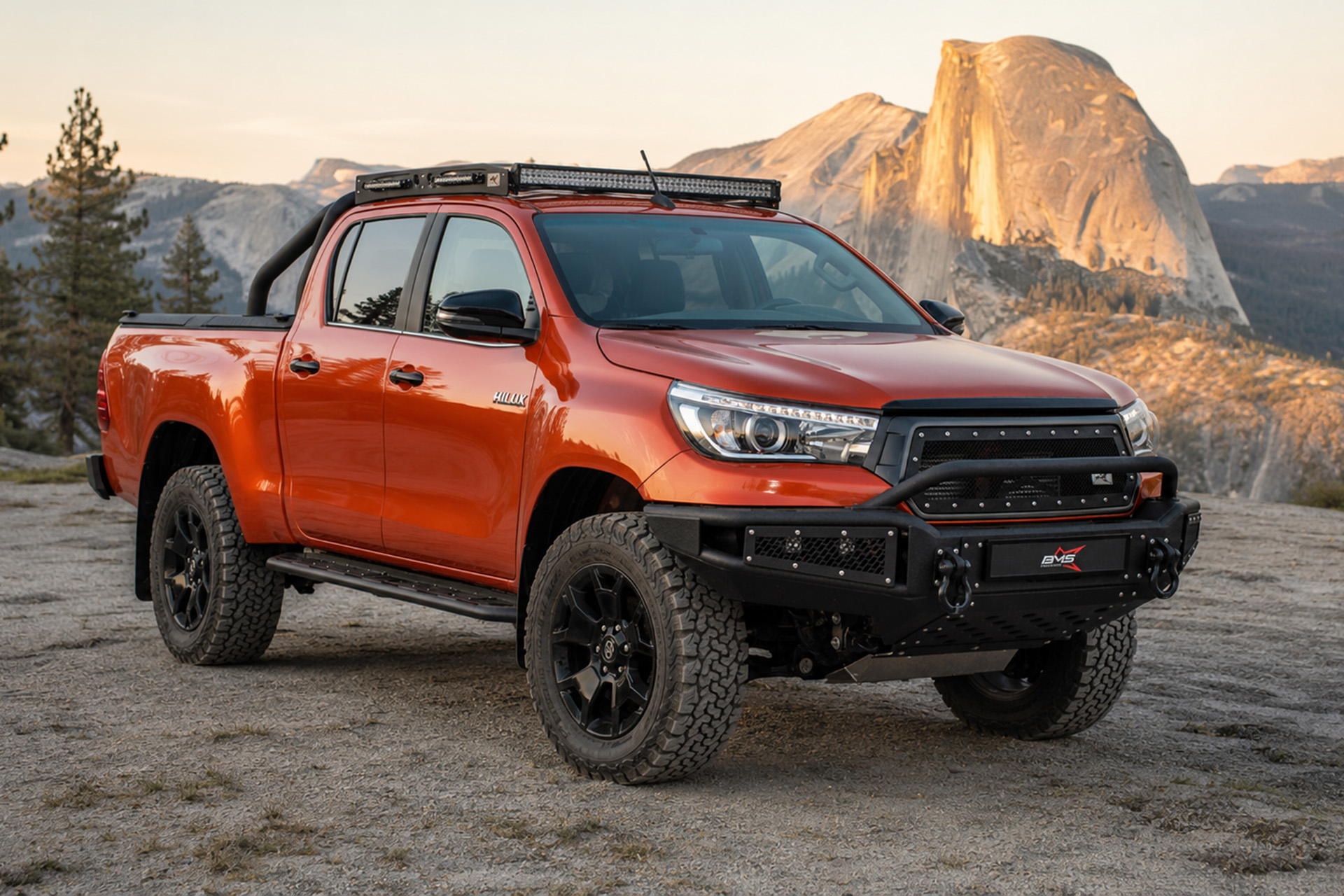

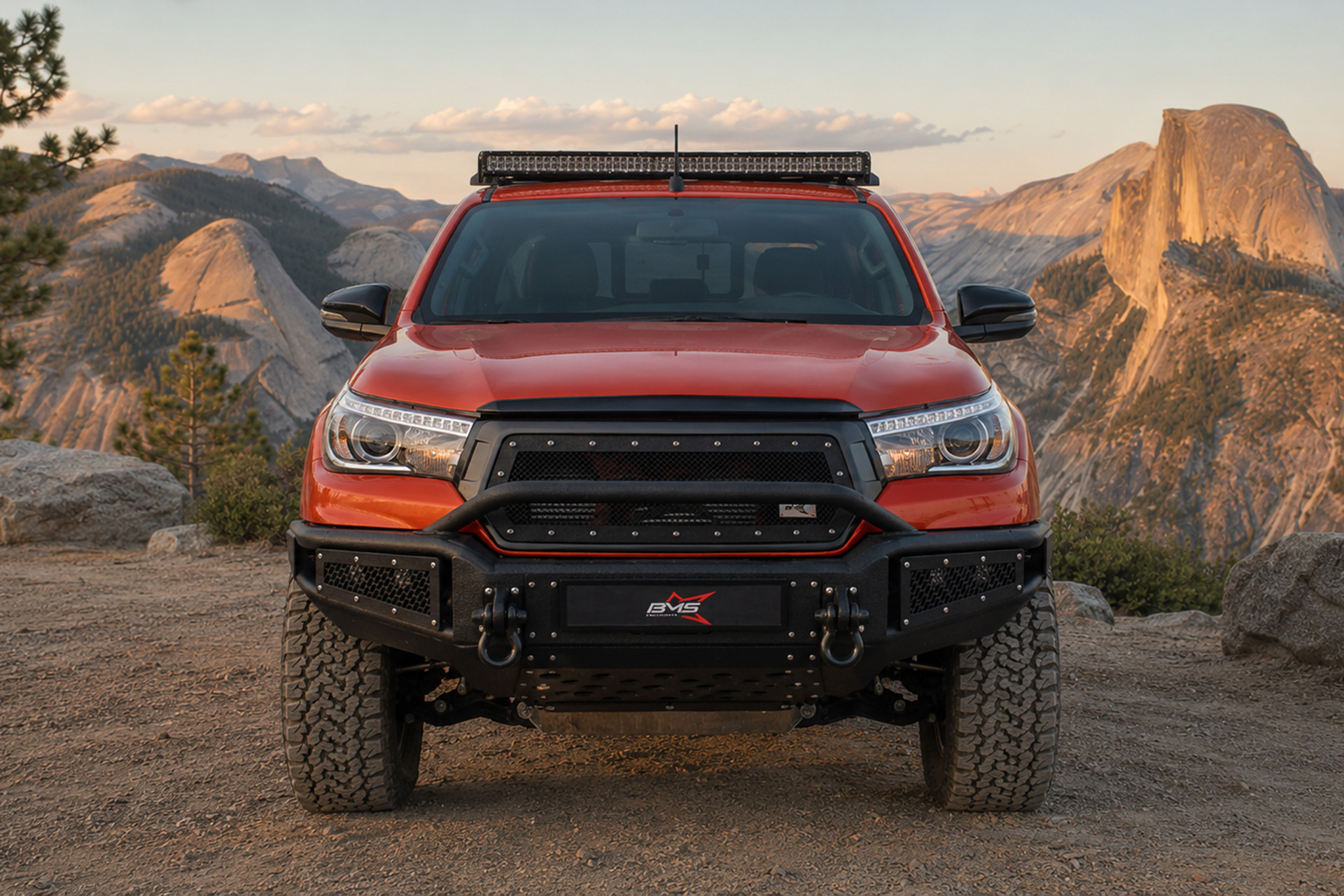

The bumper design has been changed, photos on the car are presented for reference.

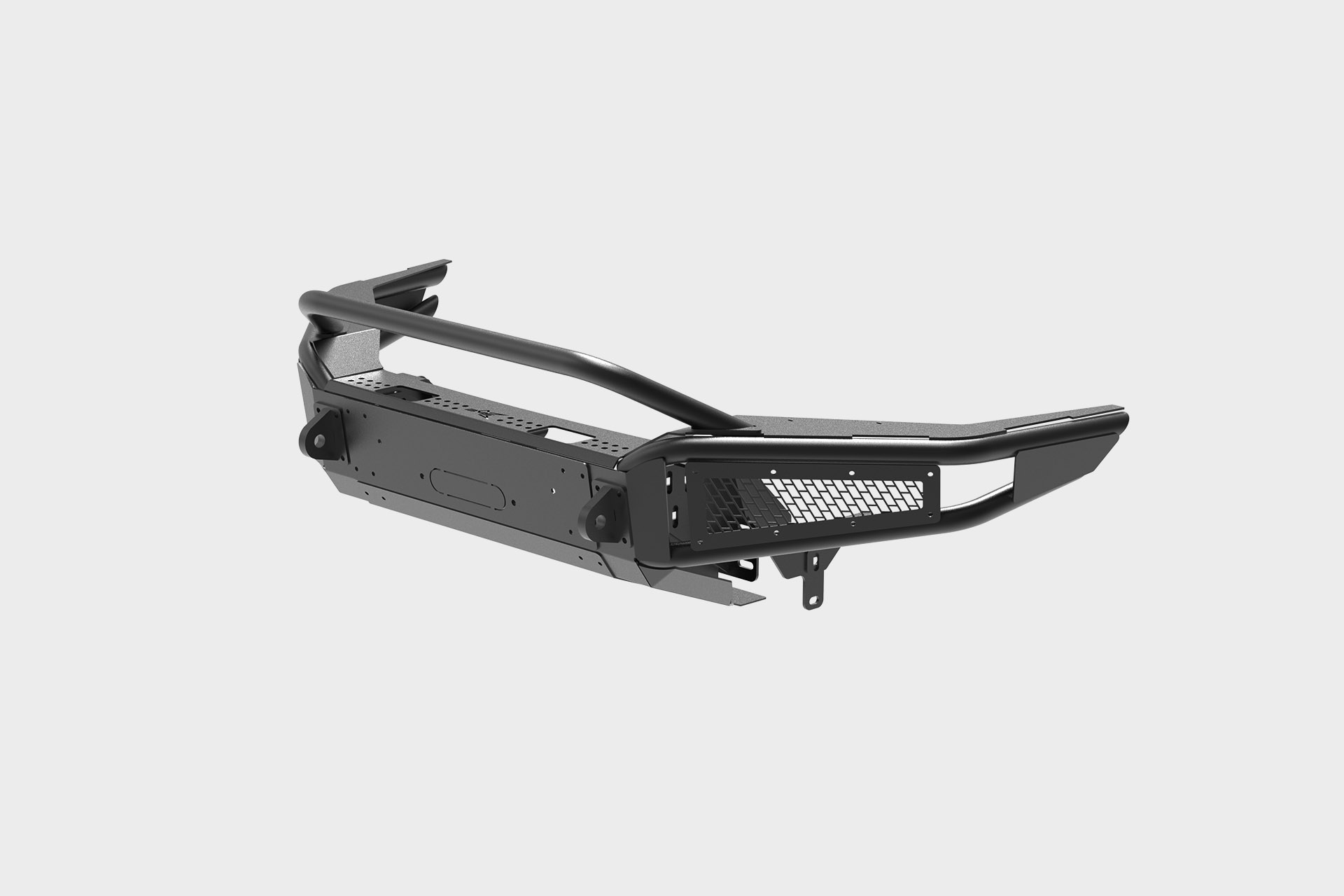

Actual appearance is shown on the 3D model.
Product images are intended to help you evaluate the item. Some details, including design, color, or configuration, may vary from what is shown in the photos. Please confirm any important details before placing your order.
Stronger front-end protection, improved approach clearance, built-in recovery points, and winch-ready capability make the BMS ALFA front bumper a practical upgrade for the 2018–2020 Toyota Hilux Revo Exclusive.
The Hilux Revo Exclusive combines Toyota reliability, pickup versatility, and genuine off-road capability. It works well as an everyday vehicle while carrying the equipment needed for outdoor trips and routes that regularly leave paved roads behind.
The factory front bumper can become a limitation in those conditions. Its plastic construction and long overhang may catch the ground in deep ruts, on damaged dirt roads, and across sharp terrain changes. Contact with a hidden obstacle can damage not only the plastic bumper, but also the grille, body panels, radiator, and other components behind it.
The BMS ALFA steel front bumper addresses both protection and clearance. Its stronger construction makes the front end less vulnerable, while the redesigned shape helps the Hilux clear climbs, ruts, and uneven ground with less risk of dragging the bumper.

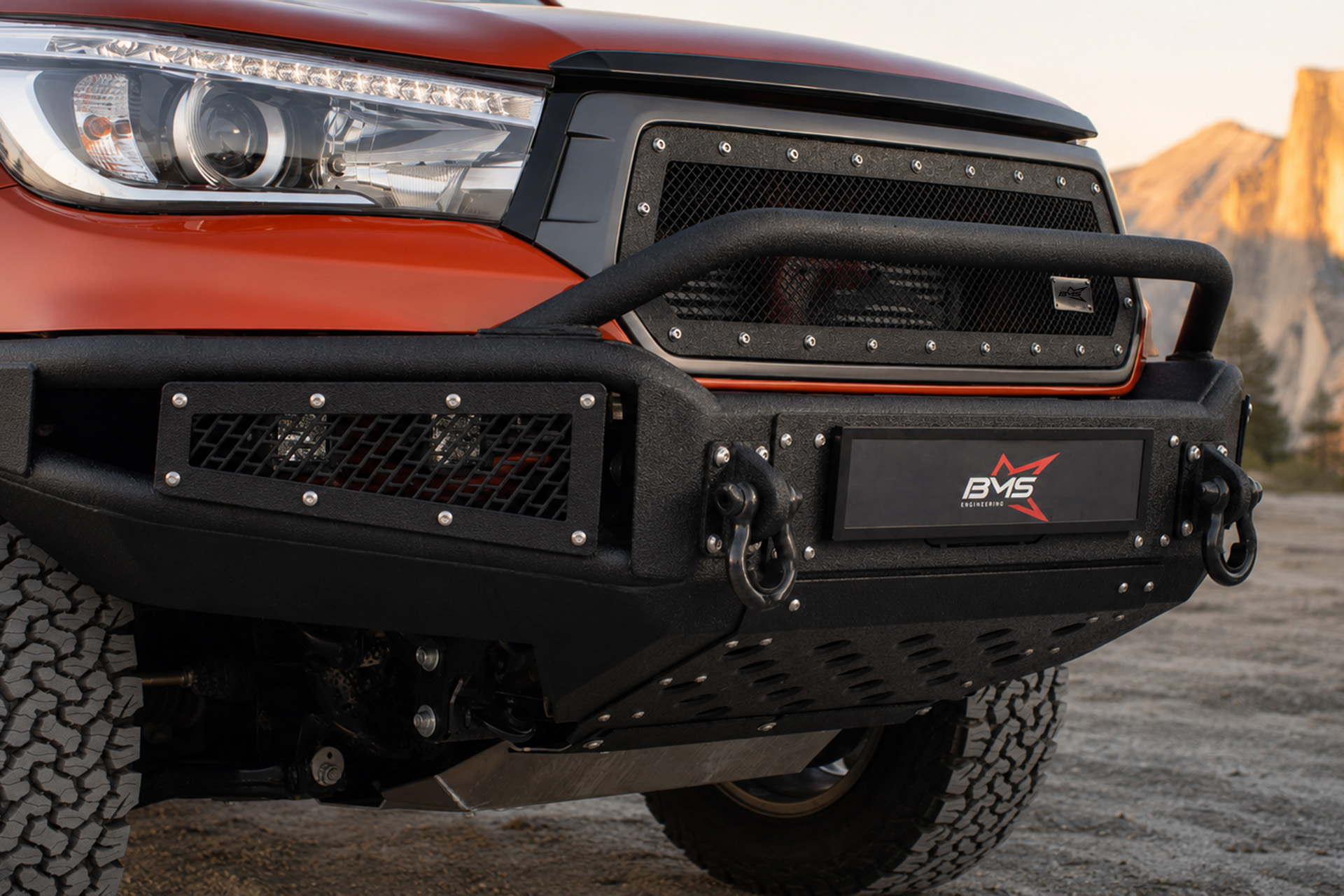

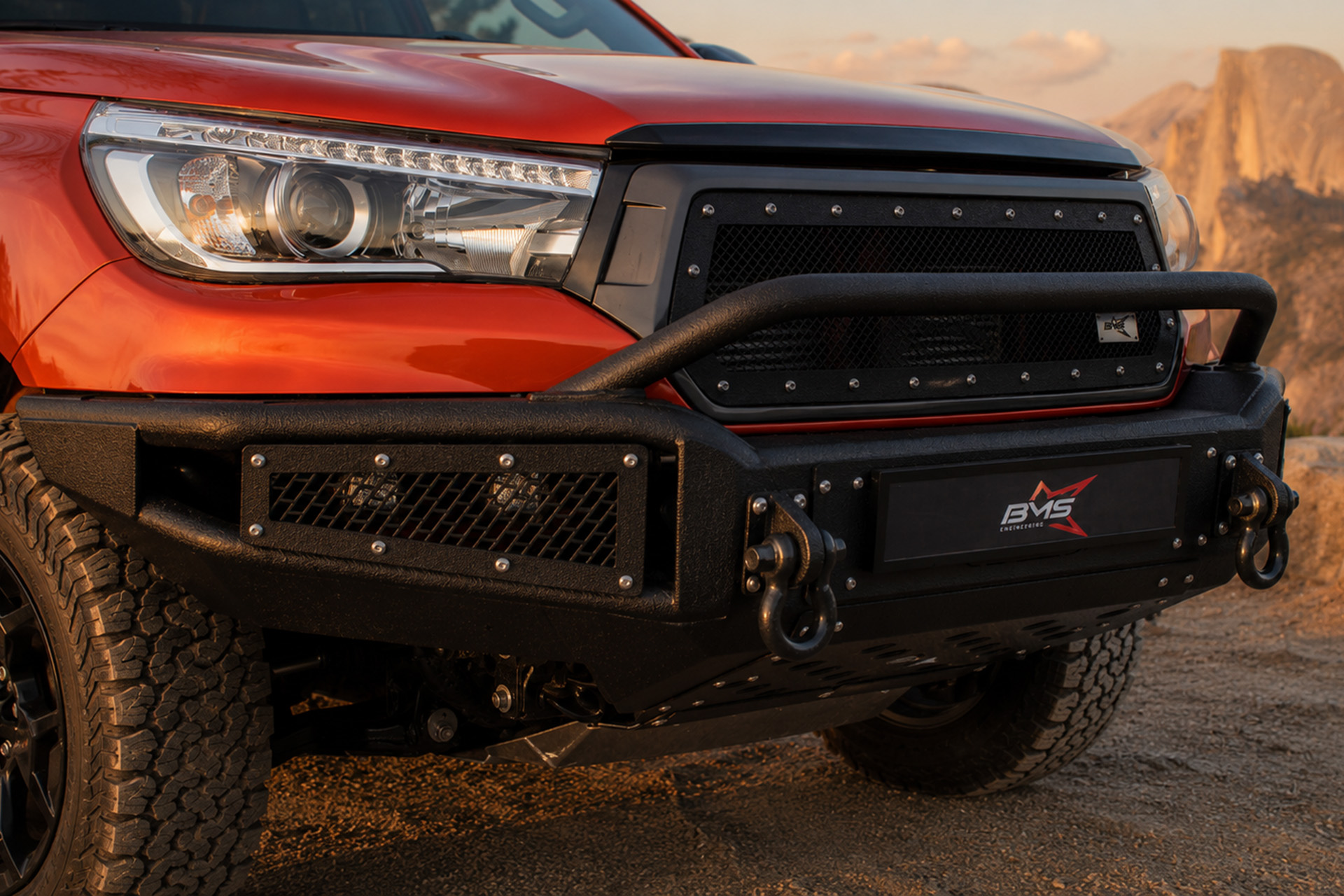

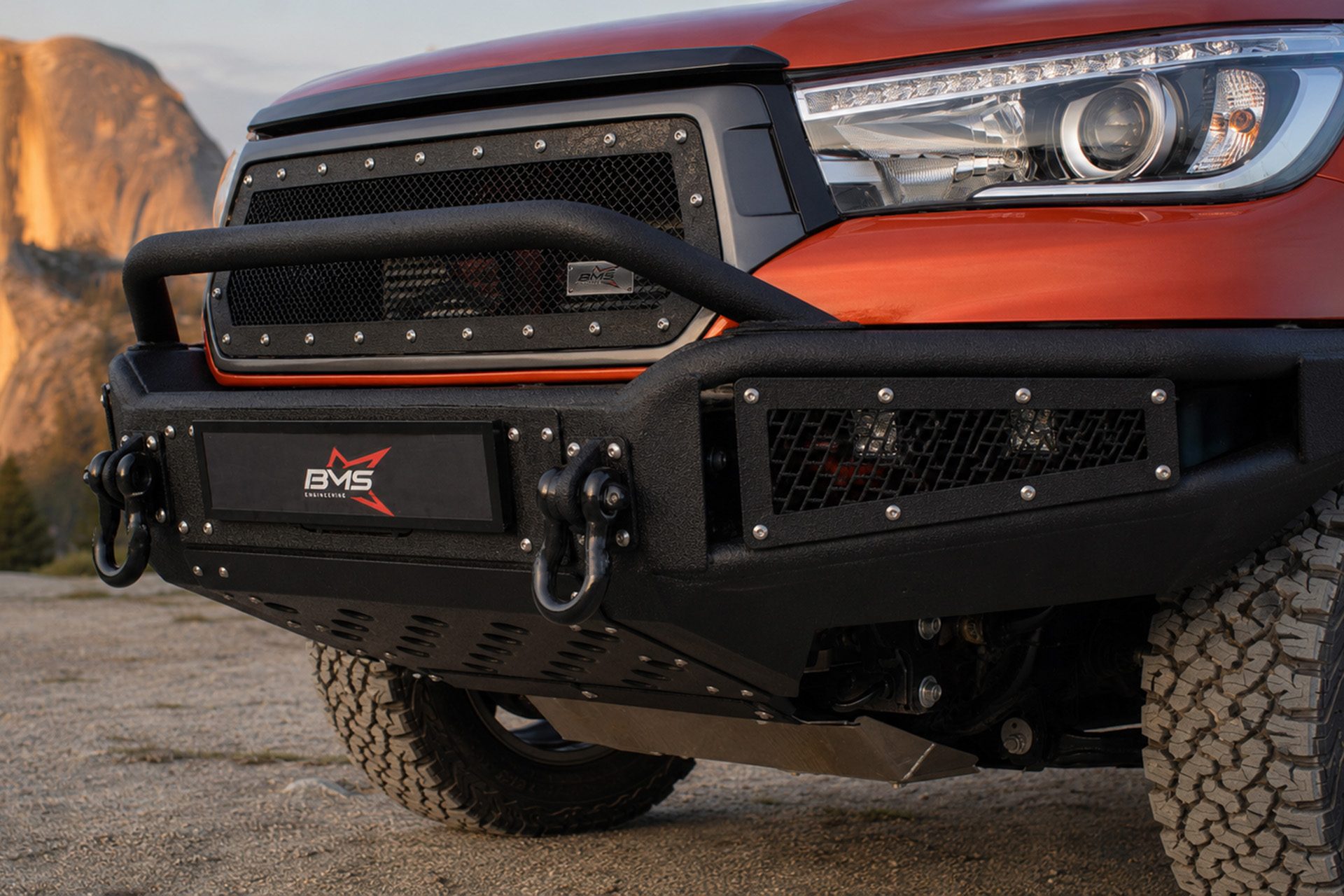

Built-in recovery points provide a clear place to attach compatible shackles and recovery gear. If the truck becomes stuck, the recovery line can be connected from outside the vehicle without searching for the factory tow point underneath it.
Installation requires trimming the factory plastic bumper, so professional fitting is recommended – but the BMS ALFA also includes a built-in winch mount, giving the Hilux a useful self-recovery option on remote routes or familiar roads that have become difficult after heavy rain.
The BMS ALFA aftermarket front bumper strengthens the Hilux without taking away from the distinctive Revo Exclusive appearance. It adds practical capability and confidence for everyday travel, outdoor trips, and more demanding off-road expeditions.
Laser cut for accuracy and precision
Manufacturer Part Number: BMS060080
Application: Toyota Hilux 2018-2020 8th generation facelift
Installation method: requires cutting the lower section of the OEM bumper
Mounting kit: included
Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, bull bar, product passport, 2 pcs recovery points, and washer tank skid plate
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: WxHxD: 95x60x75 mm
Slots for parktronic sensors: not present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 210x98x47 cm (82.7×38.6×18.5 in)
Package weight: 85 kg (187.4 lb)
Color: Black powder coating finish
Bumper material: 4 mm steel A 516-55
Brackets material: 6 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube
The BMS ALFA front bumper is designed specifically for the 2018–2020 Toyota Hilux Revo Exclusive, 8th generation facelift. Its shape and mounting system match the front-end design of the Exclusive version. Other Hilux trims and model years require a different compatible bumper from the BMS Engineering catalog.
Installation requires carefully trimming the lower section of the factory plastic bumper. Accurate cutting and alignment are important for maintaining clean, even gaps between the factory plastic and the steel bumper, so professional installation by a shop experienced with aftermarket bumpers is recommended.
The BMS ALFA is a winch-ready front bumper with a built-in winch mount. It attaches to the frame and distributes winching loads through reinforced mounting points.
The bumper is compatible with WARN VR EVO 10-S and WARN VR EVO 12-S winches with synthetic rope, as well as similar models with matching dimensions and mounting patterns. During recovery, keep the pull as straight as possible along the frame. Properly rated snatch blocks or recovery pulleys can be used when the pulling direction needs to be adjusted.
Yes. The BMS ALFA can be used on a daily-driven Hilux. Its shape works with the Revo Exclusive design, helping the truck retain its distinctive appearance without looking like an oversized expedition build.
The stronger front-end protection can also be useful during everyday use, while the improved approach clearance and built-in winch mount add practical capability for work trips, hunting, fishing, and occasional travel beyond paved roads.
A heavy duty front bumper is not essential if the entire route stays on pavement or well-maintained dirt roads. Its advantages become more useful on rocky tracks, washed-out climbs, deep ruts, and sharp terrain changes leading to remote campsites, mountain passes, or viewpoints.
The BMS ALFA improves approach clearance, helping the Hilux catch the ground less often. If the road becomes impassable or the truck gets stuck, an installed winch or the built-in recovery points can provide a practical recovery option.
The BMS ALFA steel front bumper is stronger than the factory plastic bumper and can help reduce damage to the grille, radiator, lights, and other front-end components during light contact or some impacts.
It does not provide complete protection. In a serious collision, the bumper, mounting brackets, body, frame, and components behind the bumper can still be damaged.
This is an aftermarket front bumper, and road-use rules can vary by location. If your Toyota Hilux is driven on public roads, check local requirements before installation.
