| Manufacturer: | BMS Engineering |
| Material: | Steel |
| Application: | Toyota Hilux 2015-2020 8th generation |
| Package size: | 195x80x50 cm (76.8x31.5x19.7 in) |
| Package weight: | 70.8 kg (156.1 lb) |
| Performance part: | Yes |
PAY ATTENTION!

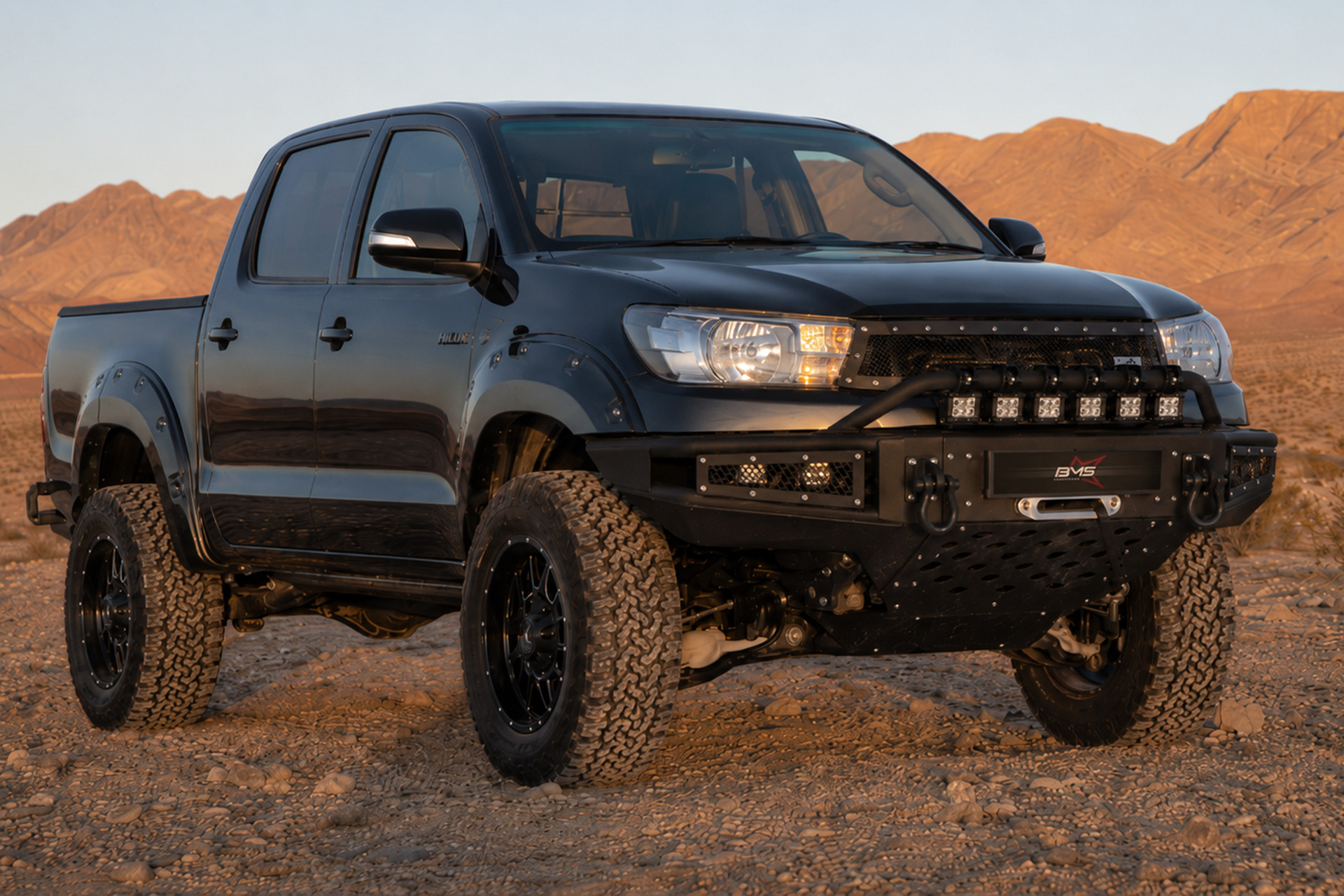

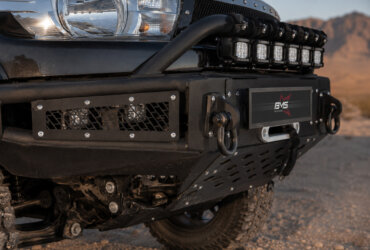

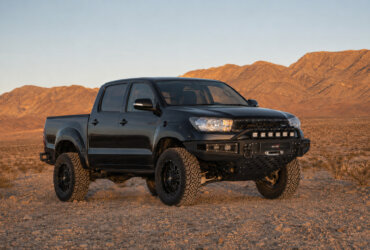

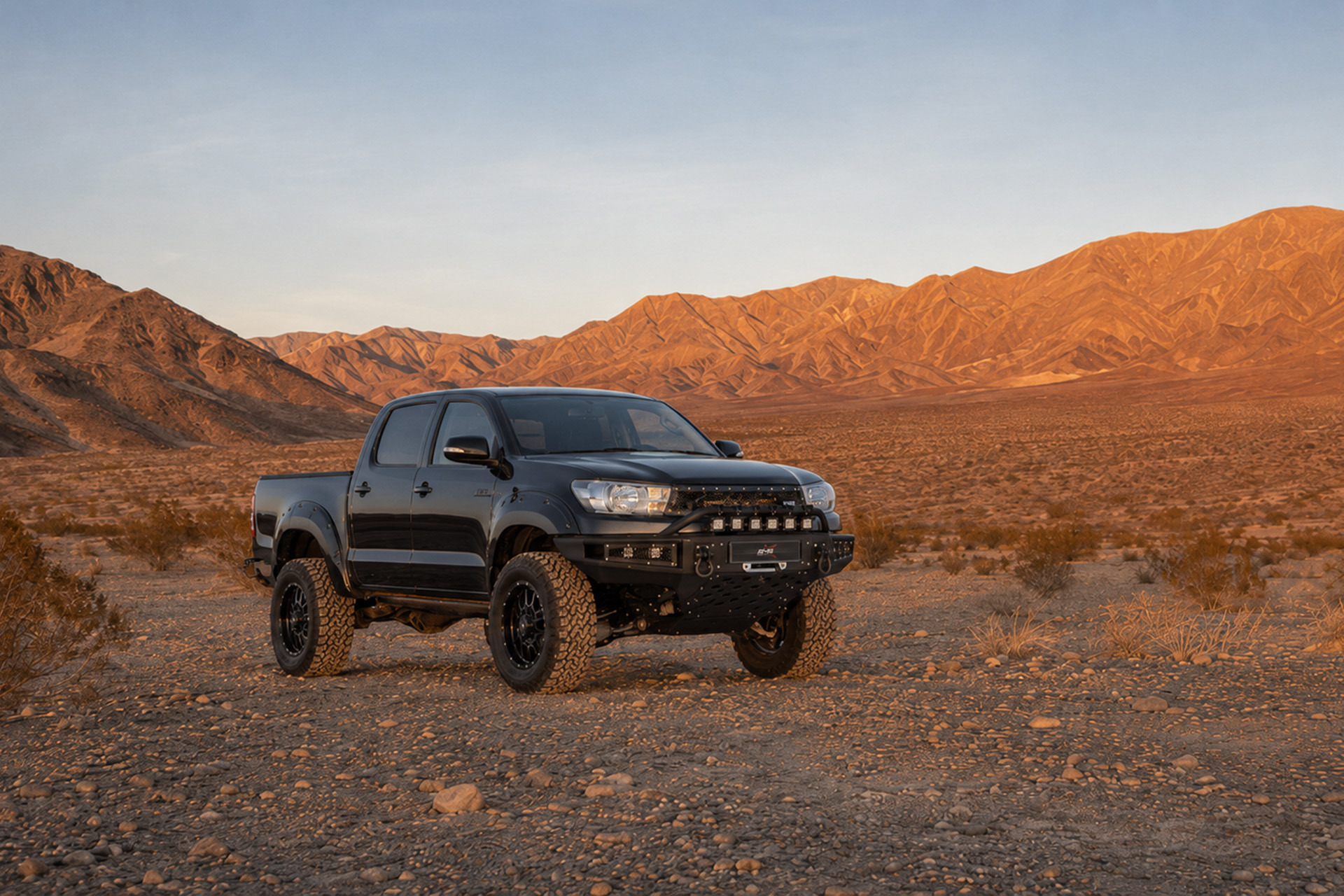

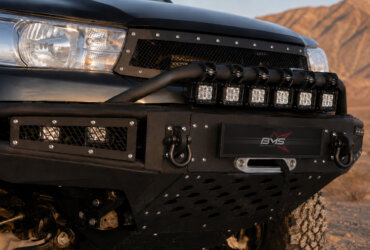

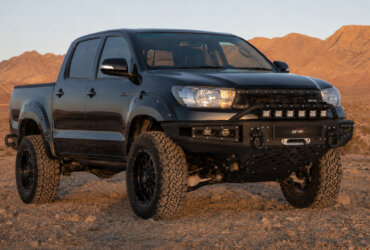

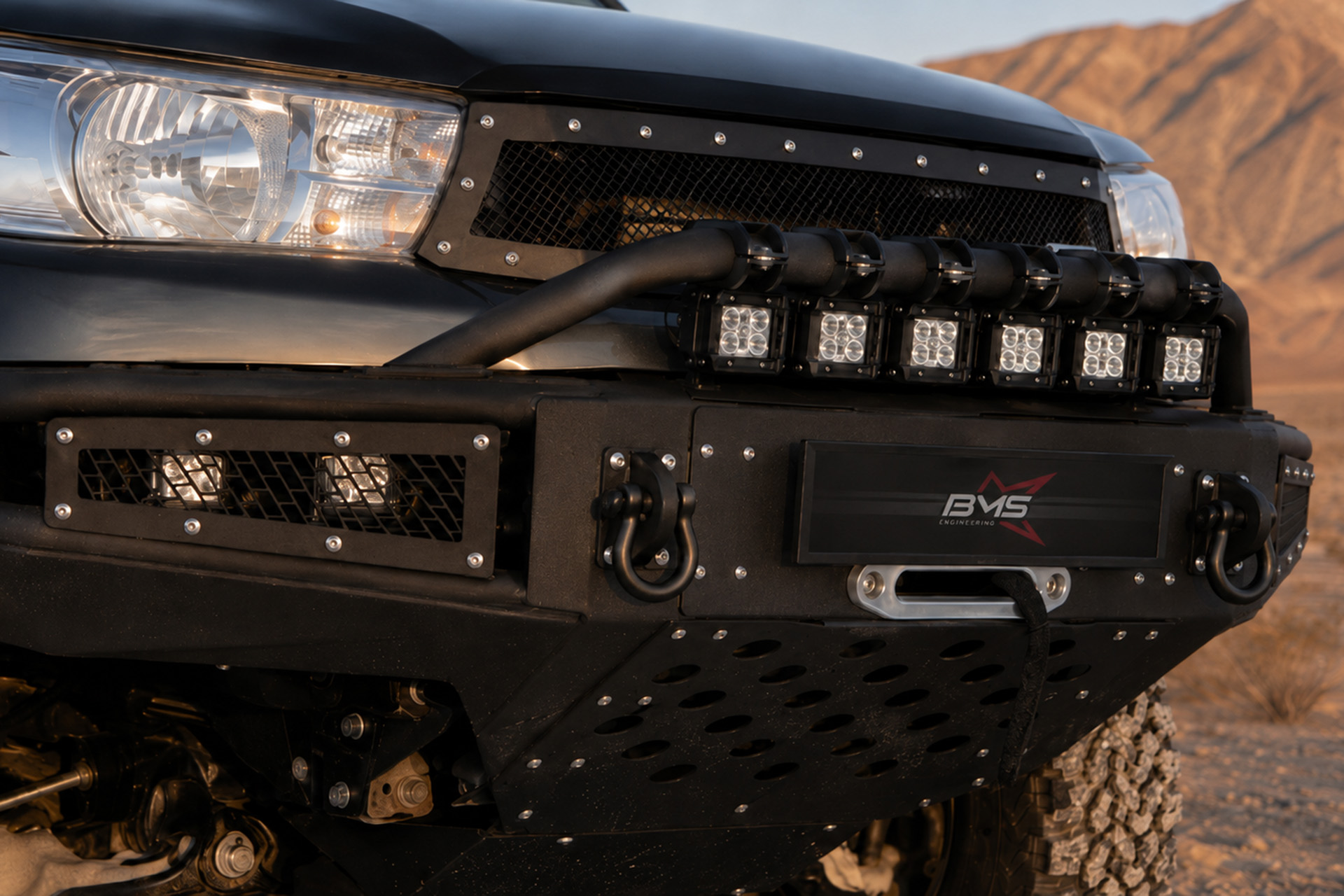

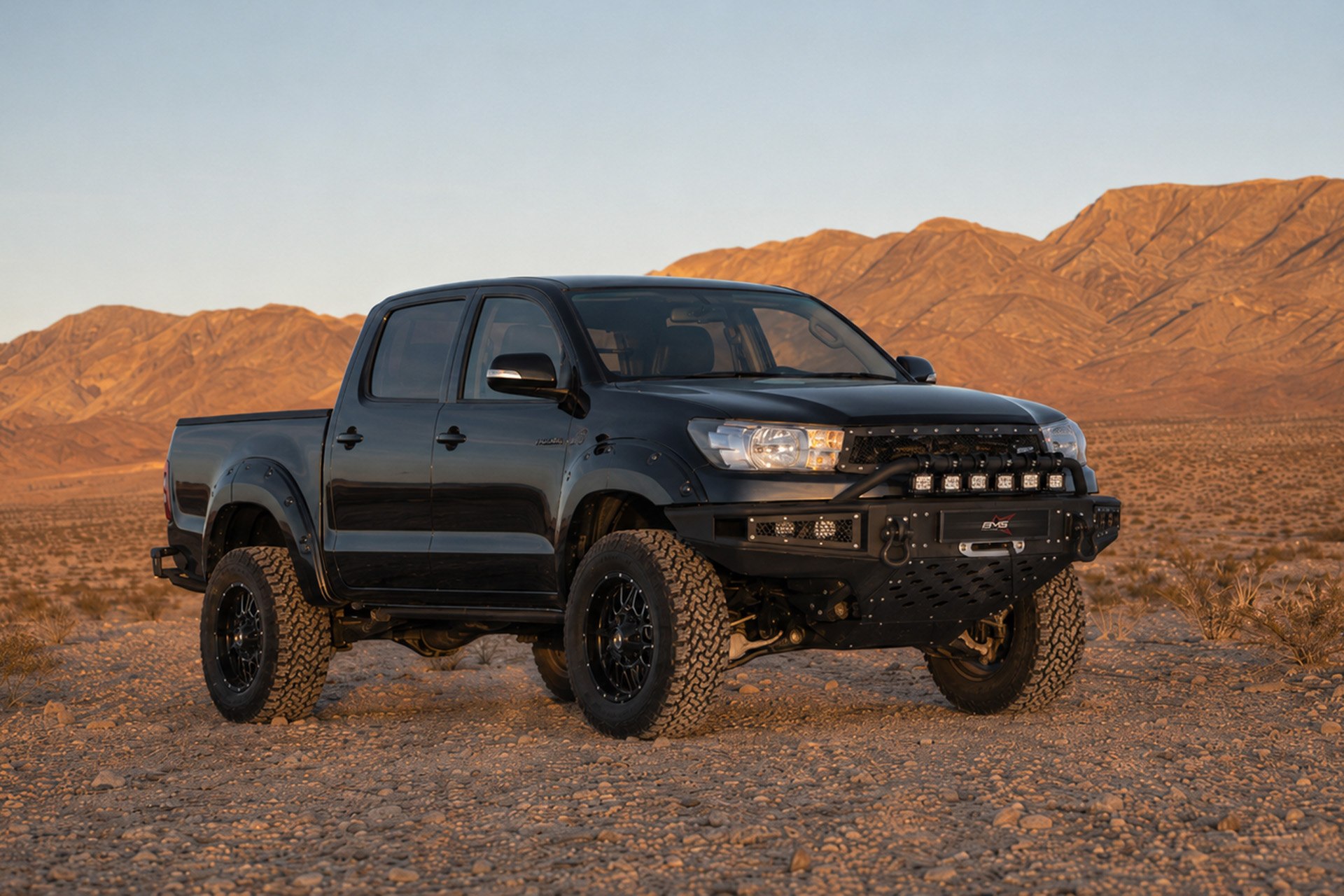

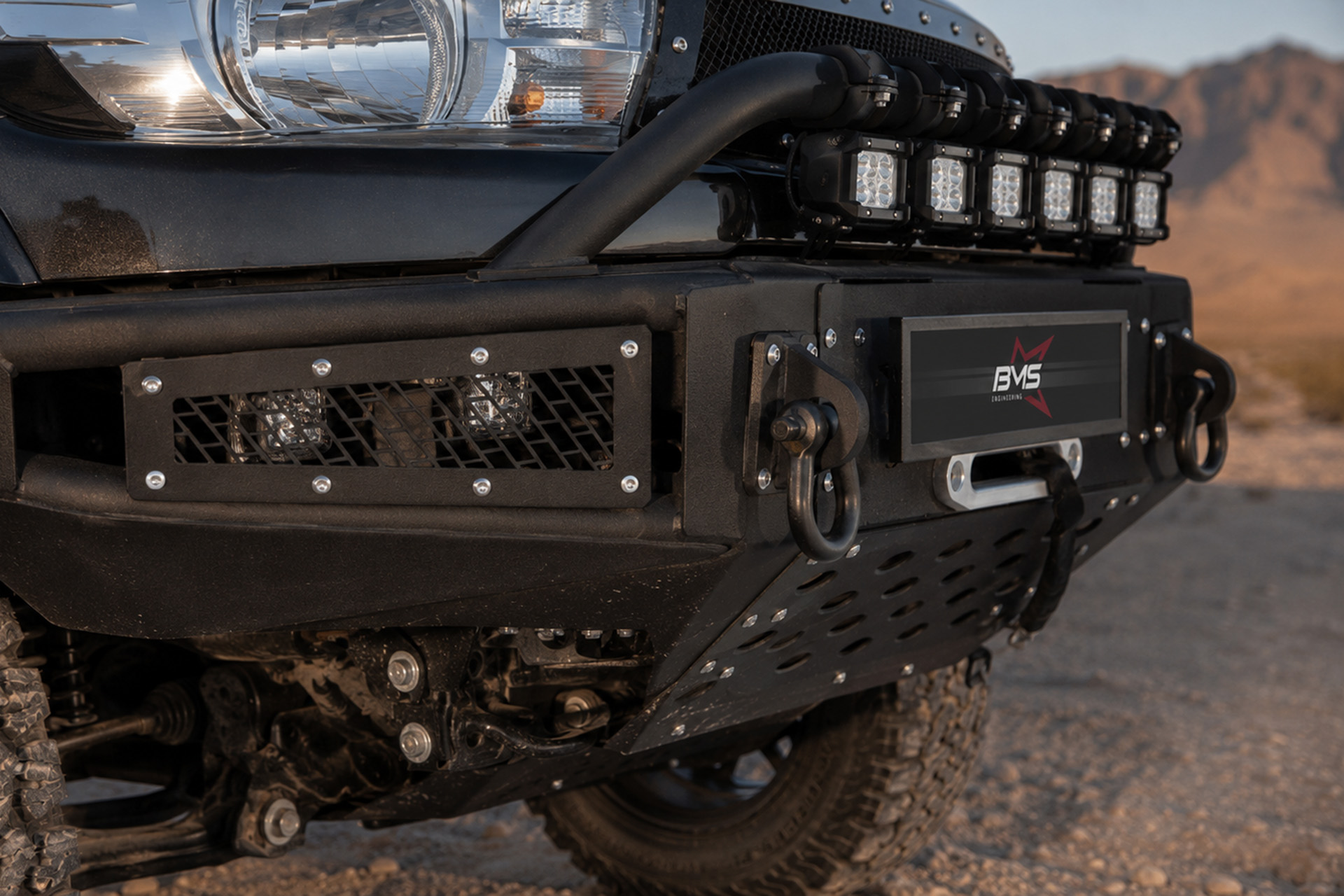

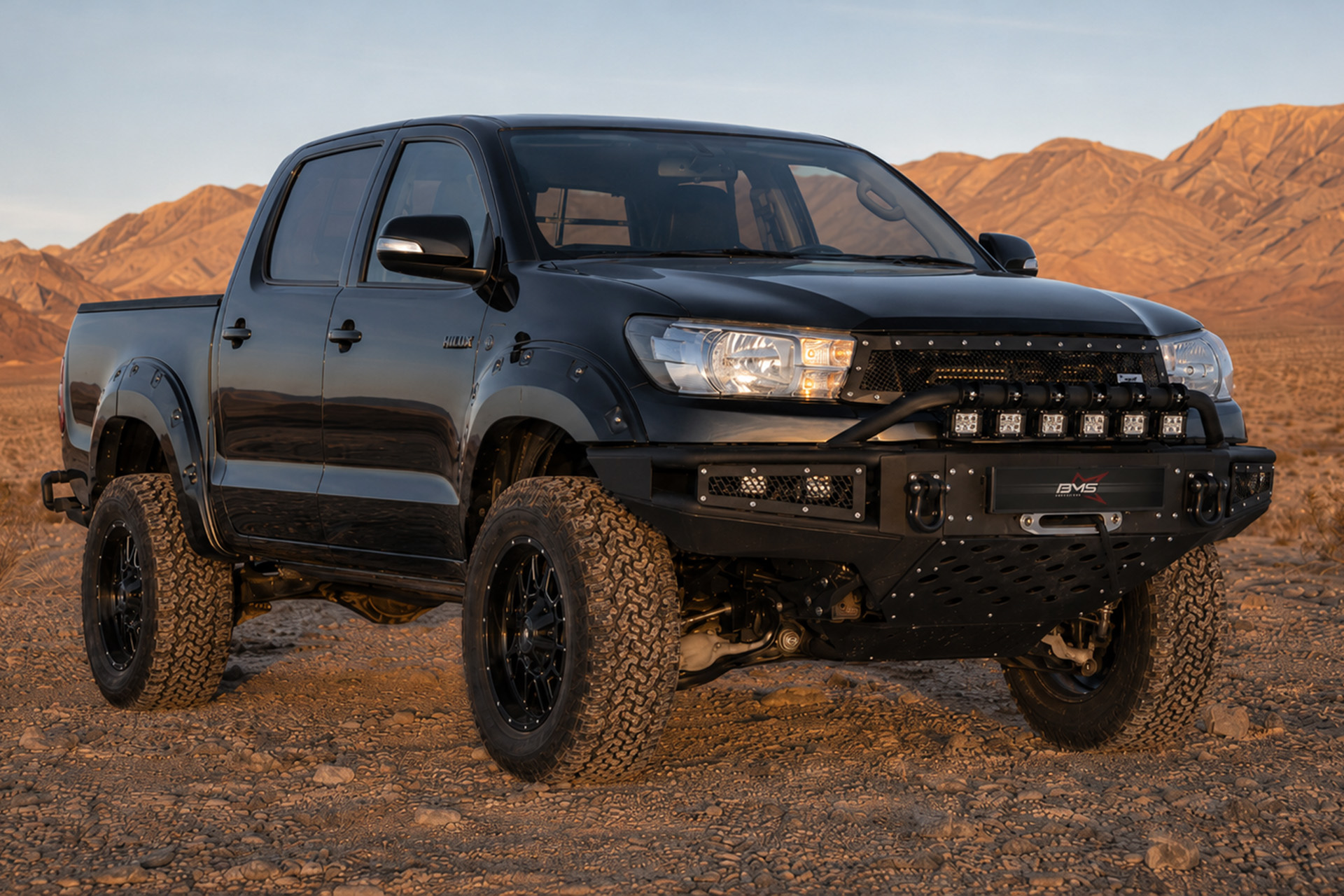

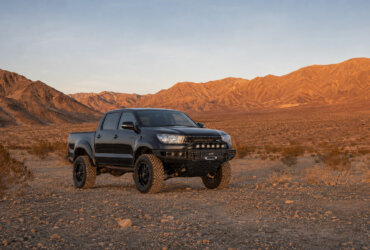

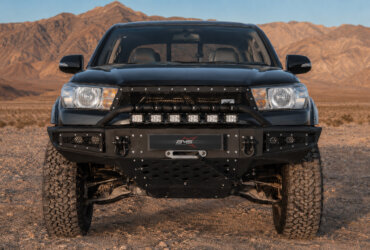

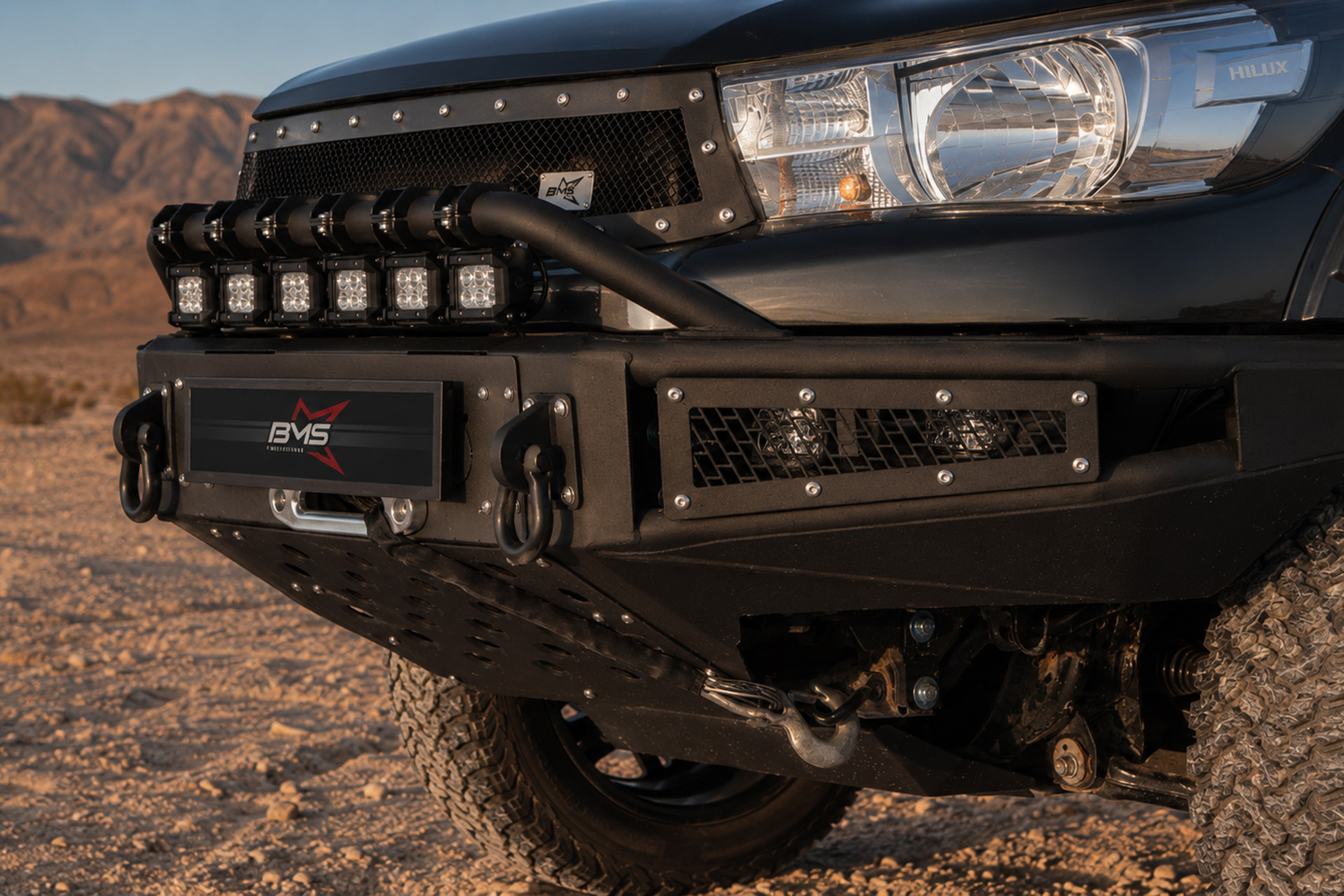

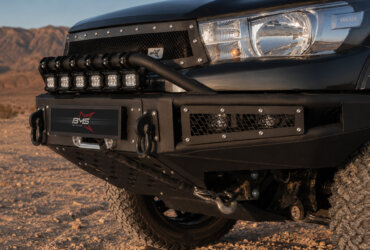

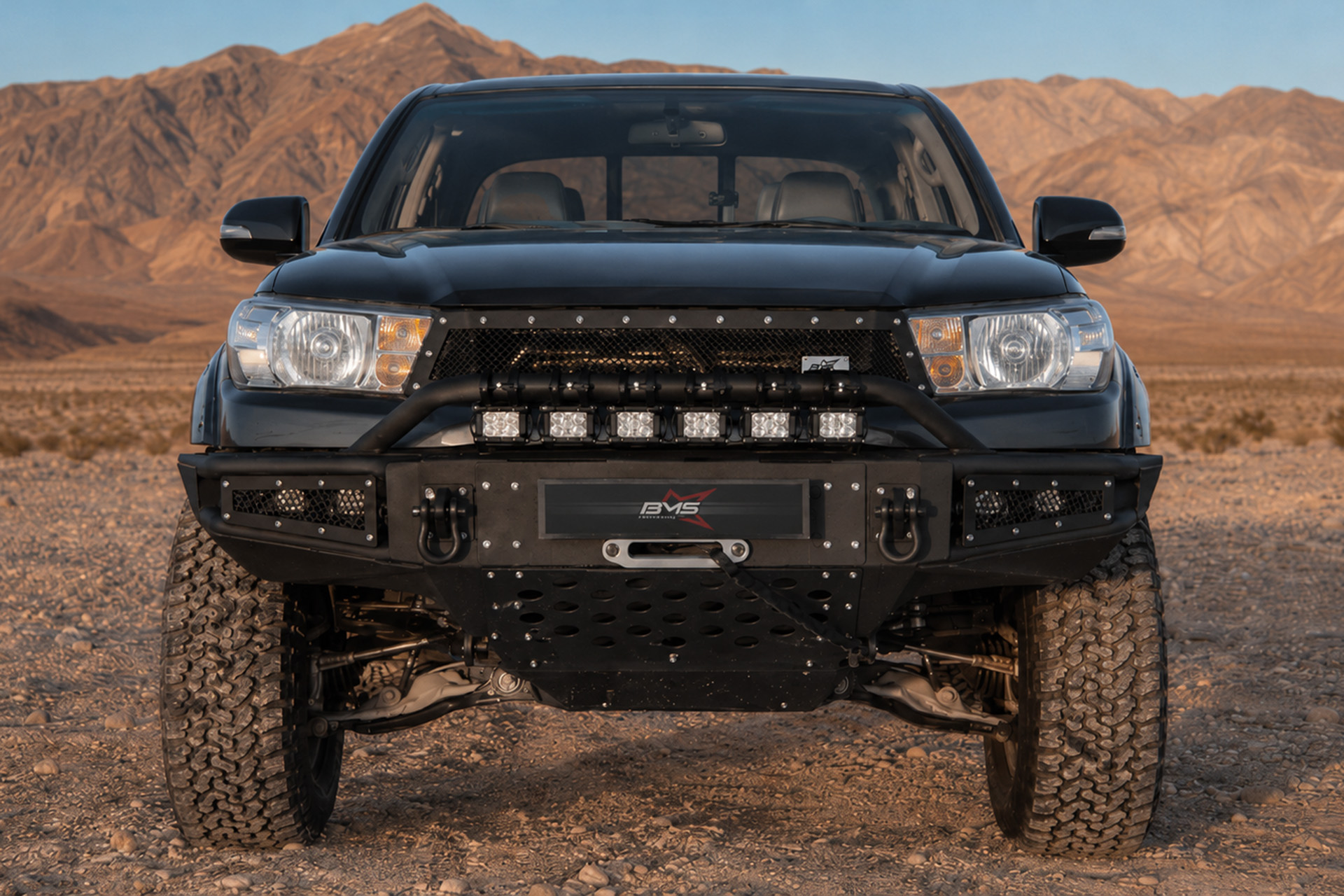

The bumper design has been changed, photos on the car are presented for reference.

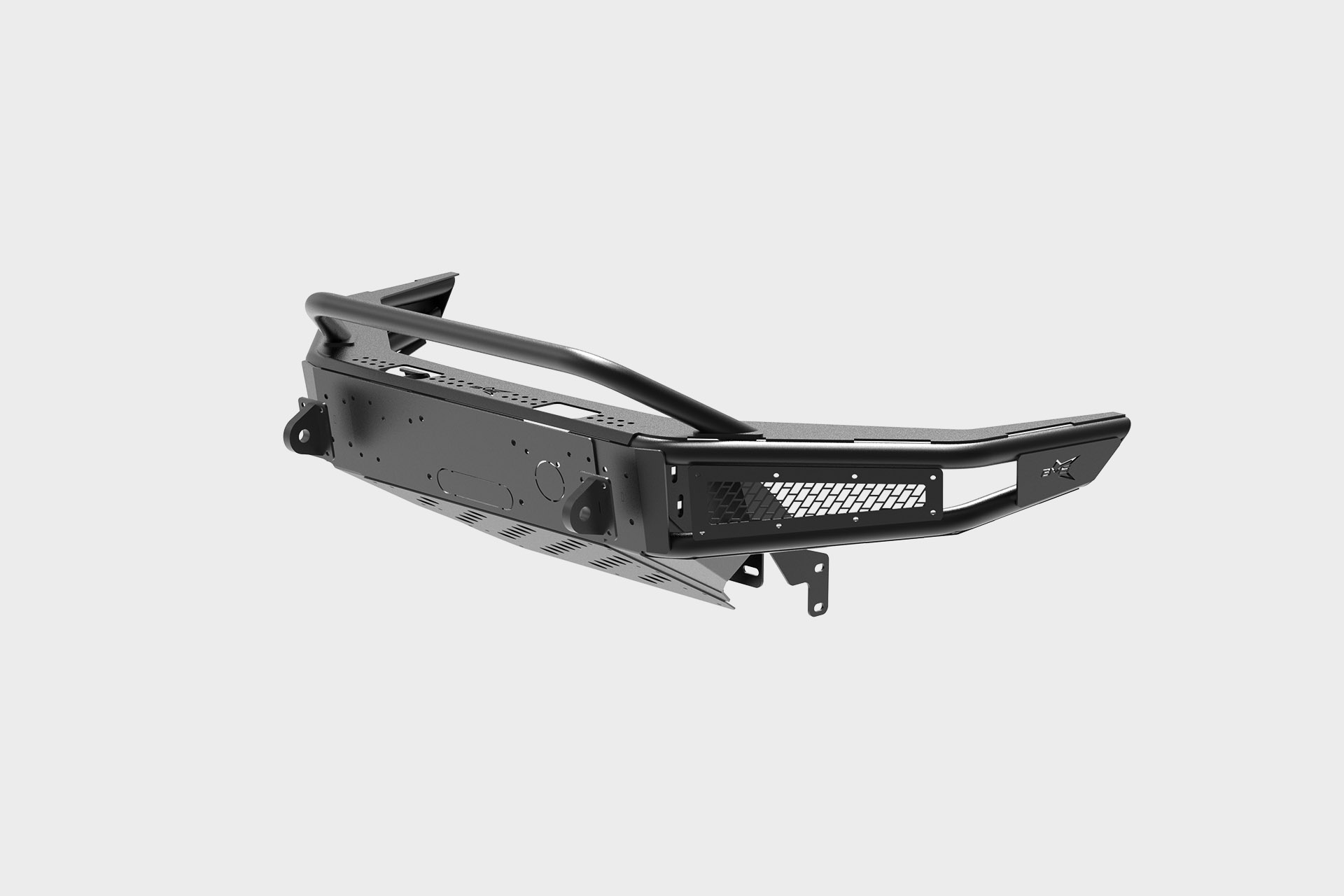

Actual appearance is shown on the 3D model.
Product images are intended to help you evaluate the item. Some details, including design, color, or configuration, may vary from what is shown in the photos. Please confirm any important details before placing your order.
Improved approach clearance, stronger front-end protection, built-in recovery points, and winch-ready capability make the BMS ALFA front bumper a practical upgrade for the 2015–2020 Toyota Hilux.
Many Hilux owners use their trucks beyond the city for work, outdoor recreation, and regional travel. Four-wheel drive and generous ground clearance help the pickup continue after the pavement ends, but the factory front bumper can become a weak point. Its long overhang and plastic construction leave it vulnerable on damaged dirt roads, forest tracks, and uneven terrain.
The BMS ALFA steel front bumper is better suited to this kind of use. Its shape improves approach clearance, helping the truck catch the ground and hidden obstacles less often. Frame-mounted construction distributes loads through the vehicle’s structural mounting points, while built-in recovery points provide a clear place to attach compatible shackles and recovery gear when the Hilux needs assistance.
Installation requires trimming the factory plastic bumper, so professional fitting is recommended. The bumper also includes a built-in winch mount, giving the truck a useful self-recovery option when road conditions change after heavy rain or outside help is not available.
The BMS ALFA aftermarket front bumper is designed for Hilux owners who want to use more of the truck’s capability without being limited by fragile factory trim. It gives the front end a stronger, more purposeful setup for work, outdoor trips, and travel beyond paved roads.
Laser cut for accuracy and precision
Manufacturer Part Number: BMS060036
Application: Toyota Hilux 2015-2020 8th generation
Installation method: requires cutting the lower section of the OEM bumper
Mounting kit: included
Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, bull bar, product passport, certificate of conformity, 2 pcs recovery points, and washer tank skid plate
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: WxHxD: 95x60x75 mm
Slots for parktronic sensors: not present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 195x80x50 cm (76.8×31.5×19.7 in)
Package weight: 70.8 kg (156.1 lb)
Color: Black powder coating finish
Bumper material: 4 mm steel A 516-55
Brackets material: 6 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube
The BMS ALFA front bumper is designed for the 2015–2020 Toyota Hilux, 8th generation. Its shape and mounting system are engineered specifically for these models. Later Hilux versions require a different compatible bumper from the BMS Engineering catalog.
Self-installation is possible, but it is not recommended. Installation requires carefully trimming the lower section of the factory plastic bumper, fitting the mounting brackets correctly, and aligning the steel bumper with even gaps.
For the cleanest fit between the factory plastic and the BMS ALFA bumper, professional installation by a shop experienced with aftermarket steel bumpers is recommended.
The winch mounts inside the BMS ALFA bumper on the built-in winch mounting area. The bumper is compatible with WARN VR EVO 10-S and WARN VR EVO 12-S winches with synthetic rope, as well as similar models with matching dimensions.
When choosing another winch, check the housing size and mounting-hole pattern before installation. It is usually best to install the winch and complete the electrical connections at the same time as the bumper installation.
A bull bar is a separate protective hoop installed in front of the factory bumper. It protects only a limited area and does not solve the problem of the Hilux’s long front overhang. Because it extends forward, it may reduce approach clearance even further.
The BMS ALFA heavy duty front bumper replaces the lower section of the factory bumper, mounts to the frame, and improves front-end geometry. It also includes a built-in winch mount and recovery points for attaching compatible shackles and recovery gear. Its stronger construction can help reduce damage in some situations, but it does not guarantee that the vehicle will remain undamaged.
This is an aftermarket front bumper, and road-use rules can vary by location. If your Toyota Hilux is driven on public roads, check local requirements before installation.
Yes. Access roads to remote lakes, campsites, and fishing areas may include rocks, mud, deep ruts, and soft ground instead of pavement.
The BMS ALFA bumper improves approach clearance, helping the Hilux catch the ground less often on sharp terrain changes. Its steel construction is better suited to occasional contact with rocks and hidden obstacles, while an installed winch provides a useful self-recovery option if the truck becomes stuck.
The BMS ALFA steel front bumper is stronger than the factory plastic bumper and can absorb part of the load during light contact or some impacts, potentially reducing damage in certain situations.
It does not provide complete protection. In a serious collision, the bumper, mounting brackets, frame, body, and other vehicle components can still be damaged.
The bumper has a black powder coating applied over a zinc-containing primer. These layers help protect the steel from direct contact with moisture and road dirt.
Rocks, sand, and road salt can still chip or scratch the finish over time. Clean, treat, and touch up damaged areas promptly to help prevent corrosion.
