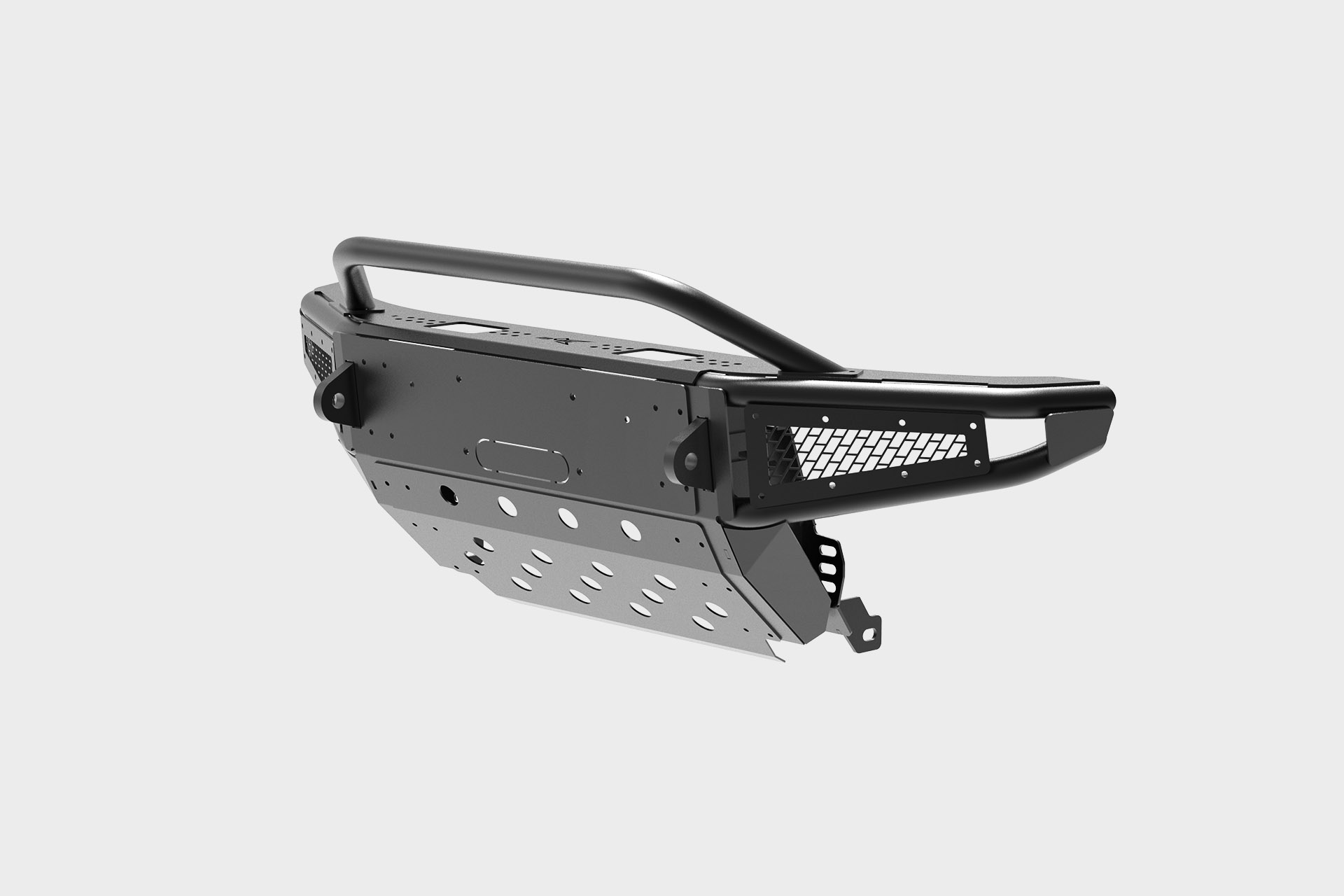

Front Bumper BMS ALFA for Toyota FJ Cruiser 2005-2023

Stronger front-end protection, improved approach clearance, built-in recovery points, and winch-ready capability give the Toyota FJ Cruiser a tougher, more capable front-end setup.

The FJ Cruiser already offers distinctive styling and solid off-road performance from the factory. Many owners take that capability further, preparing the SUV for fishing trips, hunting, long-distance travel, and demanding routes where four-wheel drive and locking differentials are only part of the equation.

The factory front bumper can become a weak point in these conditions. Its plastic construction may not handle contact with rocks, steep road edges, submerged obstacles, or objects hidden in tall grass. It also extends far enough forward to limit approach clearance on steep climbs and sharp terrain changes.

The BMS ALFA steel front bumper makes the FJ Cruiser less vulnerable on difficult terrain. Its shape improves approach geometry, helping the SUV catch the ground less often, while the stronger construction is better suited to occasional contact with trail obstacles.

Built-in recovery points provide a clear place to attach compatible shackles and recovery gear if the vehicle becomes stuck in deep ruts, mud, or snow. This makes recovery setup faster and more convenient than reaching underneath the SUV for the factory tow point.

Installation requires minor vehicle modification, so professional fitting is recommended. The bumper also includes a built-in winch mount, giving the FJ Cruiser an important self-recovery option on remote routes where outside assistance may not be available.

Designed in the spirit of classic American off-road builds, the BMS ALFA aftermarket front bumper complements the FJ Cruiser’s iconic shape while adding useful strength and recovery function for serious travel beyond paved roads.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060003
Application: Toyota FJ Cruiser 2005-2023
Installation method: requires trimming the fender liners and auxiliary elements of the OEM bumper
Mounting kit: included
Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, bull bar, product passport, 2 pcs recovery points, winch control box bracket, license plate frame bracket, and washer tank protection plate
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: WxHxD: 95x60x75 mm
Slots for parktronic sensors: not present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 182x74x51 cm (71.7×29.1×20.1 in)
Package weight: 58 kg (127.9 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 4 mm steel A 516-55
Brackets material: 6 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube

FAQ

Why install a heavy duty front bumper on a Toyota FJ Cruiser?

A heavy duty front bumper is not essential if the FJ Cruiser is used only for relaxed driving on paved roads. Still, stronger front-end protection can be useful even in the city, including during light parking-lot contact.

Its benefits become more noticeable beyond pavement. Improved approach clearance helps the FJ Cruiser handle ruts, washouts, and uneven dirt roads with less risk of catching the front end. Built-in recovery points and an installed winch also provide useful options if the SUV becomes stuck.

What modifications are required to install the BMS ALFA bumper?

Installation requires trimming the inner fender liners and some supporting components of the factory bumper. These steps are shown in the installation video.

The work is relatively straightforward, but professional installation by a shop experienced with aftermarket steel bumpers is recommended.

What winch should I choose for the Toyota FJ Cruiser?

Choose the winch according to the fully loaded weight of the vehicle, including passengers, cargo, and expedition equipment.

The BMS ALFA bumper is compatible with the WARN VR EVO 10-S for a lightly loaded FJ Cruiser and the WARN VR EVO 12-S when greater pulling capacity is needed. Similar winches may also fit, but their dimensions and mounting patterns should be checked before installation.

It is best to install the winch at the same time as the bumper to avoid removing the assembly again later. A bracket for the winch control box is included.

What is the difference between the BMS ALFA bumper and a bull bar?

A bull bar is an external hoop mounted in front of the factory plastic bumper. It protects only a limited area and does not solve the problem of the long front overhang. Because it extends forward, it may reduce approach clearance even further.

The BMS ALFA heavy duty front bumper mounts to the frame, improves approach geometry, and distributes loads through reinforced mounting points. It also supports hidden winch installation and includes external recovery points. A bull bar is often chosen mainly for appearance, while a replacement steel bumper provides more practical off-road function.

Can I recover the FJ Cruiser using this bumper?

Yes. The BMS ALFA mounts to the vehicle’s frame and includes two heavy-duty D-ring mounts for vehicle recovery. If the recovery strap or rope does not have a hook, attach it to the built-in recovery points using a compatible, properly rated shackle.

Keep the pull as straight as possible along the frame and avoid sudden side loads. Straps, shackles, pulleys, and other recovery equipment should always be rated for the vehicle’s weight and the expected load.

Can I use a Hi-Lift jack with the BMS ALFA bumper?

If the FJ Cruiser is stuck in a deep rut, an experienced user may carefully lift the vehicle and reposition it. The lifting point depends on the situation; one option is to transfer the load through a recovery point using a soft shackle.

This is an emergency recovery method that should only be considered when safer options have not worked. A Hi-Lift jack can become unstable, slip, damage the vehicle, or cause serious injury. It requires proper experience and extreme caution, and there is also a risk of damaging the bumper coating.

How can I protect the steel bumper from rust?

The bumper is treated with a zinc-containing primer and finished with a black polymer coating that help protect the steel from moisture and dirt.

Sand, gravel, and road salt can still chip or scratch the finish over time. Inspect the bumper regularly, and clean, treat, and touch up any areas where the coating has been damaged to help prevent corrosion.

Can this bumper be used on public roads?

This is an aftermarket front bumper, and road-use rules can vary by location. If your Toyota FJ Cruiser is driven on public roads, check local requirements before installation.
