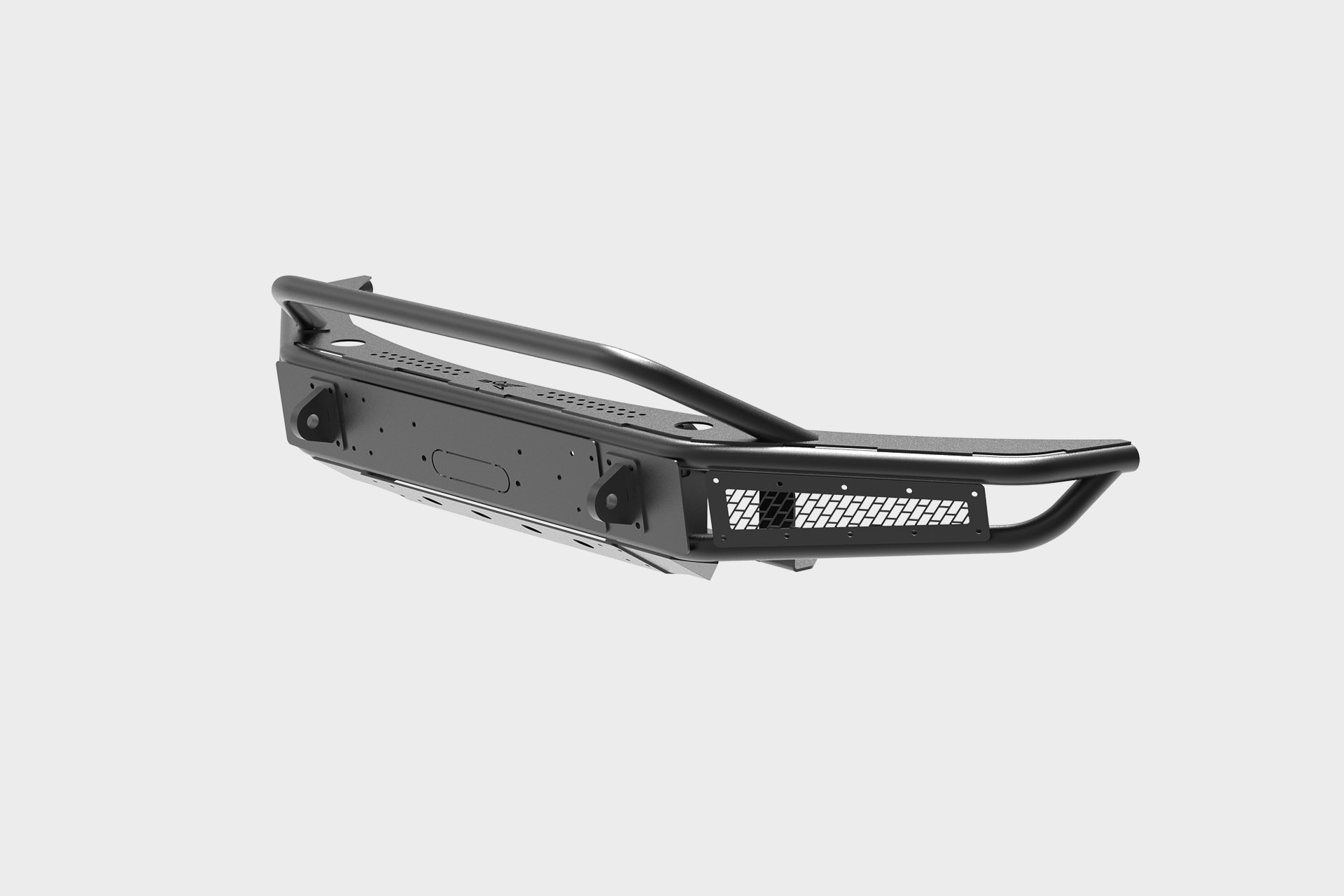

Front Bumper BMS ALFA for Ford F-150 Raptor 2009-2014

More clearance at the front, stronger protection, and built-in recovery capability let the Ford F-150 Raptor make better use of what the truck can already do off-road.

Rough dirt roads and challenging terrain are familiar territory for a powerful four-wheel-drive pickup like the F-150 Raptor. The factory front bumper, however, can become a limitation when the route gets more demanding. Its large front overhang can contact the ground on steep climbs, deep ditches, and abrupt terrain changes even when the truck itself still has enough capability to keep moving. And in places with rocks, deep ruts, or obstacles hidden in grass, factory plastic does not provide the level of front-end protection many owners want.

The BMS ALFA steel front bumper significantly reduces front overhang and improves approach clearance, helping the Raptor clear steep transitions and uneven terrain with less risk of catching the front end. The bumper mounts directly to the frame, providing stronger protection when the truck comes into contact with obstacles.

The BMS ALFA also includes a built-in winch mount. If the truck becomes stuck, a winch provides a valuable self-recovery option, while removable heavy-duty D-ring mounts give quick access for attaching recovery gear when you need to recover your own vehicle or help another truck. If a strap or rope does not have a hook, it can be connected to the built-in recovery points using compatible, properly rated shackles.

Installation does not require drilling or trimming the vehicle. This heavy duty front bumper installs using the factory mounting points, giving the F-150 Raptor additional protection, better off-road geometry, and useful recovery capability without unnecessary body modifications.

The BMS ALFA aftermarket front bumper is for F-150 Raptor owners who want the truck better prepared for difficult routes and unexpected situations beyond pavement. It gives you more freedom to plan where the trip goes next – and a stronger setup when the route turns out to be more challenging than expected.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060030
Application: Ford F-150 Raptor 2009-2014
Installation method: fully bolt on
Mounting kit: included
Features of the complete set: The set includes an off-road bumper, bolt kit, bull bar, winch mount, and 2 pcs recovery points
Winch mount: included
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: WxHxD: 95x60x75 mm
Slots for parktronic sensors: not present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 210x33x60 cm (82.7x13x23.6 in)
Package weight: 68 kg (149.9 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 4 mm steel A 516-55
Brackets material: 5 mm and 6 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube

FAQ

What winch can I install in the Ford F-150 Raptor front bumper?

The BMS ALFA is compatible with WARN VR EVO 10-S and WARN VR EVO 12-S winches with synthetic rope, as well as similar models.

If you choose another winch, compare its overall dimensions and mounting pattern with the built-in winch mount before purchase.

Can I install the bumper first and add a winch later?

Yes. The winch mounting platform is installed as part of the BMS ALFA heavy duty front bumper, so the bumper can be fitted first and the winch added later.

If you already plan to buy a winch soon, installing both at the same time is more convenient because it avoids removing and reinstalling the bumper for access.

Will the front suspension sag after installing the bumper and winch?

The bumper by itself should not have a significant effect on the F-150 Raptor suspension. The complete packaged assembly weighs 68 kg, and the factory front bumper is removed during installation, so the entire packaged weight is not added to the front axle.

Upgraded suspension becomes more relevant if the truck is being prepared for serious expedition use with additional heavy duty bumpers, other accessories, and consistently heavy cargo loads.

Can a bull bar replace a heavy duty front bumper on the Ford F-150 Raptor?

They serve different purposes. A bull bar mounts in front of the factory bumper and protects part of the front end, but it retains the original front overhang and may increase it slightly depending on the design.

The BMS ALFA replaces the factory bumper, improves approach clearance, and provides a built-in winch mount. For an off-road build, the two solutions offer very different levels of functionality.

Will this front bumper fit a standard 2009–2014 Ford F-150?

No. This BMS ALFA front bumper is designed specifically for the Ford F-150 Raptor and does not fit standard F-150 models from the same model years.

Will the BMS ALFA protect the F-150 Raptor in a collision?

The steel front bumper is stronger than the factory plastic bumper and can provide additional front-end protection during contact with obstacles.

It does not provide complete collision protection. A severe impact can still damage the bumper, its mounting points, the body, frame, and other vehicle components.

Can the BMS ALFA be used on public roads?

This is an aftermarket front bumper, and road-use requirements can vary by location. If your Ford F-150 Raptor is driven on public roads, check local requirements before installation.
