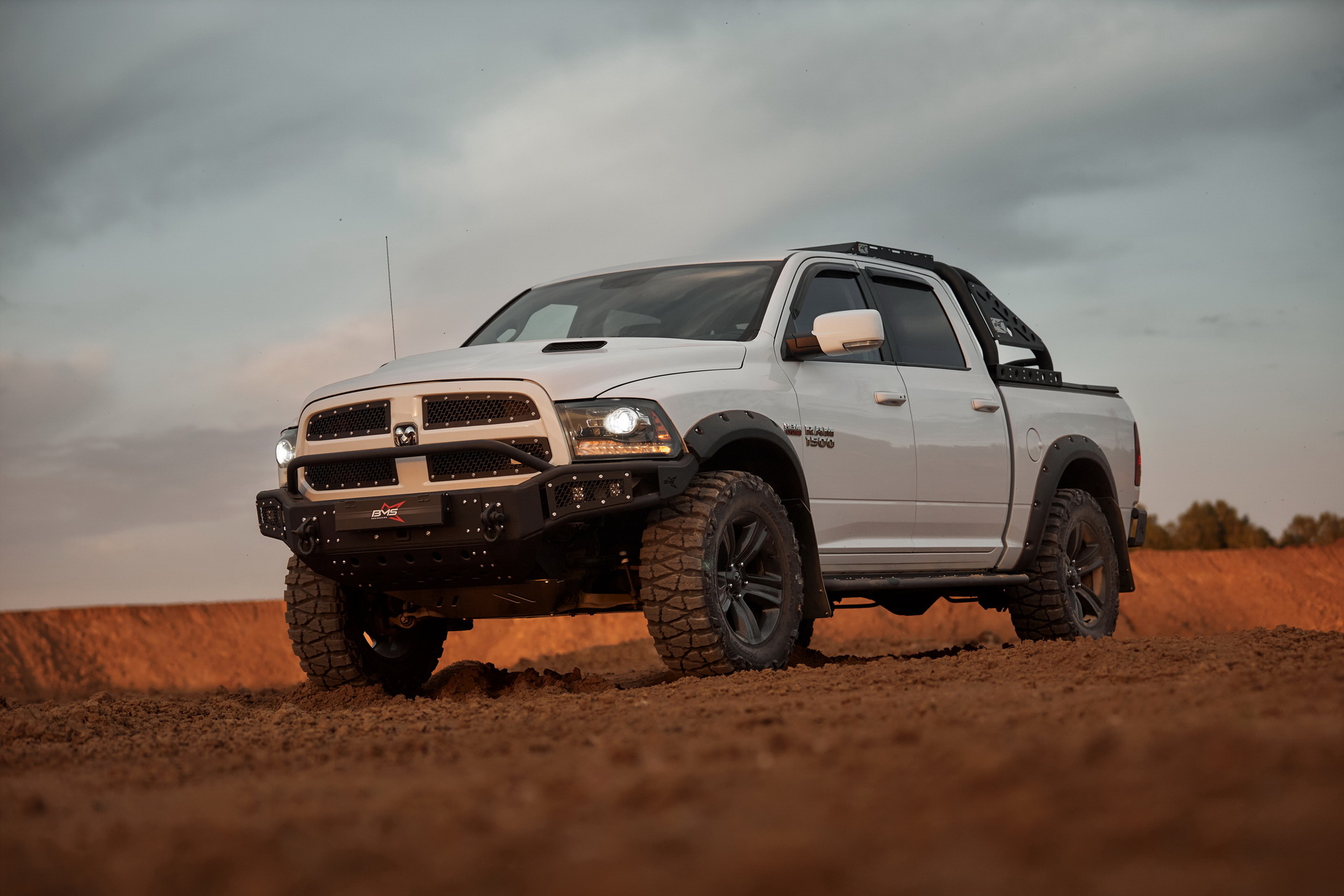

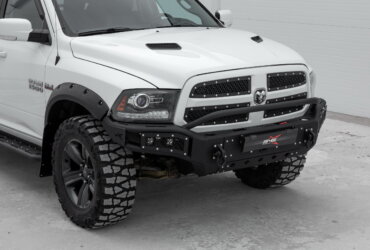

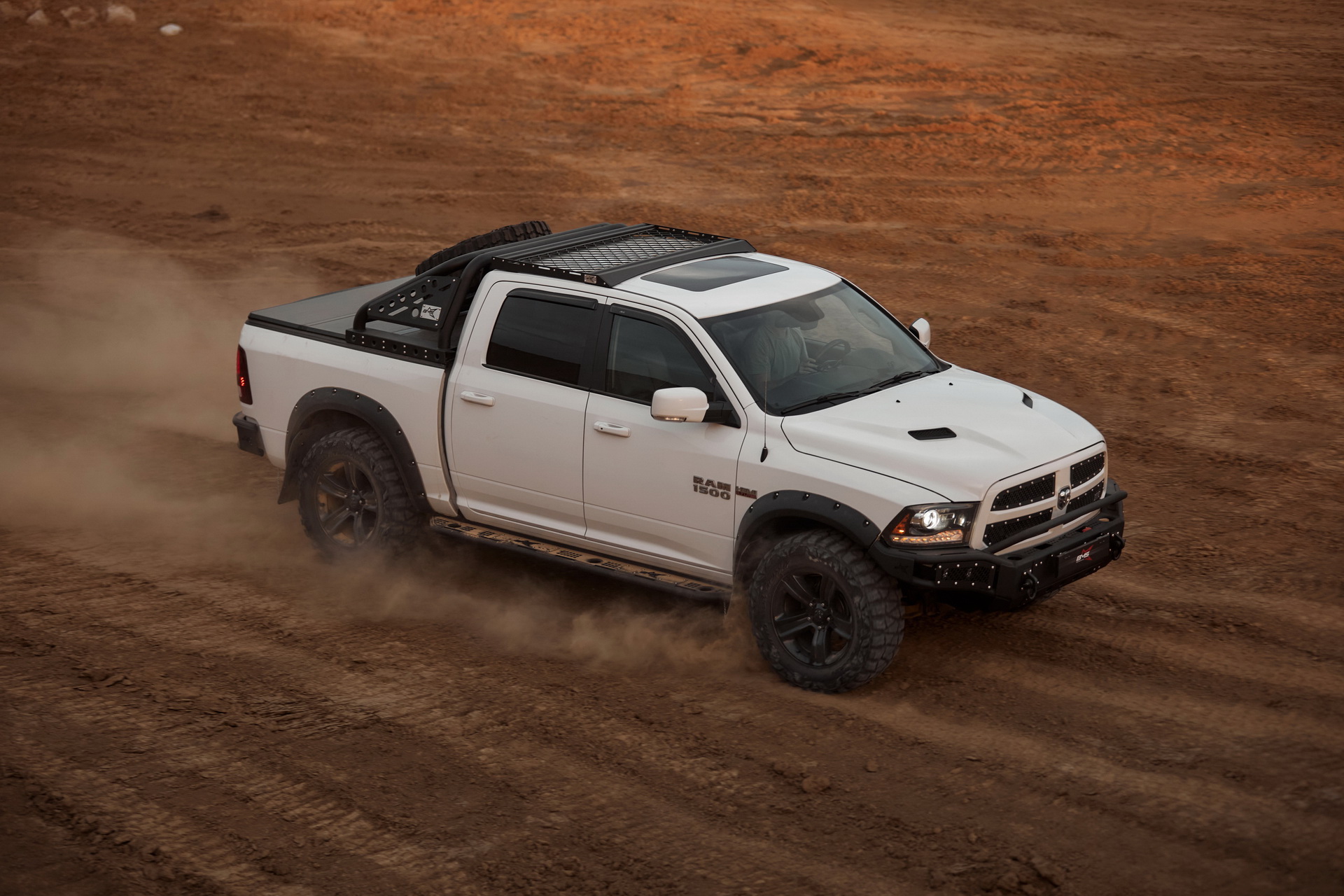

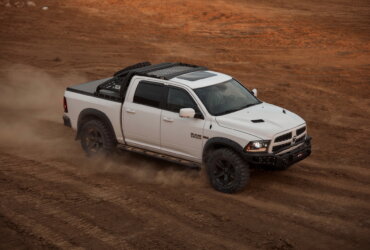

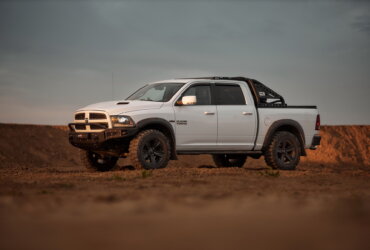

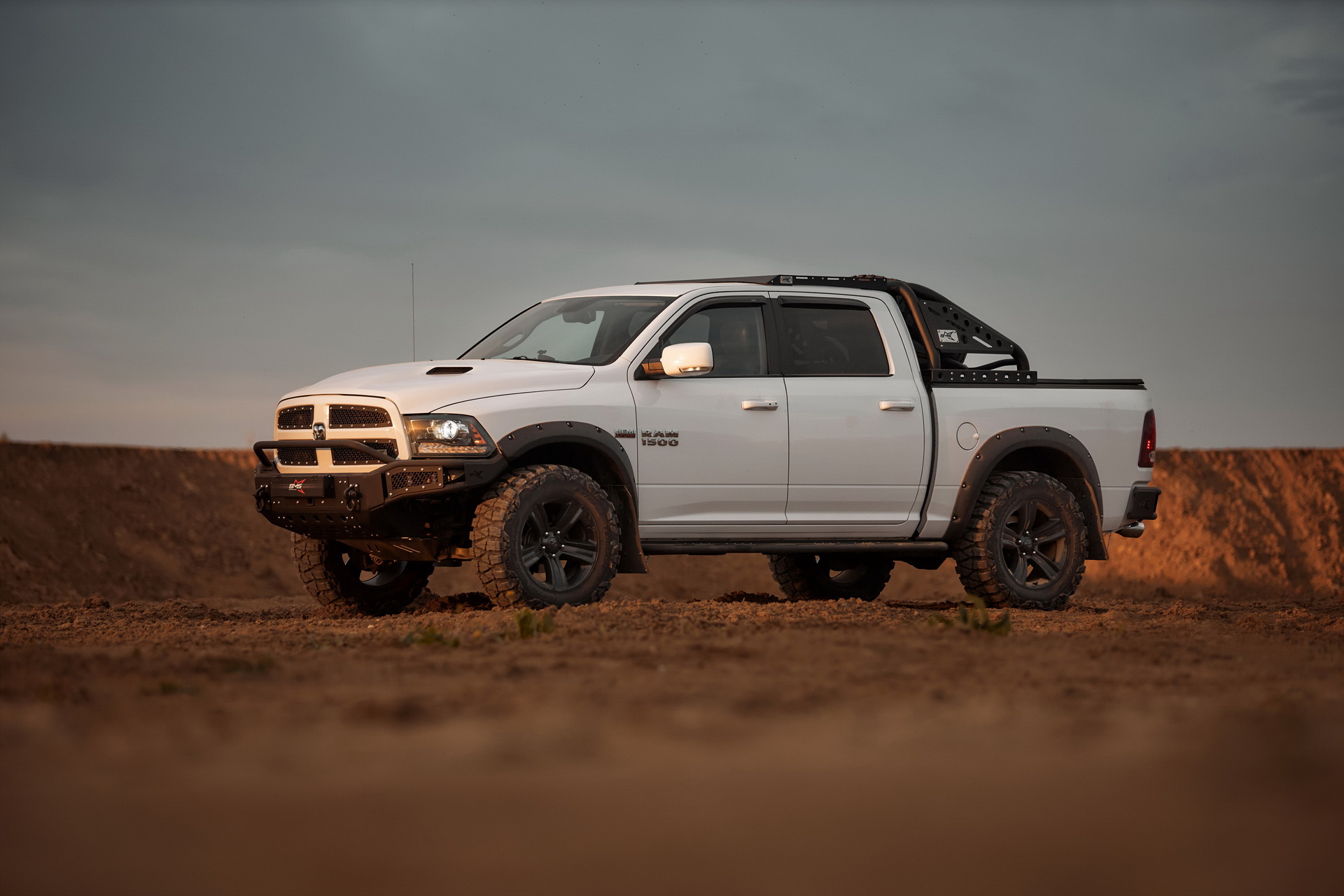

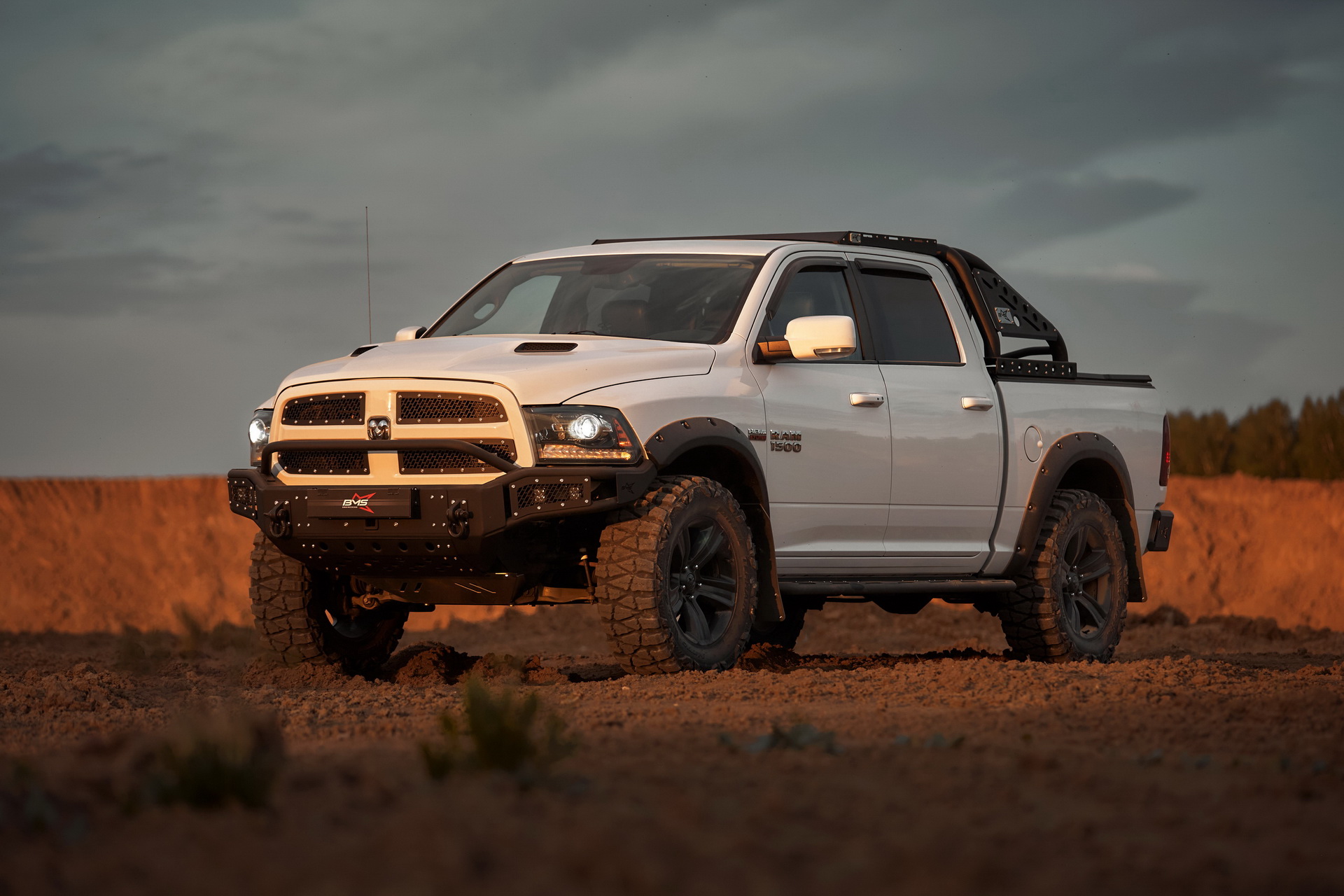

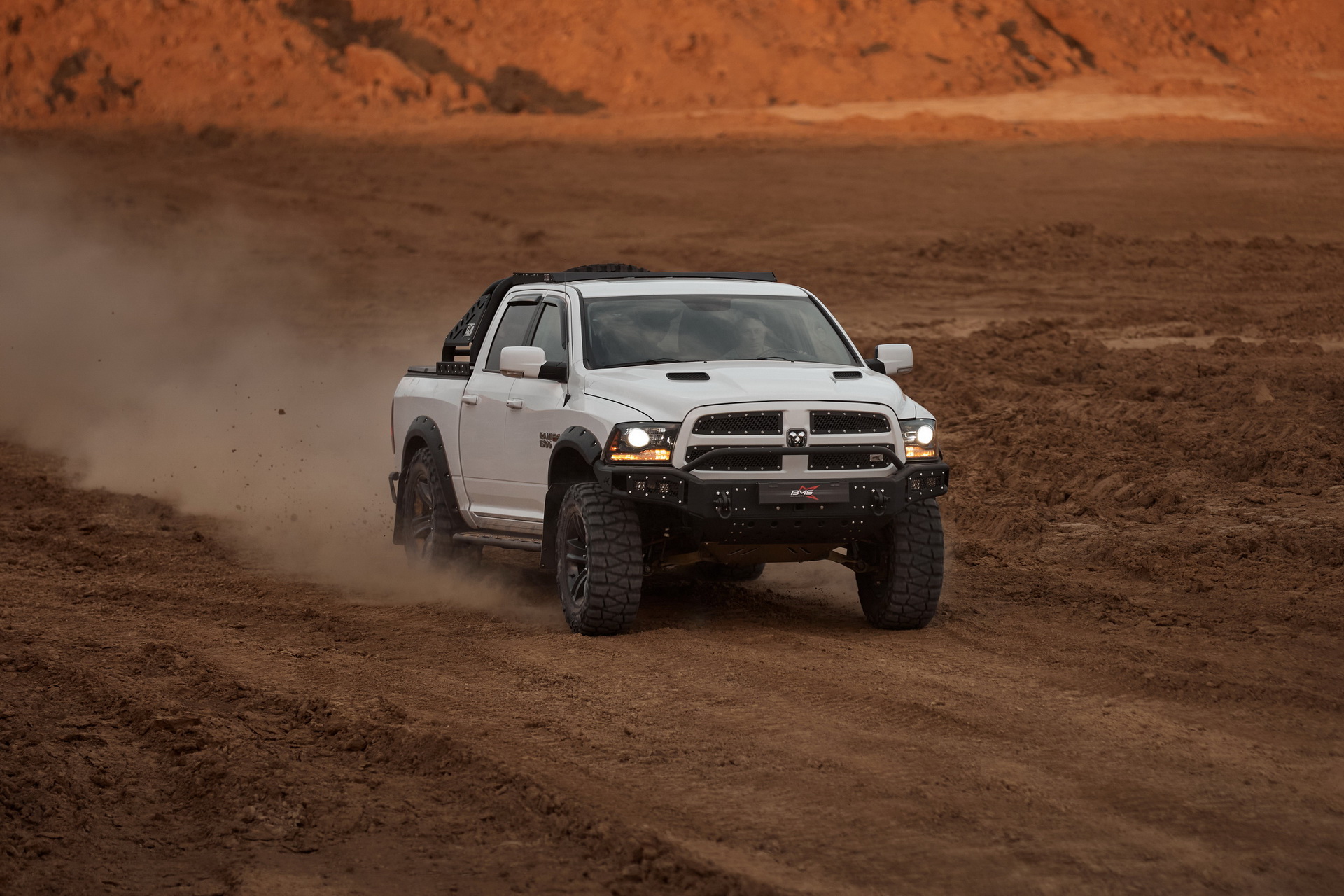

Front Bumper BMS ALFA for Dodge RAM 1500 2009–2017 with Fender Flares

Better approach clearance, stronger front-end protection, and accessible recovery hardware give the RAM 1500 more room to work when the road gets rough.

The RAM 1500 is often upgraded for outdoor travel, remote work, and trips beyond pavement. One common limitation of the factory setup is the low position of the front bumper. On forest roads, deep ditches, and abrupt terrain changes, the truck itself may still have plenty of capability while the bumper is already catching the ground. A better front bumper should do more than handle occasional contact – it should also give the truck more clearance to get through obstacles.

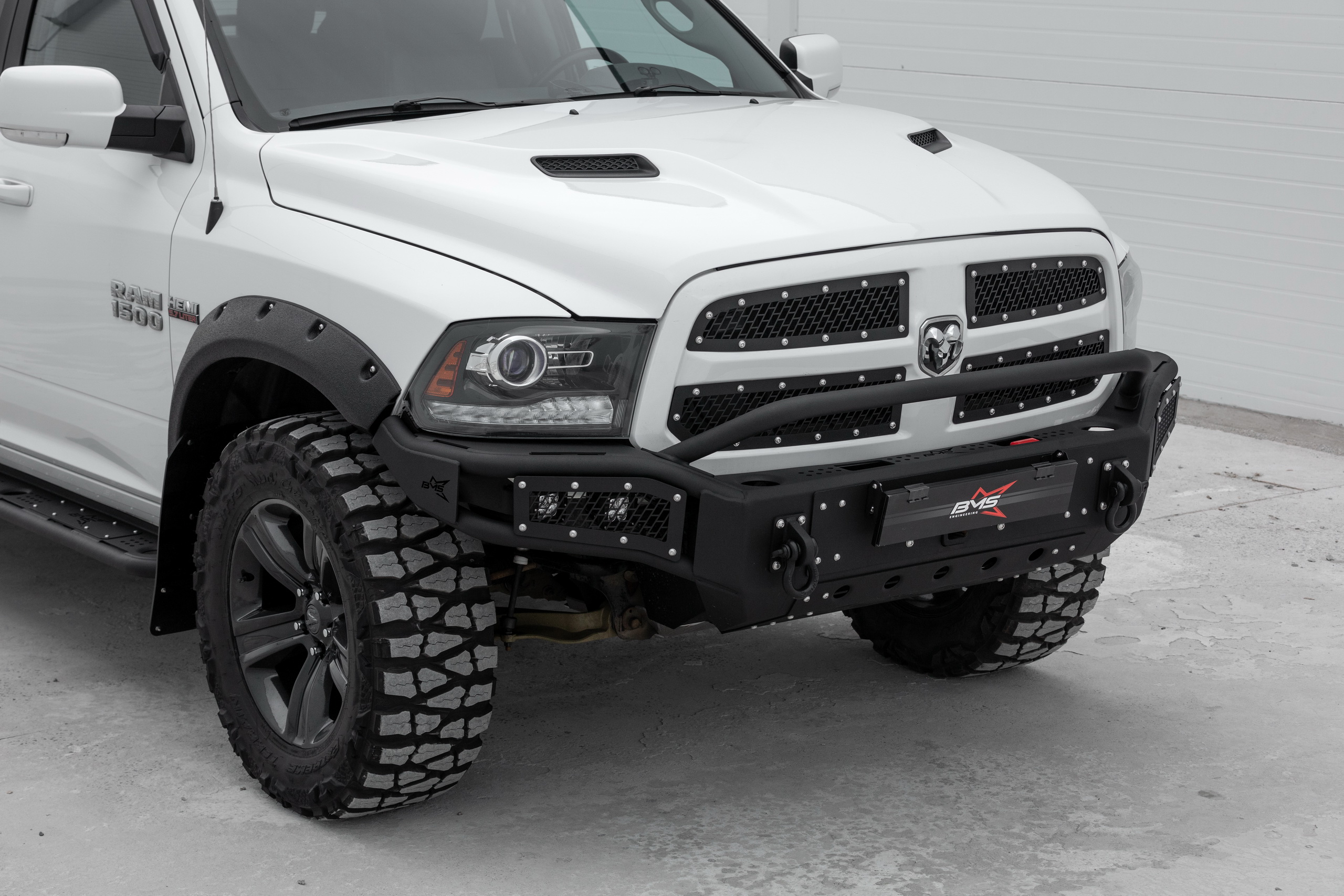

The BMS ALFA steel front bumper improves both protection and front-end geometry. Its steel construction is stronger than the factory plastic bumper, while improved approach clearance helps the RAM 1500 catch the ground less often on difficult sections. Two external heavy-duty D-ring mounts keep recovery gear easy to access if the truck gets stuck. If a strap or rope does not have a hook, it can be attached to the built-in recovery points using compatible, properly rated shackles.

Installation of the BMS ALFA does not require vehicle modification, and the bumper includes a built-in winch mount. That capability is useful far beyond expedition travel. A familiar dirt road to a jobsite, campsite, or rural property can become difficult after heavy rain, and another capable vehicle may not be nearby. A winch gives the RAM 1500 a practical self-recovery option so the trip does not have to end there.

The BMS ALFA heavy duty front bumper is a strong fit for RAM 1500 owners who want more freedom for work, recreation, and travel. It keeps the truck’s recognizable American character while making it better prepared for the situations that can turn an ordinary trip into a real adventure. More capability for the RAM 1500 means more confidence in choosing where the next route can take you.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060066
Application: Dodge RAM 1500 2009-2017 with fender flares, gasoline engine only
Installation method: fully bolt on
Mounting kit: included

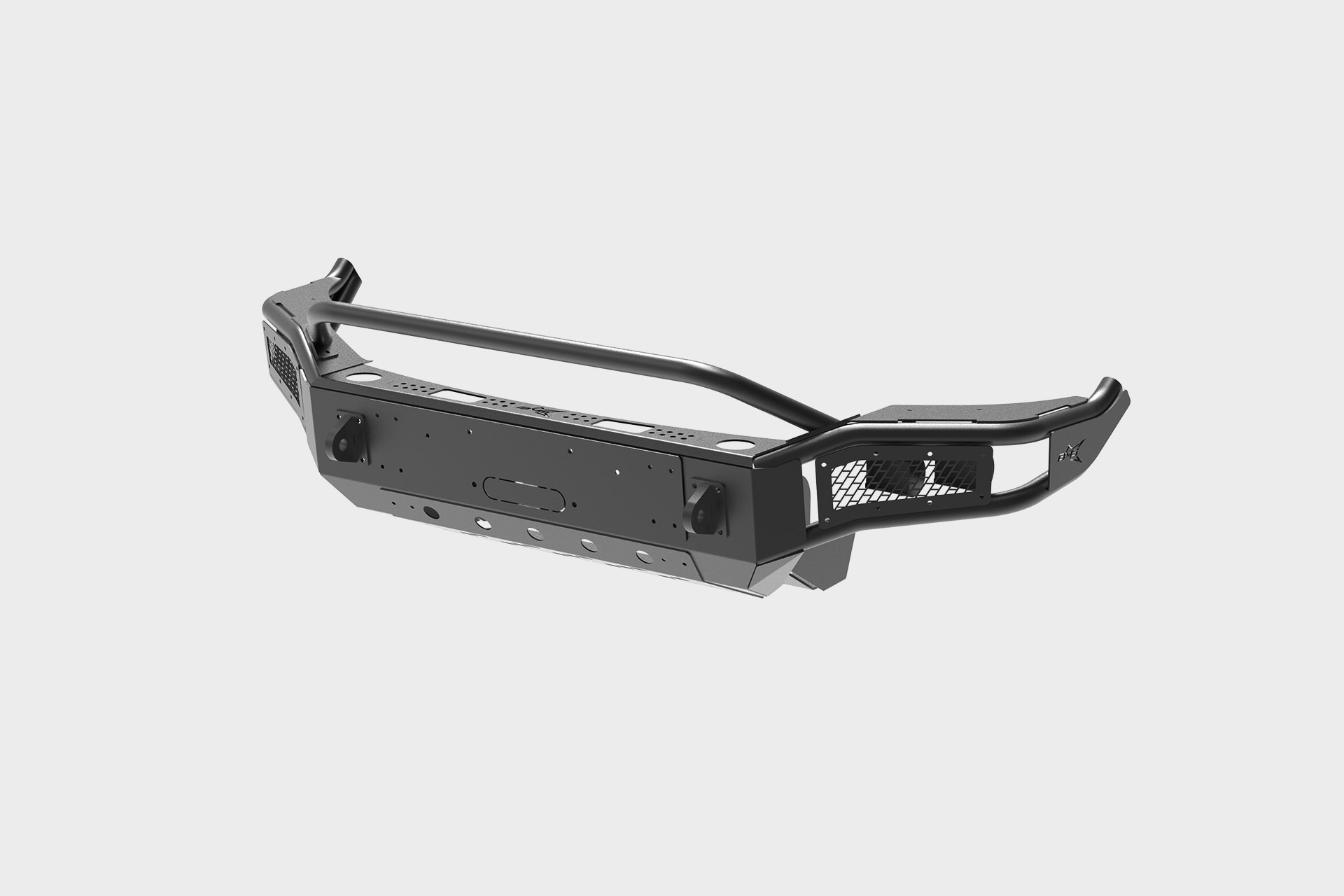

Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, bull bar, 2 pcs recovery points, and product passport
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: 2 fog light slots, WxHxD: 95x60x75 mm
Slots for parktronic sensors: not present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 220x58x74 cm (86.6×22.8×29.1 in)
Package weight: 70 kg (154.3 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 4 mm steel A 516-55
Brackets material: 5 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube

FAQ

Why can this heavy duty front bumper only be installed on a RAM 1500 with fender flares?

The BMS ALFA is designed for the wider front profile of a RAM 1500 equipped with fender flares. If it is installed on a truck without them, the outer edges of the bumper will extend beyond the body line.

That width is intentional. Fender flares and larger off-road tires are a common part of RAM 1500 builds, and this bumper is designed around that wider configuration.

Will this steel front bumper fit a diesel RAM 1500?

We recommend installing the BMS ALFA only on gasoline-powered RAM 1500 models, because that is the configuration the bumper has been tested and fitted on.

The bumper has not been tested on diesel models. The intercooler may interfere with installation, so a custom solution could be required.

Does installation require cutting the body or factory bumper?

No. Installation does not require modifying the vehicle. The factory front bumper is removed, and the BMS ALFA installs in its place using the included mounting brackets and hardware.

What winch should I install in the RAM 1500 front bumper?

The BMS ALFA can accommodate a WARN VR EVO 10-S or WARN VR EVO 12-S with synthetic rope.

Choose the winch according to the truck’s fully loaded weight, including passengers, cargo, and additional equipment. If the RAM 1500 is often heavily loaded, the higher-capacity option is the better choice.

Comparable winches may also fit, but their overall dimensions and mounting pattern should be checked against the built-in winch mount before installation.

Can I install the bumper first and add a winch later?

Yes. The BMS ALFA can be installed without a winch and upgraded later.

If you already plan to add a winch soon, installing both at the same time is more convenient because the bumper will not need to be removed again for access.

What are the recovery points for, and can they be removed?

The BMS ALFA includes external heavy-duty D-ring mounts for attaching recovery gear when the RAM 1500 is stuck or when helping another vehicle.

If a recovery strap or rope does not have a hook, attach it to the built-in recovery points using compatible, properly rated shackles.

The mounts are removable, so they can be unbolted if you do not need them.

Which is better for a RAM 1500: a heavy duty bumper or a bull bar?

For a truck being prepared for off-road use, a heavy duty front bumper is the more functional option. A bull bar mounts in front of the factory bumper, protects only part of the front end, and may increase front overhang depending on its design.

The BMS ALFA replaces the factory bumper, improves approach clearance, and provides a built-in winch mount. A bull bar is better suited as an additional protection and styling component, while the BMS ALFA is intended as a more complete off-road upgrade.

Is a steel front bumper useful for forest-road travel?

Yes, especially if the route leaves pavement for remote forest tracks, fishing spots, campsites, or other undeveloped areas.

After rain, dirt roads can develop deep ruts and washed-out sections, while rocks and exposed roots are not always easy to spot in advance. Improved approach clearance helps the RAM 1500 catch the front end less often, the steel bumper is better suited to occasional contact with obstacles, and a winch adds another self-recovery option when traction is not enough.

Can the BMS ALFA be used on public roads?

This is an aftermarket front bumper, and road-use rules can vary by location. If your RAM 1500 is driven on public roads, check local requirements before installation.
