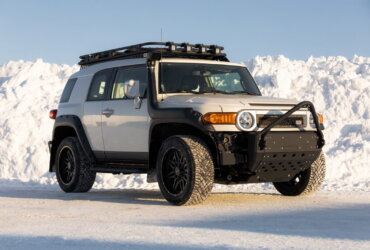

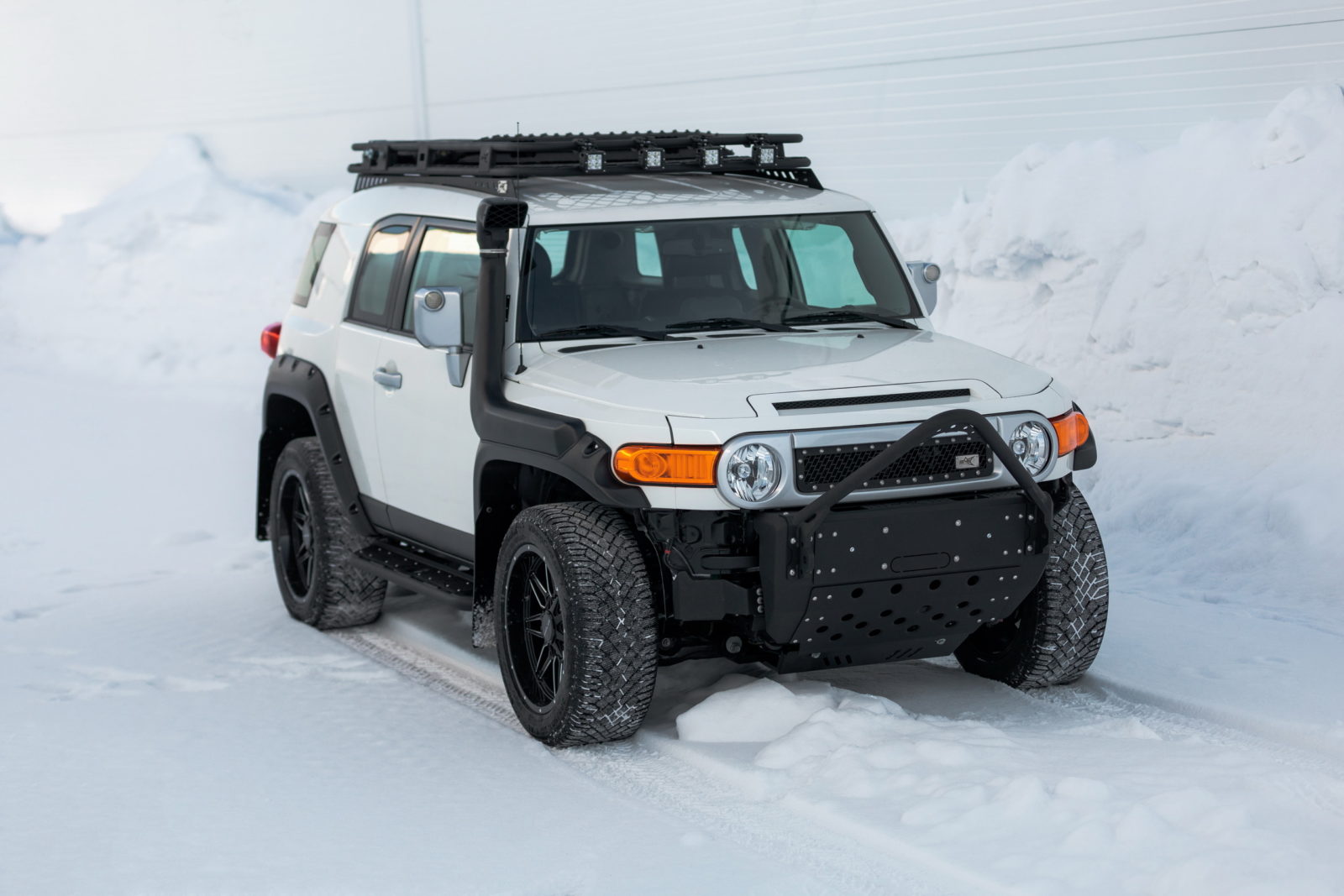

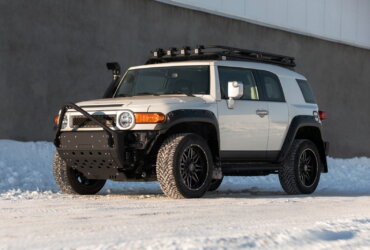

Front Bumper BMS Adventure for Toyota FJ Cruiser 2005-2023

Maximum approach clearance, stronger front-end protection, built-in recovery points, and winch-ready capability give the Toyota FJ Cruiser a more trail-focused front-end setup.

The FJ Cruiser is valued for its unmistakable design, rugged character, and genuine off-road capability straight from the factory. On difficult routes, however, the factory front bumper extends far enough forward to catch the ground on steep climbs, large rocks, washout edges, and exits from deep ruts. For owners preparing the SUV for serious terrain, the goal is not simply to protect the factory bumper – it is to remove a limitation and add useful recovery equipment.

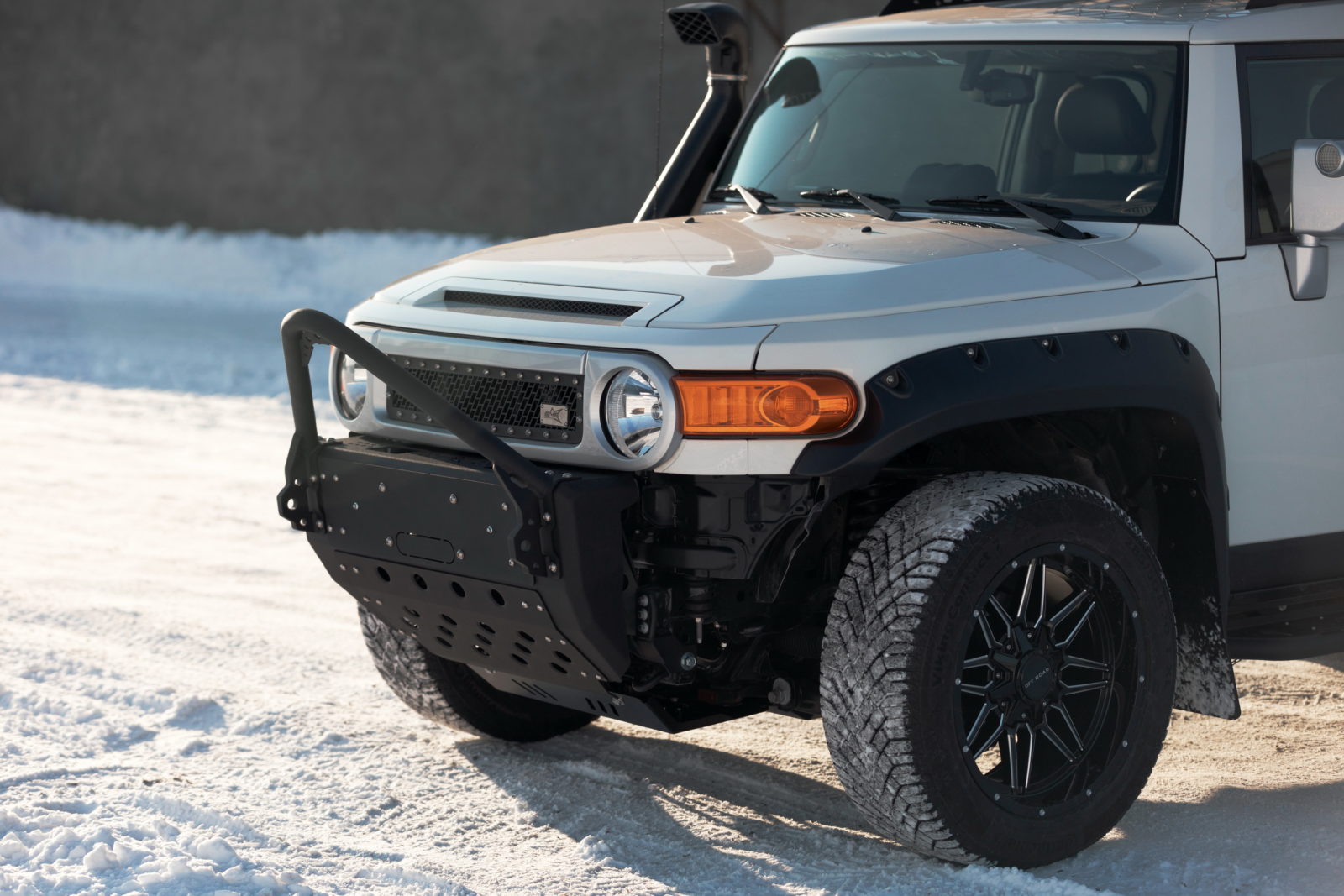

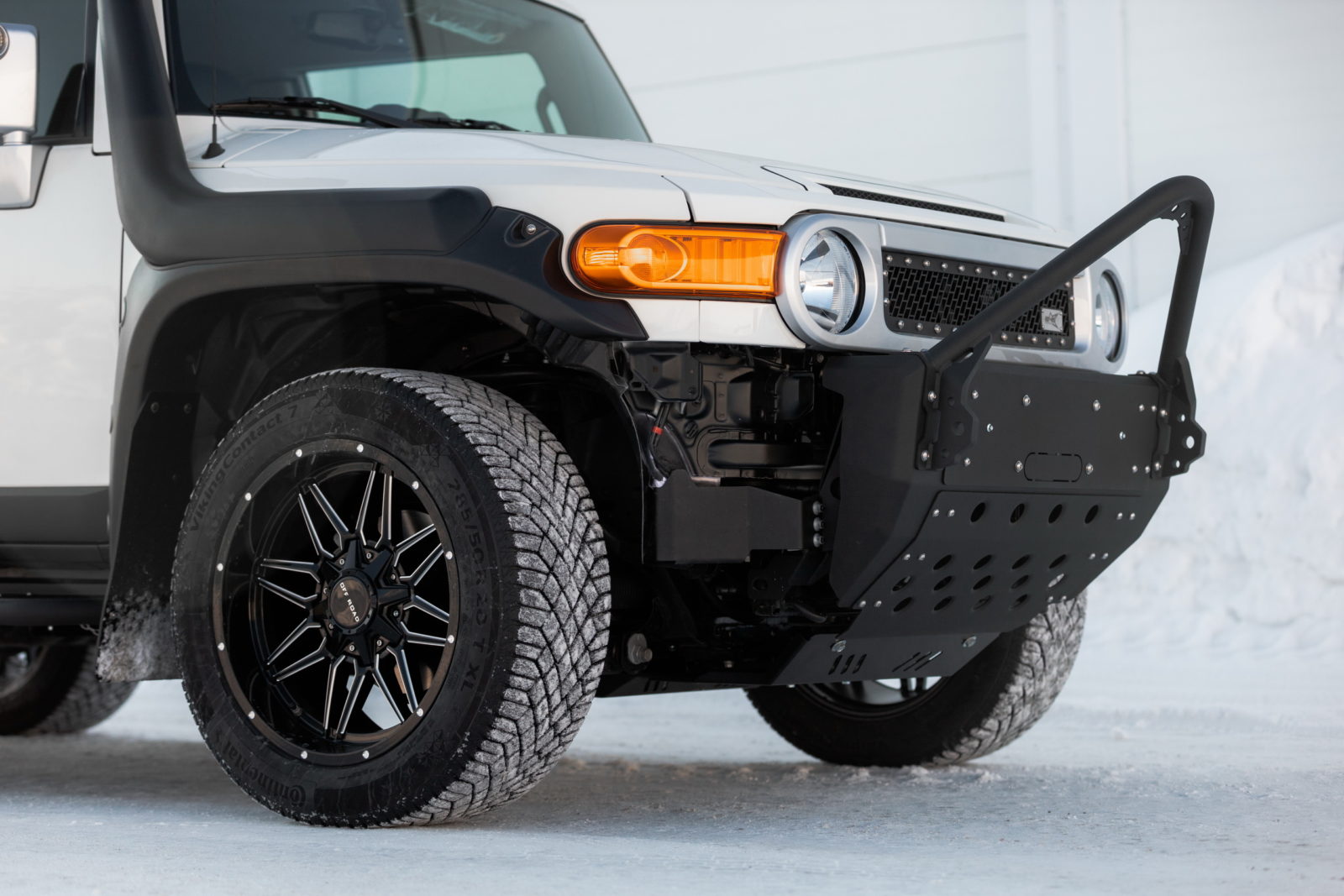

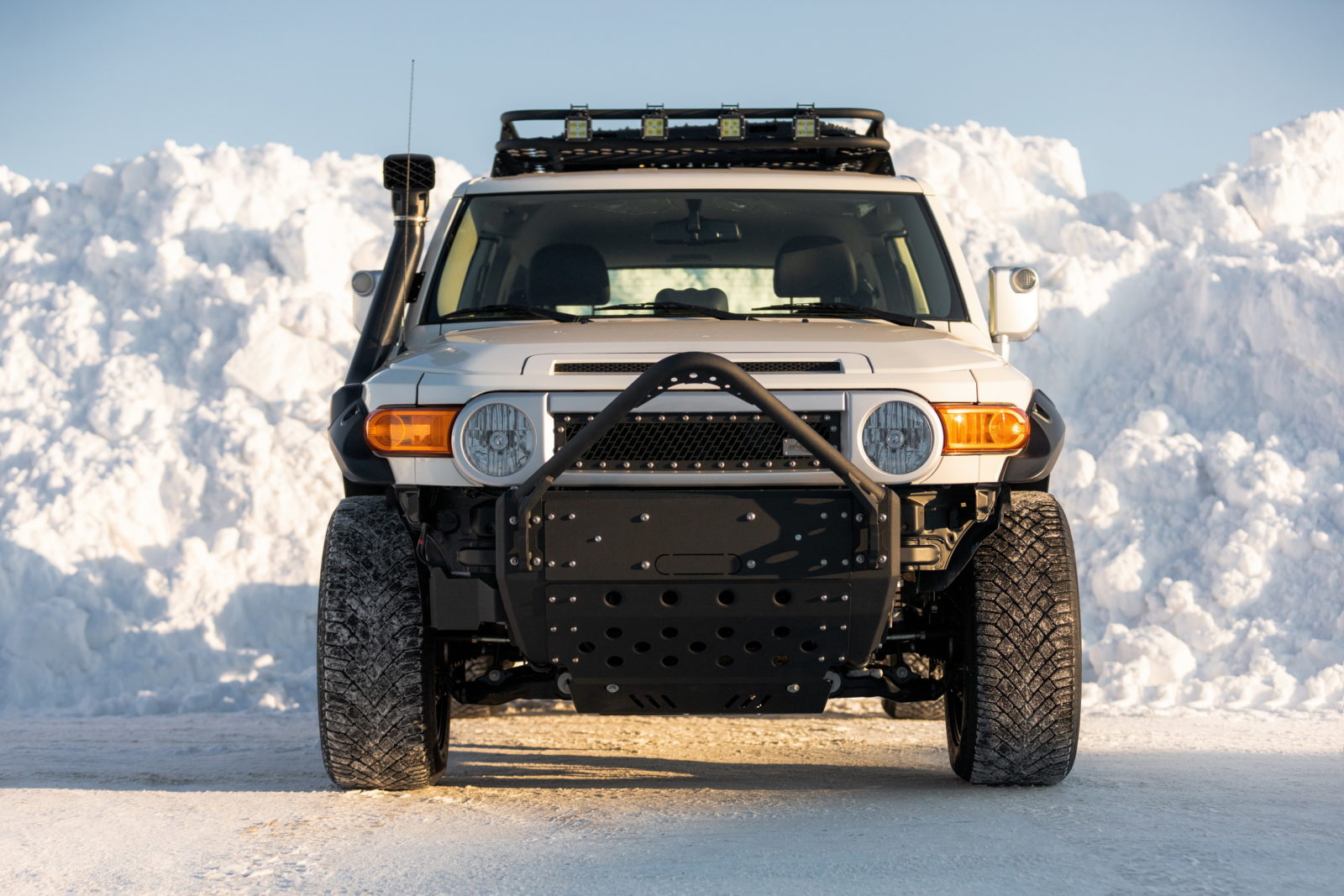

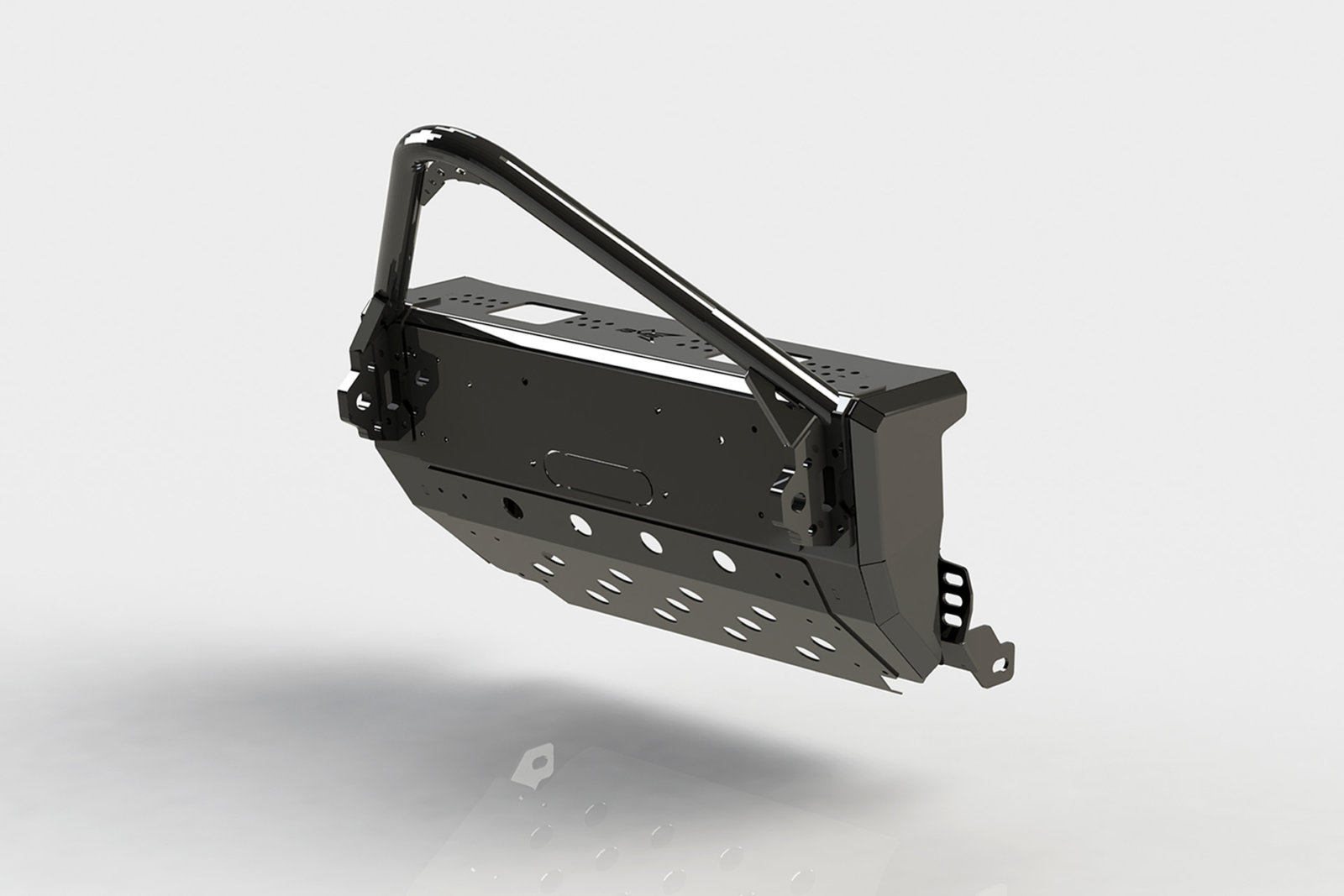

The BMS Adventure is a compact, stubby steel front bumper that protects the center of the vehicle while leaving more open space in front of the wheels. This design significantly improves approach geometry and helps the FJ Cruiser clear obstacles, sharp terrain changes, and the edges of washouts with less interference from the front end. Its steel construction is also better suited to contact with rocks and other trail obstacles, helping protect the radiator and central front-end components.

Installation does not require trimming the factory plastic or modifying the vehicle. Built-in recovery points provide a clear place to attach compatible shackles and recovery gear if the FJ Cruiser becomes stuck or needs assistance on difficult terrain.

The bumper also includes a built-in winch mount. A front winch gives the FJ Cruiser an important self-recovery option when the vehicle cannot continue under its own power and no other capable vehicle is nearby.

The BMS Adventure aftermarket front bumper is intended for owners who prioritize clearance, recovery function, and maximum freedom when choosing a line through difficult terrain. Its bold, compact design looks aggressive on the FJ Cruiser while delivering practical capability for routes far beyond ordinary roads.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: BMS060171
Application: Toyota FJ Cruiser 2005-2023
Installation method: fully bolt on
Mounting kit: included
Features of the complete set: The set includes an off-road bumper, mounting brackets, bolt kit, bull bar, product passport, 2 pcs recovery points, and washer tank protection plate
Winch mount: present
Compatible winch: WARN VR EVO 10-S, WARN VR EVO 12-S with synthetic cable, and analogues
Light slots: not present
Slots for parktronic sensors: not present
Hi-Lift jack points: not present
Body lift compatibility: not provided
Package size: 112x68x36 cm (44.1×26.8×14.2 in)
Package weight: 50 kg (110.2 lb)

TECH SPECS:

Color: Black powder coating finish
Bumper material: 4 mm steel A 516-55, D45x2.5 SAE 1020 steel tube
Brackets material: 6 mm steel A 516-55
Bull bar material: D45x2.5 SAE 1020 steel tube

FAQ

What Toyota FJ Cruiser models does the BMS Adventure front bumper fit?

The BMS Adventure front bumper fits 2005–2023 Toyota FJ Cruiser models. The same bumper design is compatible with vehicles throughout this model-year range.

Does installation require cutting the factory bumper or vehicle body?

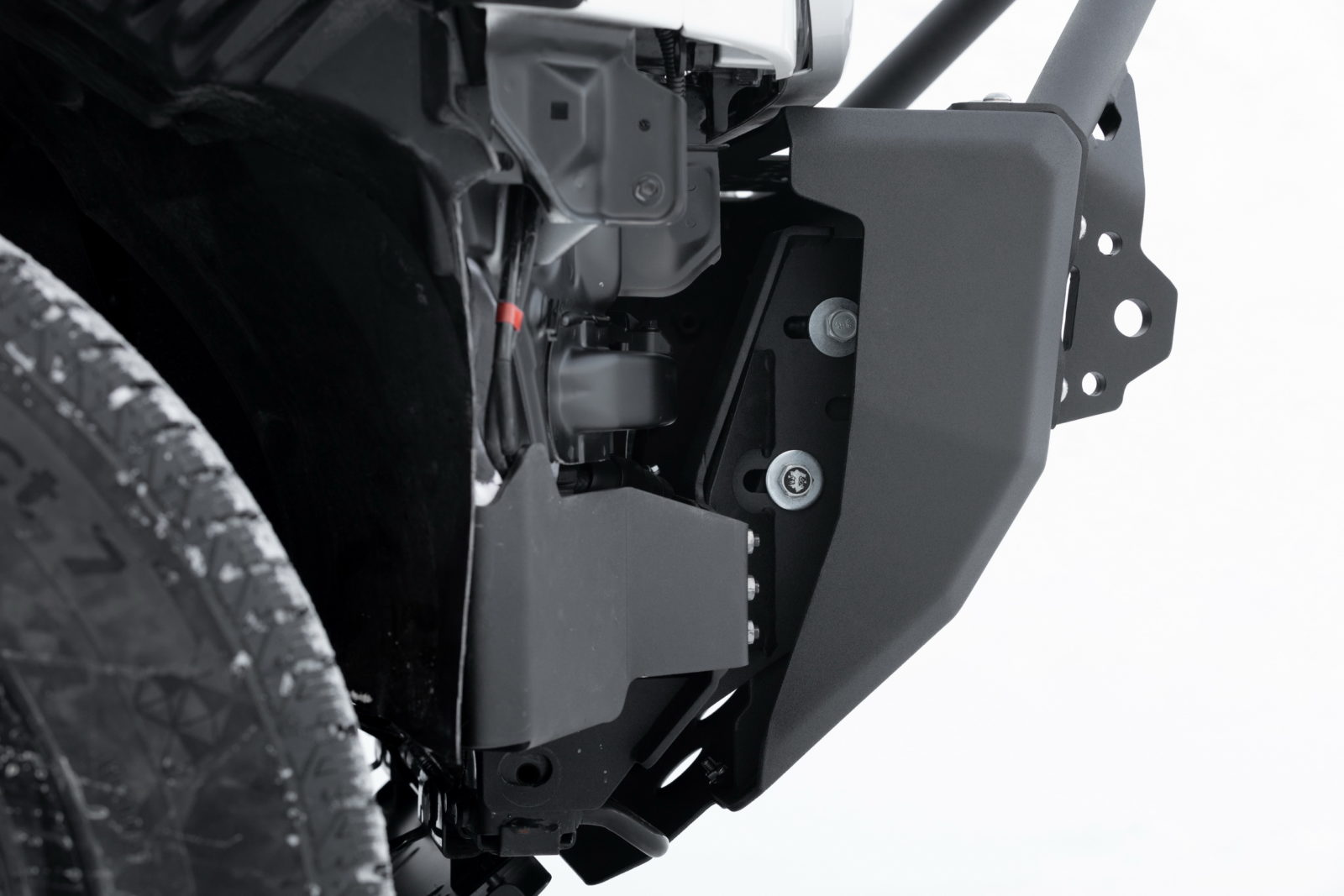

No. Installation does not require trimming the factory plastic, drilling the body, or making other vehicle modifications. The factory bumper is removed, and the BMS Adventure mounts to existing frame attachment points.

The required mounting brackets and hardware are included.

What should I choose for the Toyota FJ Cruiser – BMS Adventure or BMS ALFA?

Choose the BMS Adventure if maximum approach clearance is the main priority. Its compact, stubby design protects the center of the front end while leaving more open space in front of the wheels. This gives the FJ Cruiser greater freedom on rocky terrain, sharp elevation changes, and difficult off-road routes.

The BMS ALFA is better suited to owners who prefer a traditional full-width steel bumper. It protects more of the front end and creates a more conventional heavy duty bumper appearance.

Both bumpers improve approach geometry and support hidden winch installation. The best choice depends on the terrain you drive and the look you prefer.

What winch can I install in the Toyota FJ Cruiser bumper?

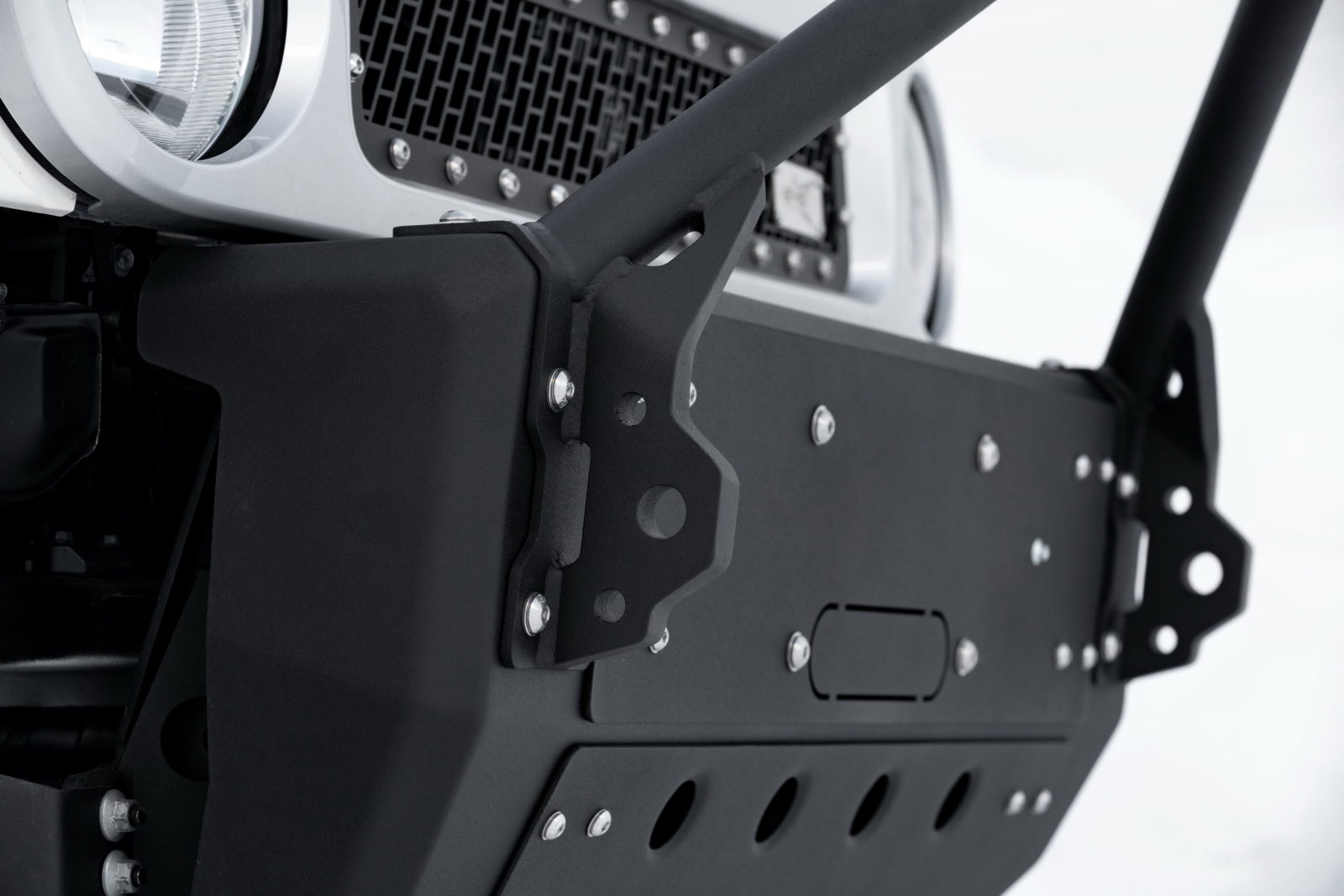

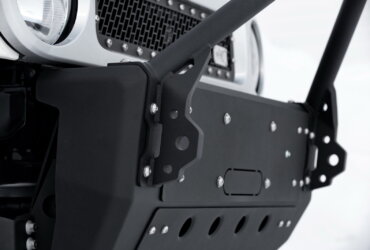

The BMS Adventure includes a built-in winch mount for hidden installation. It is compatible with WARN VR EVO 10-S and WARN VR EVO 12-S winches with synthetic rope, as well as similar models.

When choosing a winch from another manufacturer, compare its housing dimensions and mounting pattern with the available space inside the bumper. Installing the winch at the same time as the bumper is recommended to avoid repeating installation work later.

Will the bumper protect the radiator and engine?

The BMS Adventure steel front bumper is stronger than the factory plastic bumper and can help reduce the risk of damage to the radiator, engine, and other central front-end components during contact with the ground or an obstacle.

But it does not provide complete protection. A strong impact can still damage the bumper, mounting brackets, body, frame, and components behind it.

Is the BMS Adventure suitable for rock crawling?

Yes. Its compact design is particularly useful on rocky routes. The open space in front of the wheels makes it easier to choose a line and helps the FJ Cruiser clear rock ledges, steps, washout edges, and other obstacles without catching the outer sections of the bumper.

For more demanding routes, a winch installed inside the bumper adds a valuable self-recovery option.

Can this bumper be used on public roads?

This is an aftermarket front bumper, and road-use rules can vary by location. If your Toyota FJ Cruiser is driven on public roads, check local requirements before installation.
