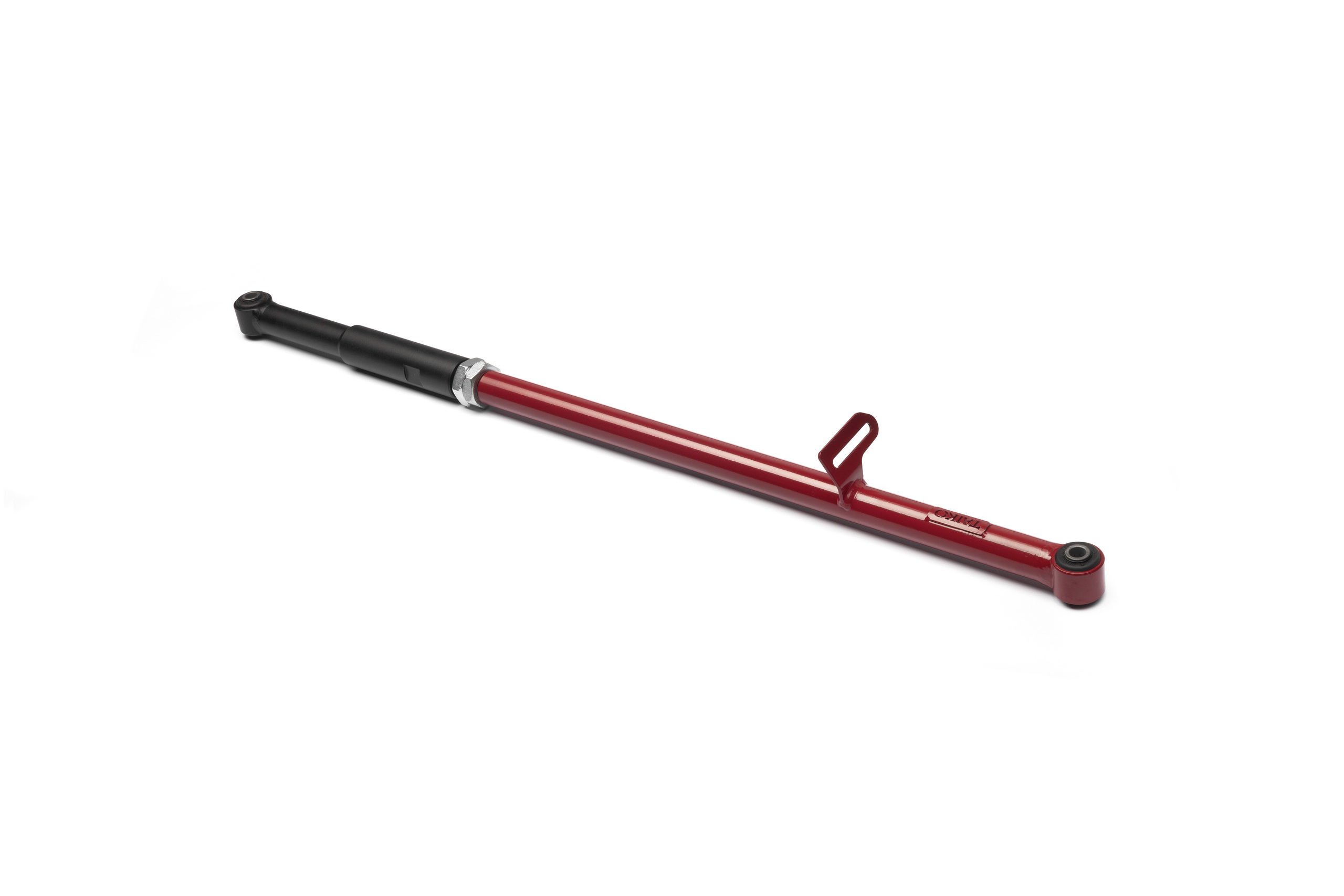

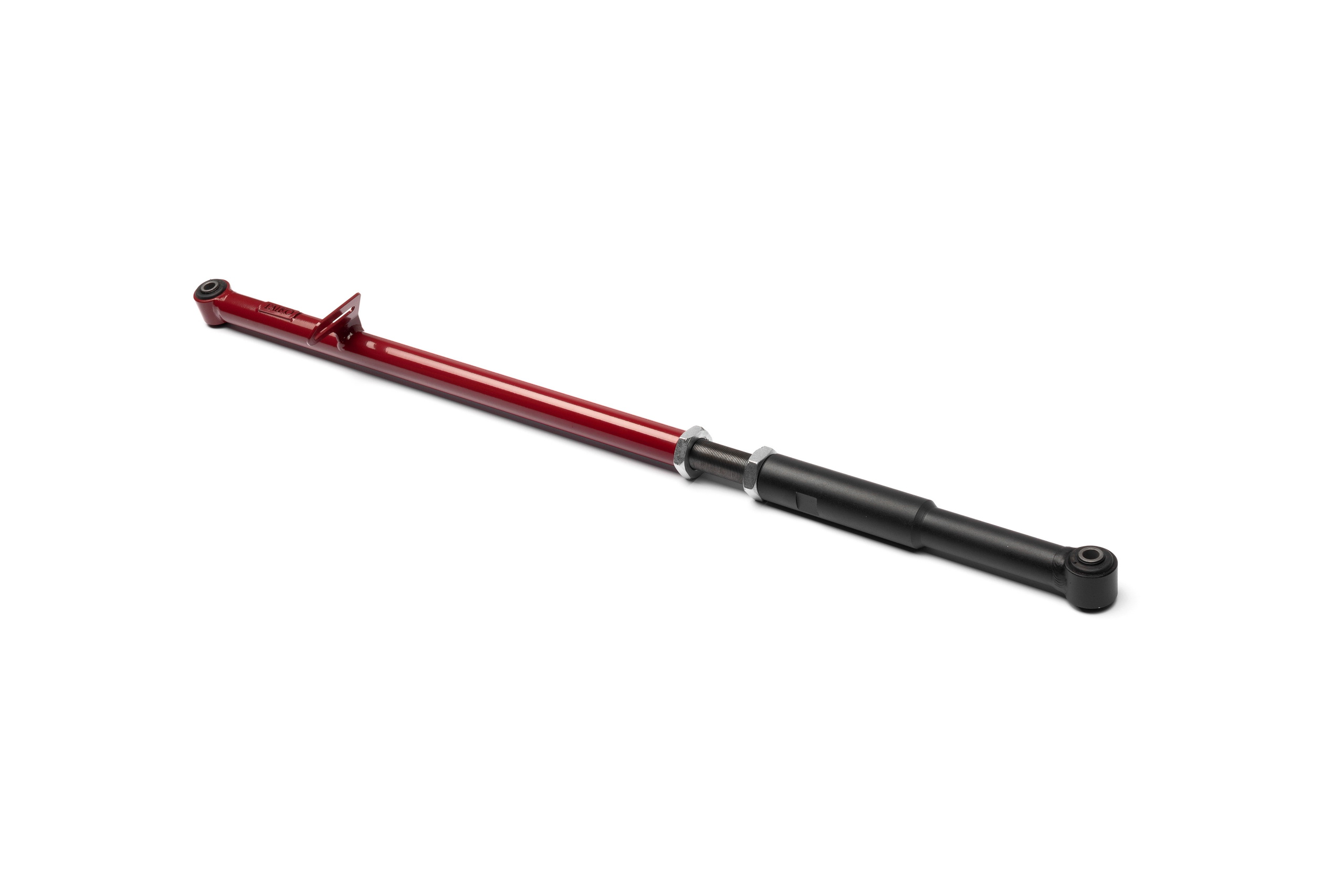

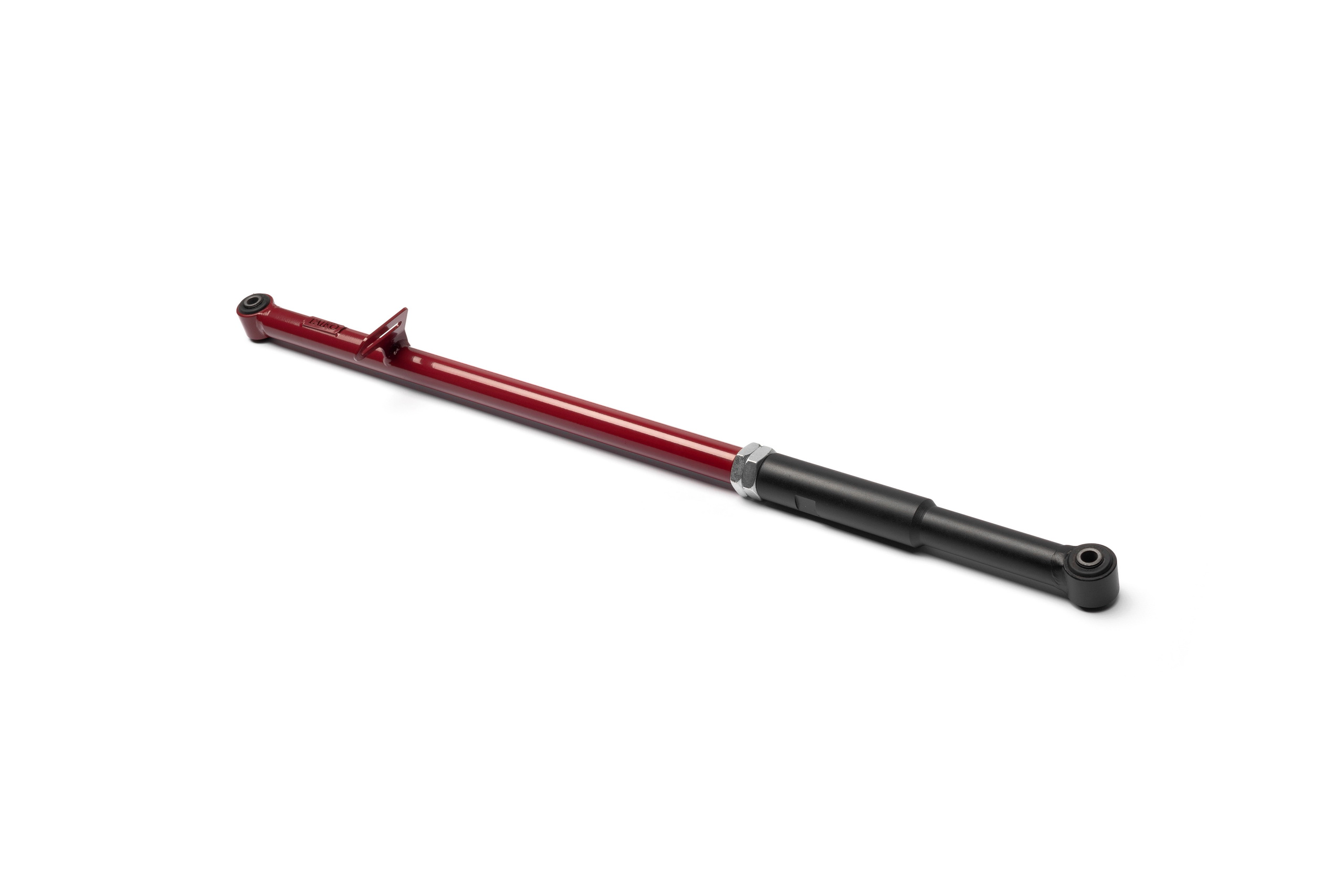

Adjustable Rear Panhard Bar for Toyota Land Cruiser Prado J90 1996-2002

Keep the rear axle in the right position after lifting your Prado 90.

A suspension lift adds useful ground clearance, but it can also move the rear axle off-center because the factory fixed-length track bar was designed for standard ride height. This offset may show up as uneven wheel position in the arches and can make the vehicle feel less settled on highways, gravel roads, and uneven terrain.

This rear adjustable Panhard bar helps correct rear axle position after a lift. By changing the bar length, the installer can re-center the axle in relation to the body and bring the rear suspension back into a more accurate working geometry.

For Toyota Land Cruiser Prado 90 vehicles fitted with taller springs, upgraded shocks, reinforced suspension, or larger wheels, an adjustable track bar is a practical part of a proper suspension setup. It helps ensure that the lift kit does more than increase ride height – it also works with the axle positioned correctly.

This rear Panhard rod is made for owners who use their Prado beyond paved roads and want cleaner suspension geometry, more consistent handling, and better rear axle alignment after suspension modifications.

PRODUCT DETAILS:

• Adjustable rear Panhard bar for Toyota Land Cruiser Prado J90 1996-2002
• Helps correct rear axle offset after a suspension lift
• Suitable for taller springs, upgraded shocks, reinforced suspension, or larger wheels
• Threaded adjustment with lock nut
• Laser cut for accuracy and precision
• Bolt-on installation to factory mounting points
• Supplied with pressed-in bushings and product passport

TECH SPECS:

• SKU: TSL000055
• Material: steel rod D32, D40, D42 (09G2S)
• Application: Toyota Land Cruiser Prado J90 1996-2002
• Modification required: no
• Mounting: factory bolts
• Kit includes: Panhard bar with pressed-in bushings, product passport
• Replacement bushings: CTR CVT-84, SL-1218 and analogues
• Adjustment range: up to 90 mm
• Adjustment method: threaded adjustment with lock nut
• Lift compatibility: up to 4 inches. Higher lift setups depend on suspension geometry, bar length, and joint operating angles.
• Package size: 102x9x9 cm
• Package weight: 6.3 kg
• Finish: black, red polymer coating

FAQ

My vehicle still pulls to one side after alignment. Could the rear suspension be the reason?

Yes, it can happen after a suspension lift. If the front alignment has been adjusted but the vehicle still does not track properly, the rear axle position should also be checked. On a lifted Toyota Land Cruiser Prado 90, the factory fixed-length track bar can leave the rear axle shifted to one side. This offset may affect the overall balance of the vehicle and how it feels on the road.

Should I install an adjustable Panhard bar together with a lift kit?

Yes. It is best to include an adjustable Panhard bar as part of the suspension setup from the beginning. After installing taller springs, upgraded shocks, or a complete lift kit, the installer can re-center the rear axle instead of leaving the suspension with axle offset caused by the factory fixed-length bar.

Why does one end of the Panhard bar need to be disconnected for adjustment?

The length is adjusted through a threaded end. To set the correct length, one side of the bar is disconnected from the mount, the threaded section is turned in or out, and the final position is secured with a lock nut. This design is less convenient than a sleeve-style adjuster, but it gives a stronger and more reliable setup. When properly tightened, the adjustment is not likely to loosen even during active off-road driving.

Does the rear Panhard bar need frequent readjustment?

Usually, no. The rear adjustable Panhard bar is normally set after a suspension lift or after a major change in the vehicle setup. A repeat check may be needed if you change spring height, vehicle load, lift kit configuration, or other rear suspension components.

Why not just lengthen the factory Panhard bar?

Modifying the factory bar requires knowing the exact target length and depends heavily on workmanship quality. A purpose-built adjustable Panhard bar is more practical because the length can be set directly on the vehicle. This is especially important when Prado 90 suspension tuning includes several changes at once, such as taller springs, different shocks, reinforced components, or larger tires.
