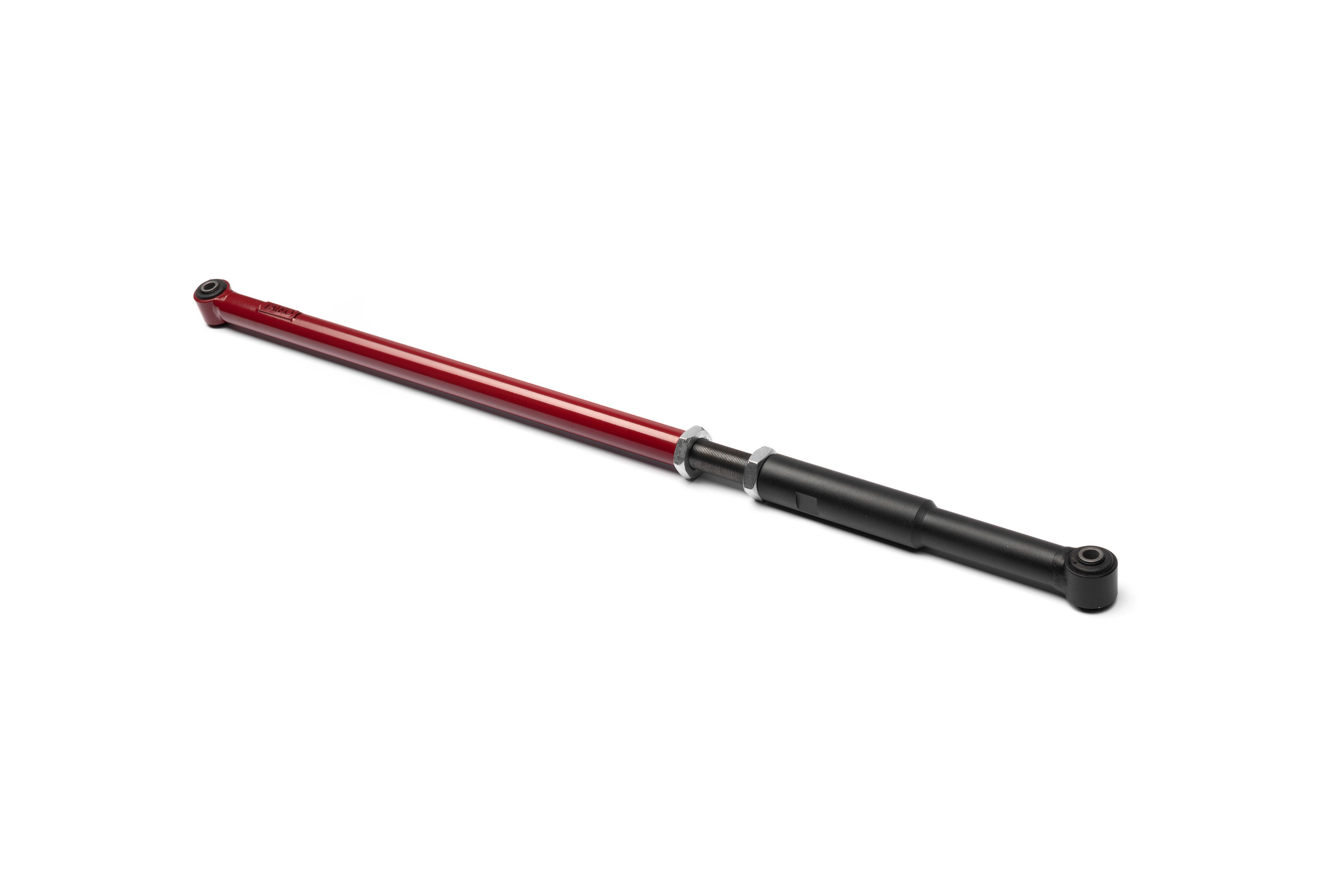

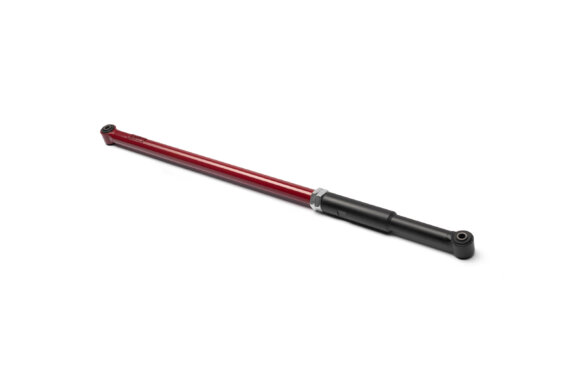

Adjustable Rear Panhard Bar for Toyota Land Cruiser 100 Lexus LX470 1998-2007

Restore rear axle alignment and improve stability after a suspension lift.

After lifting a Toyota Land Cruiser 100 or Lexus LX 470, the rear axle can shift sideways due to changes in suspension geometry. This is often visible in wheel position inside the arches and may affect how stable and composed the vehicle feels during driving.

A rear adjustable Panhard bar helps correct this offset by allowing precise adjustment of the axle position relative to the frame. This makes it possible to re-center the rear axle after suspension modifications and bring the rear suspension back into proper working geometry.

The factory fixed-length track bar is designed for standard ride height and may not fully compensate for changes caused by lift kits or larger wheels. An adjustable solution allows the installer to set the exact length required for the specific vehicle setup, improving overall balance and suspension behavior.

This adjustable rear track bar for Toyota Land Cruiser 100 and Lexus LX 470 is a practical upgrade for owners who use their vehicle for off-road travel, long-distance trips, and mixed terrain driving. It supports correct axle positioning, helps maintain predictable handling, and ensures the lifted suspension operates as intended.

PRODUCT DETAILS:

• Adjustable rear Panhard bar for Toyota Land Cruiser 100 and Lexus LX470 1998-2007
• Helps re-center the rear axle after a suspension lift
• Designed for lifted vehicles with changed rear suspension geometry
• Threaded adjustment with lock nut
• Laser cut for accuracy and precision
• Bolt-on installation to factory mounting points
• Supplied with pressed-in bushings and product passport

TECH SPECS:

• SKU: TSL000040
• Material: steel rod D42, D32 (09G2S)
• Application: Toyota Land Cruiser 100 1998-2007, Lexus LX470 1998-2007
• Modification required: no
• Mounting: factory bolts
• Kit includes: Panhard bar with pressed-in bushings, product passport
• Replacement bushings: TAB-134 and analogues
• Adjustment range: up to 90 mm
• Adjustment method: threaded adjustment with lock nut
• Lift compatibility: up to 4 inches. Higher lift setups depend on suspension geometry, bar length, and joint operating angles.
• Package size: 116x6x6 cm
• Package weight: 8.6 kg
• Finish: black, red polymer coating

FAQ

Do I need to replace the Panhard bar after lifting a Land Cruiser 100 or Lexus LX 470?

In most cases, yes. After a suspension lift, the rear axle shifts sideways because the factory track bar is a fixed-length link between the frame and the axle. This shift can be seen visually through wheel position in the arches and may also affect how stable the rear of the vehicle feels on the road and off-road. An adjustable Panhard bar helps re-center the axle and restore proper suspension geometry after the lift.

How can I tell if the rear axle has shifted due to the Panhard bar?

The most common sign is uneven wheel positioning in the wheel arches after installing a lift kit. If the suspension is in good condition but the axle is still visibly offset to one side, the factory Panhard bar is usually the reason.

Is an adjustable Panhard bar needed for a 2-4 inch lift?

Yes. This TAIKO Panhard bar is designed to work within a lift range of up to 4 inches. Within this range, the adjustment is typically sufficient to re-center the rear axle. For higher lifts, fitment should be checked individually, since geometry, mounting angles, and suspension travel may vary.

Can the Panhard bar be installed without suspension modifications?

Yes. Installation is bolt-on and uses factory mounting points. No cutting or modification of the vehicle is required.

Will the adjustment loosen during driving?

No. The adjustment is secured with a threaded design and lock nut system. When properly installed and tightened, the setting remains stable even under prolonged off-road use and vibration.

Does an adjustable Panhard bar improve handling?

Yes. Correct axle alignment helps the suspension work as intended, improving stability and making vehicle behavior more predictable both on-road and off-road.

Can the bushings be replaced separately?

Yes. The TAIKO Panhard bar uses replaceable bushings, compatible with TAB-134 or equivalent parts. This allows maintenance without replacing the entire bar when the bushings wear out.
