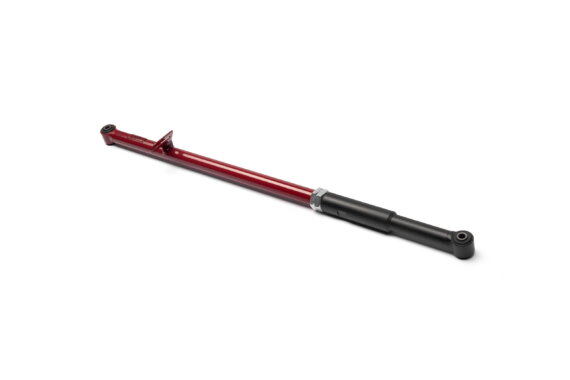

Adjustable Rear Panhard Bar for Nissan Terrano 1986-1995

Keep your lifted Terrano stable after changing ride height.

The Nissan Terrano WD21 is often upgraded with extra ground clearance and larger tires for broken roads, trails, and off-road use. But once the suspension height changes, the factory fixed-length track bar can shift the body position in relation to the rear axle.

The TAIKO rear adjustable Panhard bar helps correct this issue after installing taller springs, spacers, or a lift kit. By adjusting the bar length, the installer can re-center the rear axle and bring the suspension geometry back into a more correct working position.

This is especially important for vehicles that are used not only off-road, but also on highways. Rear axle alignment affects how the vehicle feels at speed, during lane changes, and on uneven surfaces.

For Nissan Terrano WD21 suspension tuning, an adjustable track bar is a practical part of a complete setup. It helps the lifted suspension work more accurately after changes to ride height, wheel size, or rear suspension components.

The TAIKO Panhard bar is made for owners who want their Terrano to remain controlled and predictable on paved roads, gravel tracks, and off-road routes after suspension modifications.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: TSL000075
Application: Nissan Terrano WD21 1986-1995 1st generation
Installation method: fully bolt on
Mounting kit: uses OEM bolts
Features of the complete set: The set includes an adjustable Panhard rod with pressed-in silent blocks and product passport
Replacement parts: NAB-078, NAB-079 silent blocks and analogues
Adjustment range: up to 90 mm
Adjustment method: threaded adjustment with lock nut fixation
Suspension lift compatibility: up to 4 inches. Compatibility with a higher lift depends on mounting geometry, rod length, and joint operating angles.
Package size: not specified
Package weight: 6.8 kg

TECH SPECS:

Color: Black and red powder coating finish
Material: D32, D42, D50, D55 steel rod A 516-55

FAQ:

Will this Panhard bar fit the Nissan Terrano 1986–1995?

Yes. This rear Panhard bar is designed for the Nissan Terrano 1986–1995 WD21.

Before ordering, check the production year and vehicle generation. Later Terrano models may use a different suspension design and mounting layout.

Do I need an adjustable Panhard bar if I only replace the rear springs?

Yes, if the rear ride height changes after the spring replacement.

Even a moderate lift from taller or stiffer springs can change the body position in relation to the rear axle. An adjustable Panhard bar allows the installer to re-center the rear axle according to the actual ride height of the vehicle.

Is this part useful for a small suspension lift?

Yes, if you want proper adjustment from the start.

On an older off-road vehicle, final ride height depends not only on the lift kit itself, but also on spring condition, bushing wear, vehicle load, and previous modifications. With an adjustable track bar, the installer can set the axle position directly on the vehicle instead of working around a fixed-length part.

Can I keep the old Panhard rod if its bushings are still good?

Yes, if the vehicle stays at factory ride height and the rear axle is already positioned correctly.

After a suspension lift, however, the issue is not only bushing condition. The factory bar length cannot be adjusted. Even a good original Panhard rod may not allow the rear axle to sit in the correct position once ride height has changed.

Should the Panhard bar be adjusted before or after installing the wheels?

It is best to adjust it after the lift kit and the wheels that will be used permanently are installed.

This allows the installer to check the real position of the body, axle, and wheel clearance in the arches. Adjustment during an unfinished setup may require another correction after final assembly.

Can the bushings be replaced separately?

Yes. This TAIKO Panhard bar uses replaceable bushings, so the complete bar does not need to be replaced when only the rubber elements are worn.

For maintenance, use NAB-078, NAB-079, or equivalent replacement bushings.
