Adjustable Rear Panhard Bar for Mitsubishi Delica 1994-2007

Keep your lifted Delica aligned and stable when the road gets rough.

The Mitsubishi Delica L400 is often upgraded for extra ground clearance, larger tires, and more confidence on poor roads, forest tracks, gravel routes, and off-road trips. But after a suspension lift, the rear axle can shift sideways because the factory fixed-length track bar was designed for standard ride height.

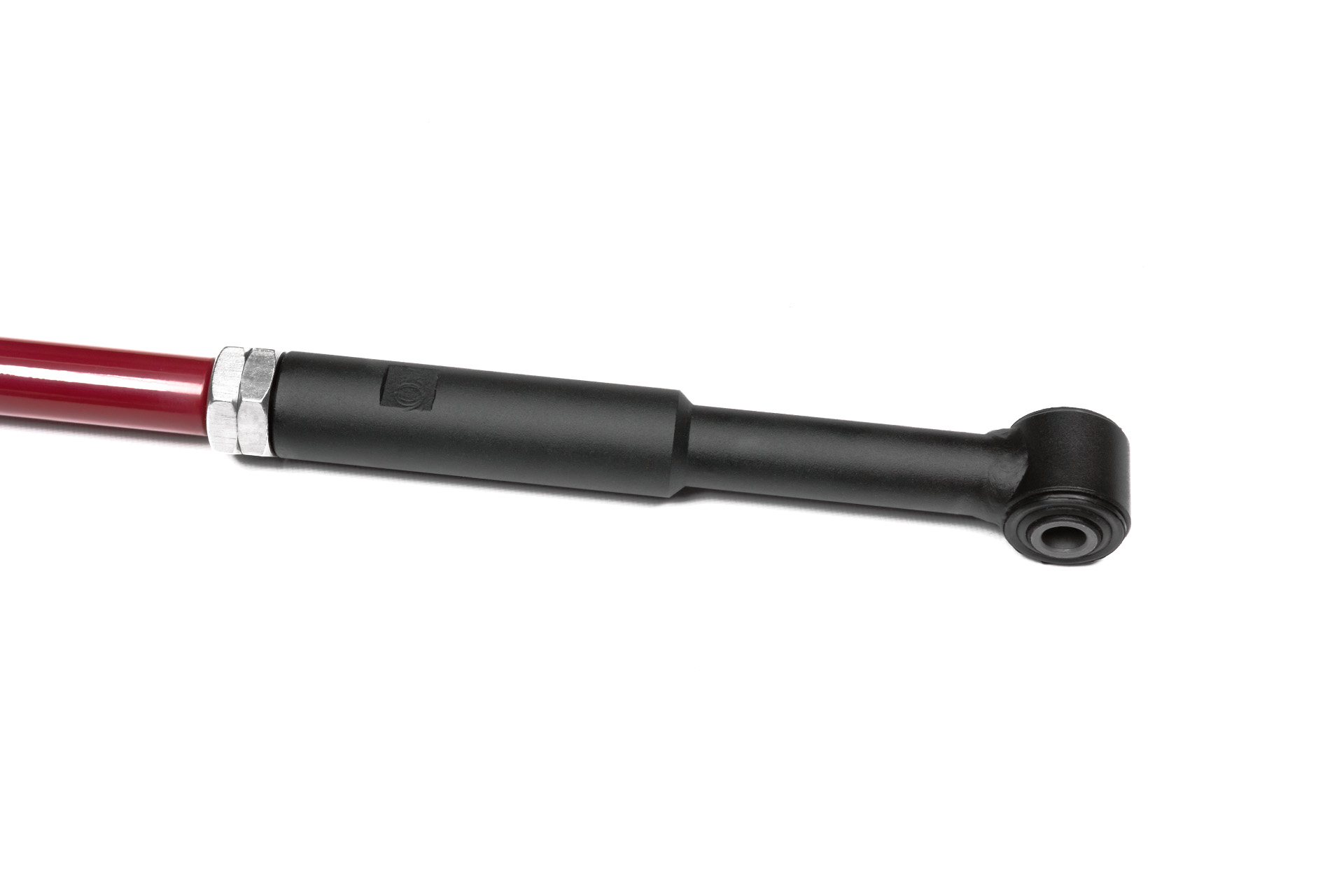

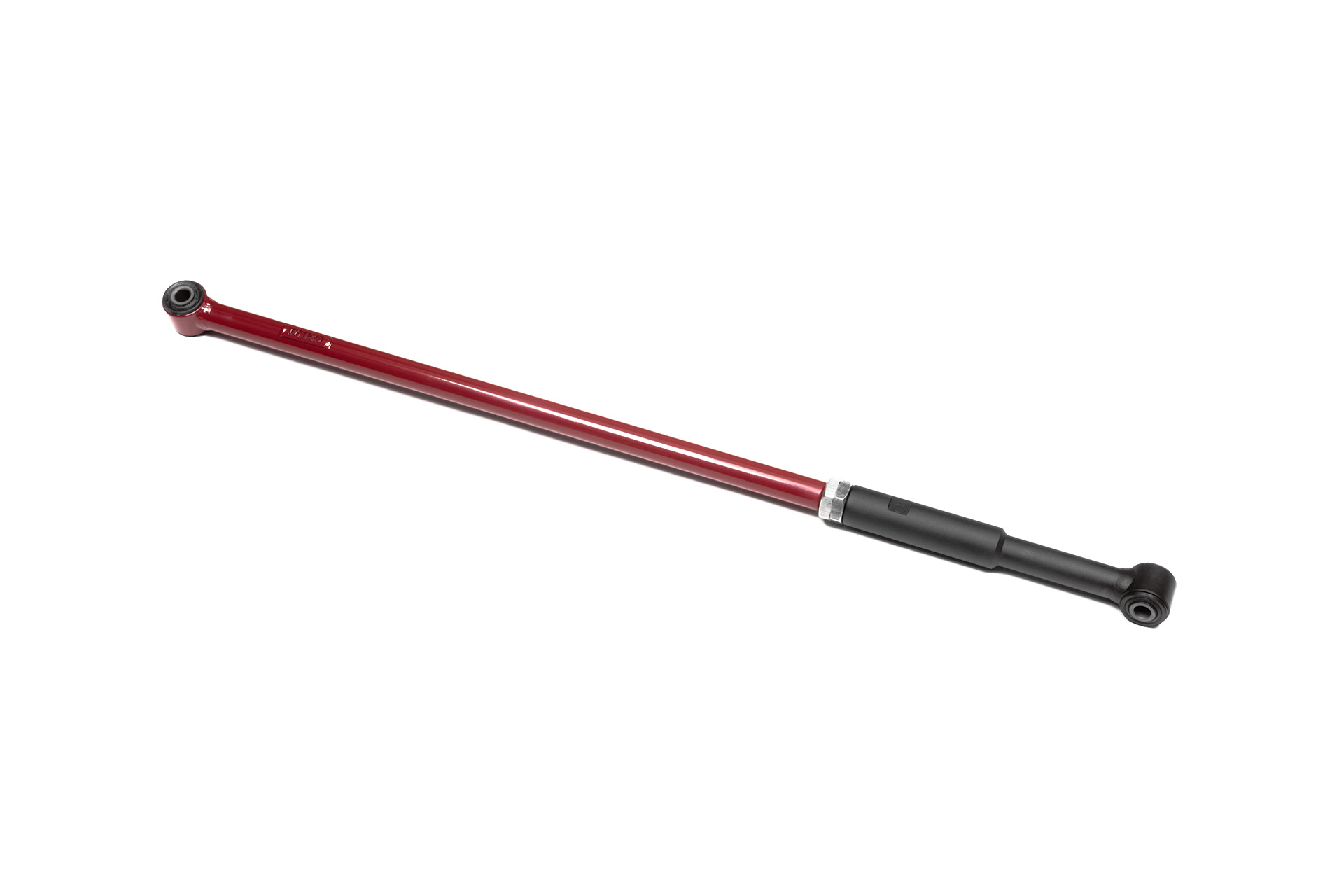

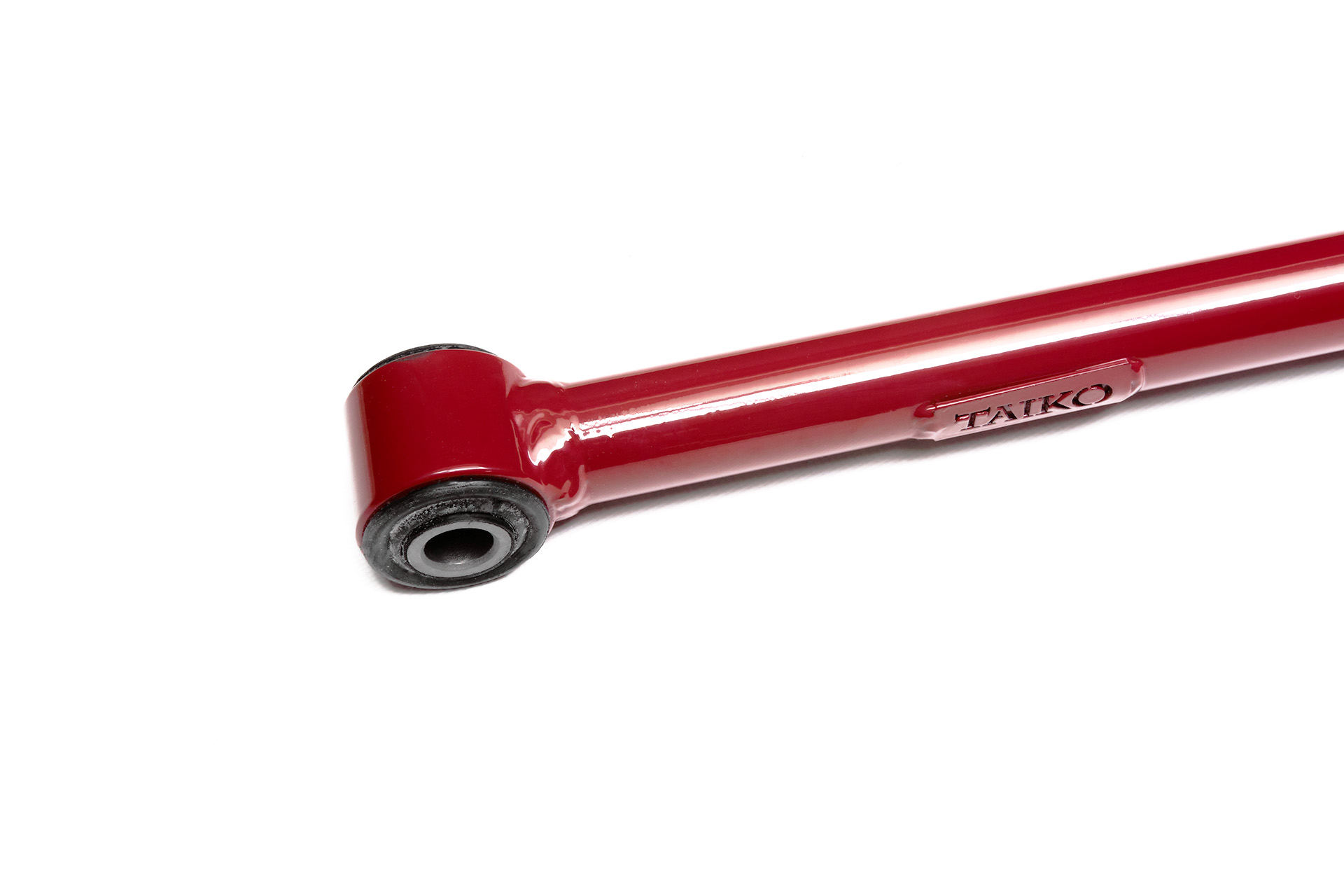

This rear adjustable Panhard bar allows the installer to correct that axle offset by changing the bar length. Once adjusted, the rear axle can be positioned closer to the center of the vehicle, helping the suspension work more correctly after a lift kit installation.

The TAIKO rear Panhard bar is especially useful for Delica owners who use the vehicle for work, travel, camping, and long-distance trips with passengers, luggage, tools, or expedition equipment. Under real load, the suspension needs more than extra height – it also needs proper rear axle alignment.

For Mitsubishi Delica L400 1994–2007 suspension tuning, an adjustable track bar is a practical setup component. It helps correct rear axle position after changes to springs, shocks, lift height, or wheel size, supporting more consistent handling on highways, rough roads, and off-road terrain.

This rear Panhard rod is made for owners who want their lifted Delica to feel properly set up, not just higher.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: TSL000068
Application: Mitsubishi Delica 1994-2007 4th generation
Package size: –
Package weight: 6.7 kg
Mounting kit: uses OEM bolts

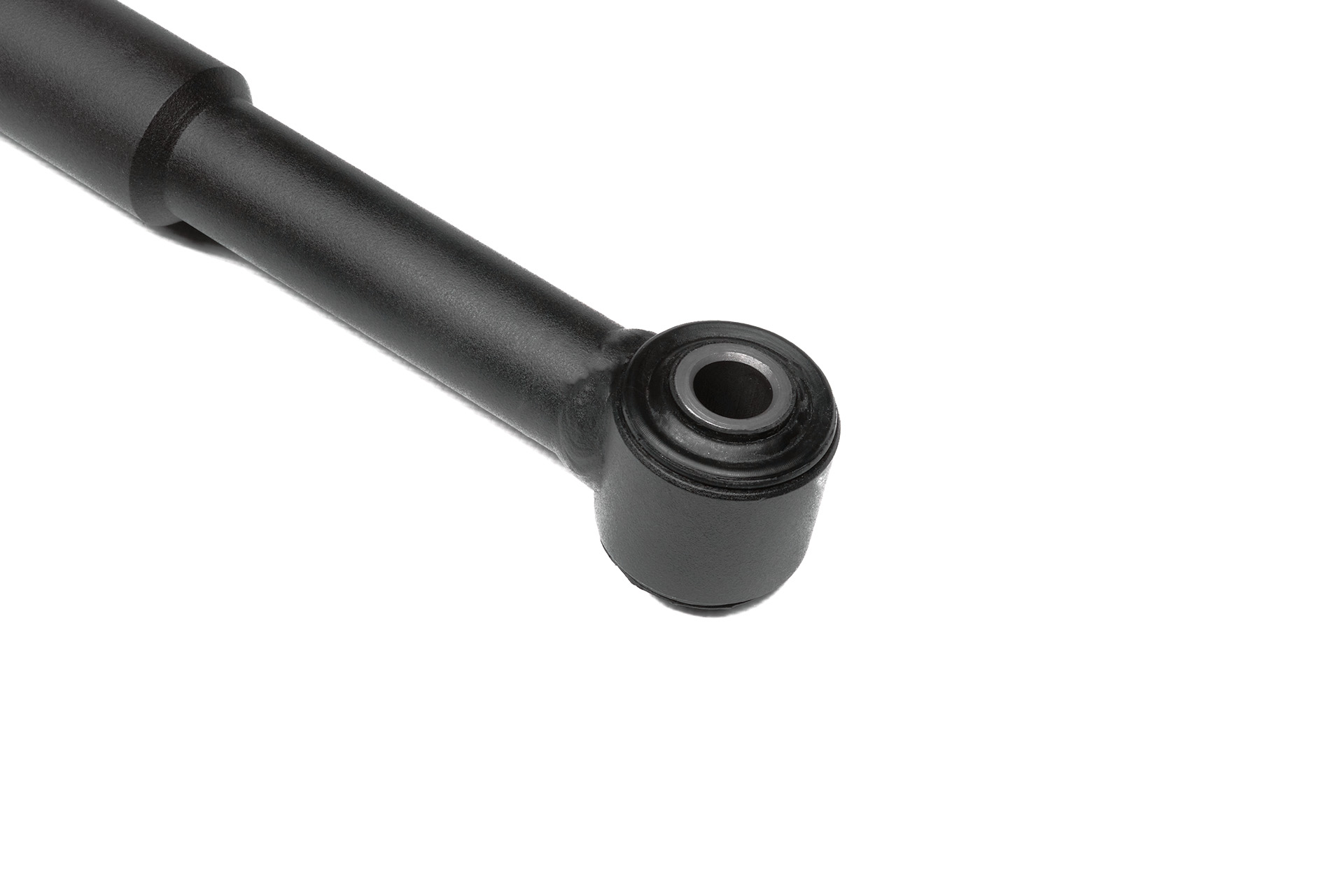

Features of the complete set: The set includes an adjustable Panhard rod with pressed-in silent blocks and product passport
Installation method: fully bolt on
Replacement parts: BH23097 silent block and analogues
Adjustment range: up to 90 mm

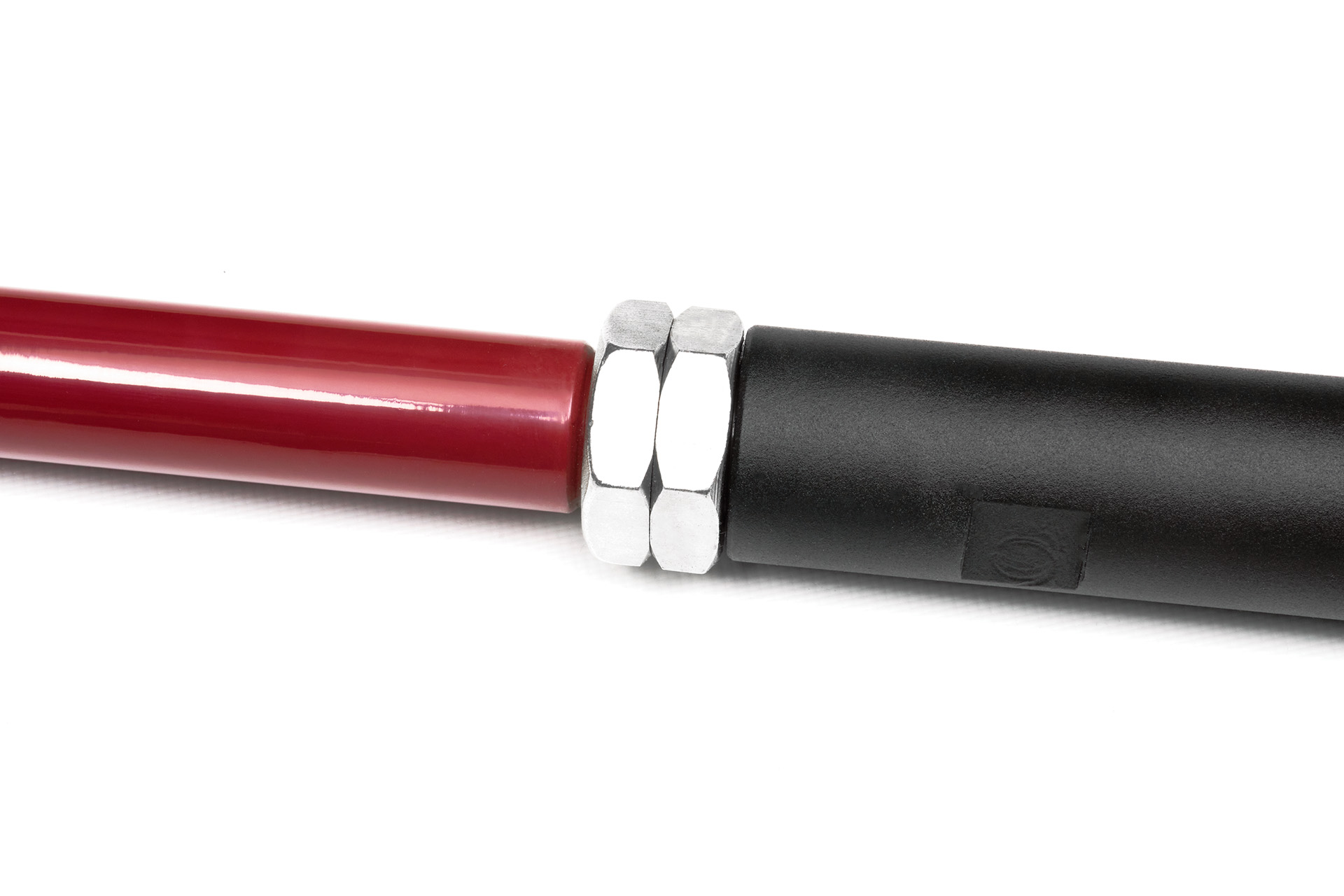

Adjustment method: threaded adjustment with lock nut fixation
Suspension lift compatibility: up to 4 inches. Compatibility with a higher lift depends on mounting geometry, rod length, and joint operating angles.

TECH SPECS:

Color: Black and red powder coating finish
Material: D48 steel rod A 516-55

FAQ

Will this Panhard bar fit the Mitsubishi Delica L400?

Yes. This TAIKO rear adjustable Panhard bar is designed for the Mitsubishi Delica L400 1994–2007, fourth generation.

It is installed on the rear suspension as a replacement for the factory fixed-length track bar.

Why does the rear axle shift after lifting a Delica?

When the suspension is lifted, the height difference between the Panhard bar mounting points changes. The factory bar keeps the same length, but it now works at a different angle.

As a result, the rear axle can move sideways in relation to the body. An adjustable Panhard bar allows the installer to correct this offset after the lift.

Should the rear axle position be checked after installing a lift kit?

Yes. The axle position should be checked after the vehicle is back on its wheels and sitting under its own weight.

On a lift, the rear suspension may not sit the same way it does in real driving position. Final inspection and adjustment should be done on level ground after all suspension components are installed.

Should the Panhard bar be adjusted immediately or after a short break-in period?

Initial adjustment should be done right after the suspension lift is installed.

A second check is useful after a short break-in period, once the springs, bushings, and other suspension components have settled into their working position.

What suspension lift height is this track bar designed for?

The TAIKO Panhard bar is designed for suspension lifts up to 4 inches.

For higher lift setups, fitment should be checked separately. Mounting geometry, required bar length, and joint operating angles may vary depending on the full suspension setup.

Can the bushings be replaced separately?

Yes. The bushings in the TAIKO Panhard bar are serviceable and can be replaced separately, so you do not need to buy a complete new bar when only the bushings are worn.

For maintenance, use BH23097 bushings or equivalent alternatives.
