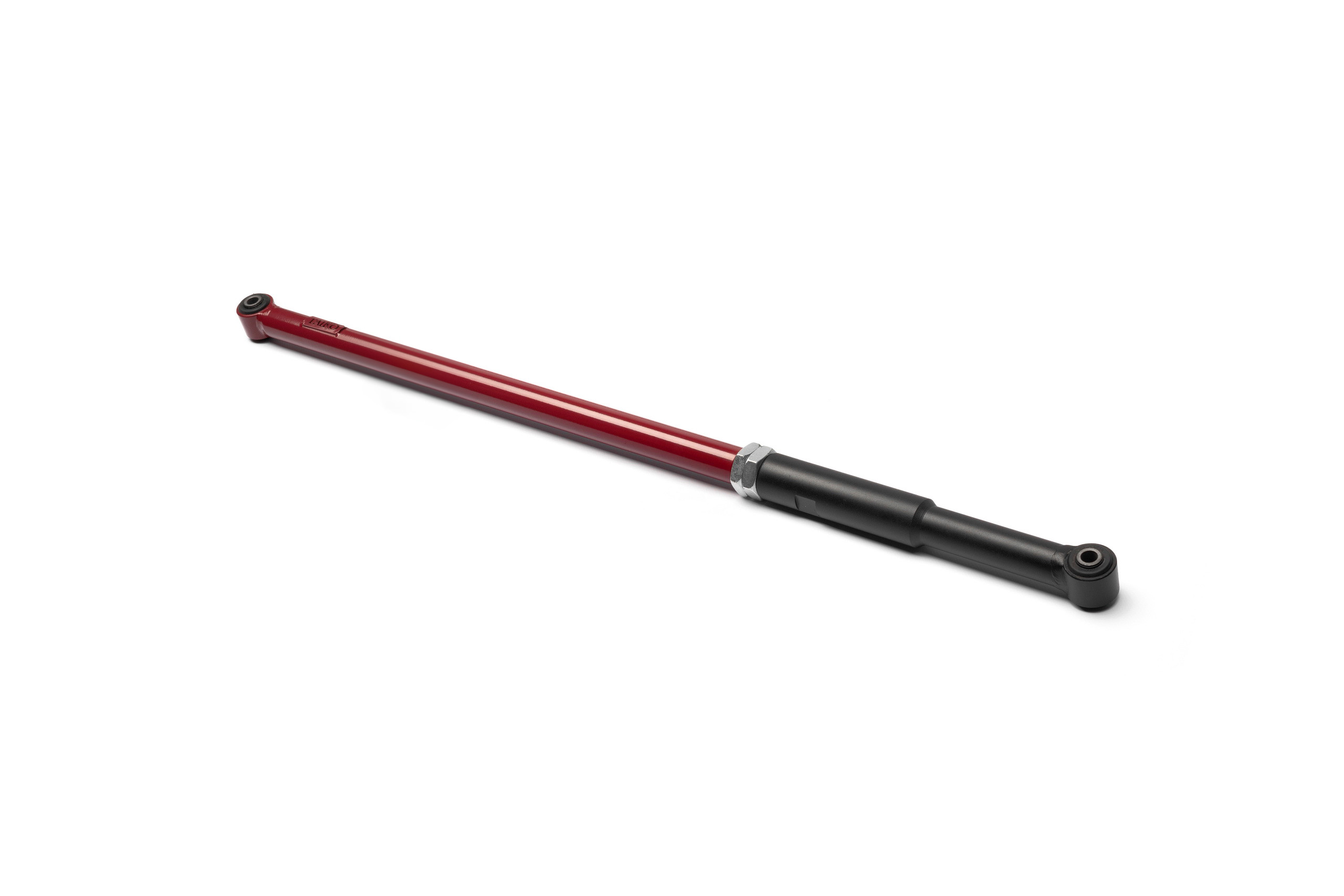

Adjustable Front Panhard Bar for Suzuki Jimny 1998-2018 right hand

Keep your lifted Jimny stable and predictable.

Suzuki Jimny is known for its simple design, low weight, and confident off-road capability. Many owners install a suspension lift to get more clearance for trails, rural roads, camping routes, and weekend travel. After this upgrade, however, the front axle can move away from its correct position in relation to the frame.

This front adjustable Panhard bar is designed for the right-hand-drive Suzuki Jimny 1998-2018. It helps compensate for axle offset after a lift and allows the front axle to be set more accurately for the new ride height.

The adjustable design makes it possible to restore a more correct suspension setup instead of leaving the axle shifted to one side. As a result, the vehicle can feel more balanced, more controlled, and easier to predict both on the road and off the pavement.

This adjustable track bar is a practical upgrade for Jimny owners who want more than extra ground clearance. It helps bring the front suspension back into a proper working position after geometry changes, making it a smart addition for outdoor trips, overland-style travel, and regular driving beyond paved roads.

PRODUCT DETAILS:

Laser cut for accuracy and precision
Manufacturer Part Number: TSL000037
Application: Suzuki Jimny 1998-2018, 3rd generation, right-hand drive
Package size: 107x10x10 cm
Package weight: 4.85 kg
Mounting kit: uses OEM bolts
Features of the complete set: adjustable Panhard rod with pressed-in silent blocks and product passport
Installation method: fully bolt-on
Replacement parts: Febest TAB-443 silent block and analogues
Adjustment range: up to 90 mm
Adjustment method: threaded adjustment with lock nut fixation
Suspension lift compatibility: up to 4 inches. Compatibility with a higher lift depends on mounting geometry, rod length, and joint operating angles.

TECH SPECS:

Color: black and red powder coating finish
Material: D40, D42 steel rod A 516-55

FAQ

Will this Panhard bar fit a right-hand-drive Suzuki Jimny 1998-2018?

Yes. This front Panhard bar is designed specifically for the third-generation right-hand-drive Suzuki Jimny 1998-2018.

What is the benefit of an adjustable front Panhard bar?

An adjustable Panhard bar allows you to set the bar length according to the new suspension height. After proper adjustment, the front axle can be positioned correctly in relation to the frame.

This helps the lift kit work as part of a properly set up suspension system, rather than just adding extra ride height without correcting the axle position.

What suspension lift height is this track bar designed for?

The TAIKO Panhard bar is designed for suspension lifts up to 4 inches.

Higher lift setups require a separate fitment check. The adjustment range, mounting geometry, and joint operating angles must all remain suitable for the vehicle setup.

How is the Panhard bar length adjusted?

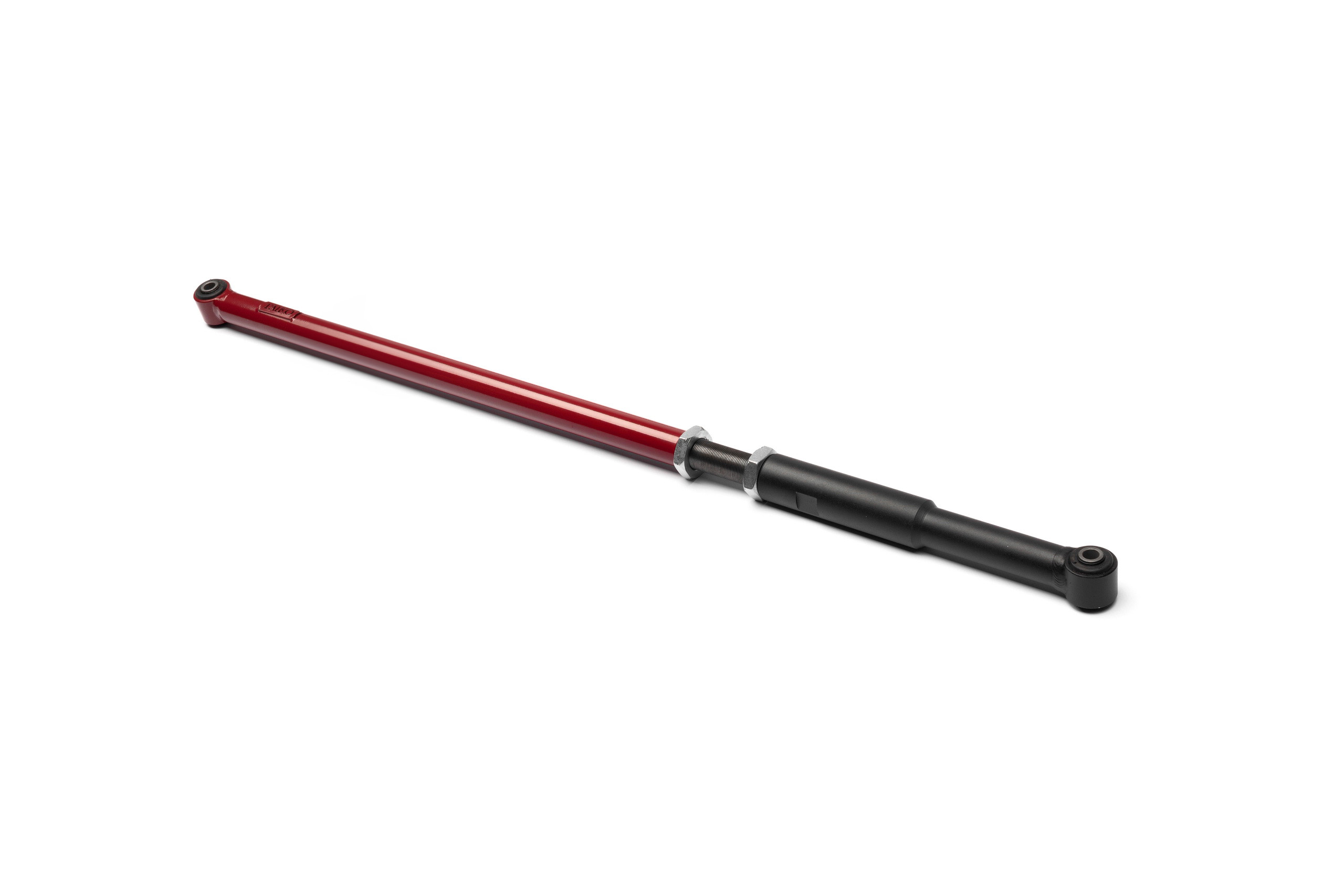

The length is adjusted through a threaded end. To set the required length, one end of the bar is disconnected, the threaded section is turned in or out, and the final position is secured with a lock nut.

This adjustment method provides a firm and reliable setup. It is also more secure than a sleeve-style adjuster, which may loosen under vibration during active off-road use.

Are any vehicle modifications required for installation?

No. The TAIKO Panhard bar is a bolt-on replacement. It installs into the factory mounting points using the original bolts.

The package includes the Panhard bar with pre-pressed bushings and a product passport.

What should I do if the bushings wear out over time?

The bushings in the TAIKO Panhard bar can be replaced separately. For maintenance, use Febest TAB-443 bushings or equivalent alternatives.

This means you do not need to replace the complete adjustable track bar when only the bushings are worn.
